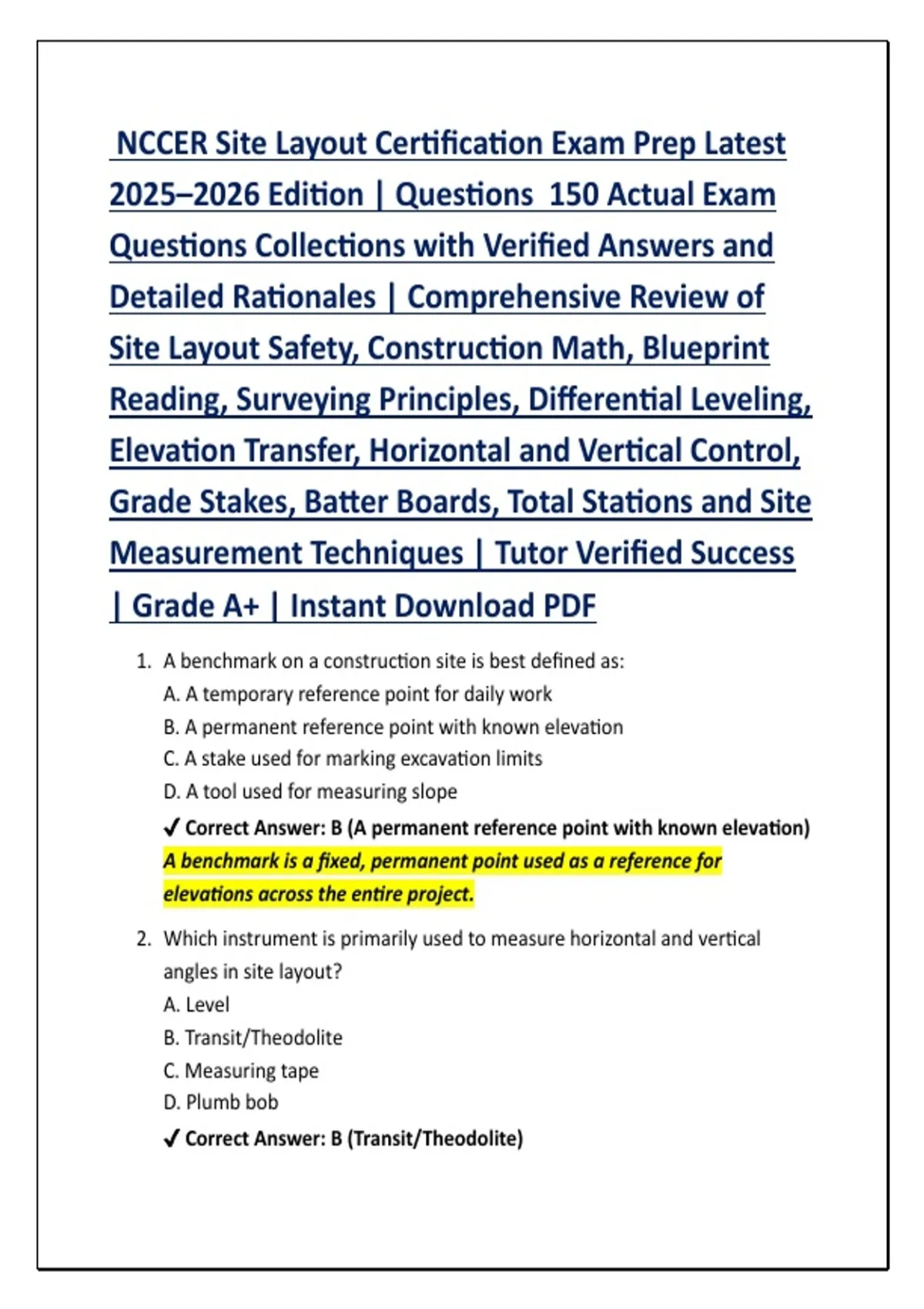

NCCER Site Layout Certification Exam Prep Latest
2025–2026 Edition | Questions 150 Actual Exam
Questions Collections with Verified Answers and
Detailed Rationales | Comprehensive Review of
Site Layout Safety, Construction Math, Blueprint
Reading, Surveying Principles, Differential Leveling,
Elevation Transfer, Horizontal and Vertical Control,
Grade Stakes, Batter Boards, Total Stations and Site
Measurement Techniques | Tutor Verified Success
| Grade A+ | Instant Download PDF
1. A benchmark on a construction site is best defined as:
A. A temporary reference point for daily work
B. A permanent reference point with known elevation
C. A stake used for marking excavation limits
D. A tool used for measuring slope
✔ Correct Answer: B (A permanent reference point with known elevation)
A benchmark is a fixed, permanent point used as a reference for
elevations across the entire project.
2. Which instrument is primarily used to measure horizontal and vertical
angles in site layout?
A. Level
B. Transit/Theodolite
C. Measuring tape
D. Plumb bob
✔ Correct Answer: B (Transit/Theodolite)
, A transit or theodolite is specifically designed to measure angles for
accurate layout work.
3. When setting grade stakes, the top of the stake typically represents:
A. Existing ground elevation
B. Proposed finished elevation
C. Excavation depth only
D. Benchmark elevation
✔ Correct Answer: B (Proposed finished elevation)
Grade stakes indicate the desired final elevation to guide construction
operations.
4. A 3-4-5 triangle is used in layout to:
A. Measure slope
B. Establish a right angle
C. Determine elevation
D. Mark property lines
✔ Correct Answer: B (Establish a right angle)
The 3-4-5 rule is a basic geometric method to create a precise 90-degree
angle.
5. Which tool ensures a vertical reference line?
A. Tape measure
B. Level rod
C. Plumb bob
D. Transit
✔ Correct Answer: C (Plumb bob)
A plumb bob uses gravity to establish a true vertical line.
6. In site layout, “cut” refers to:
A. Adding material
B. Removing soil
C. Measuring elevation
D. Compacting soil
, ✔ Correct Answer: B (Removing soil)
Cut indicates excavation required to reach design grade.
7. “Fill” in site layout means:
A. Removing excess soil
B. Adding soil to raise elevation
C. Measuring slope
D. Compacting subgrade
✔ Correct Answer: B (Adding soil to raise elevation)
Fill refers to placing material to achieve the required elevation.
8. A level instrument is used to:
A. Measure distance
B. Measure elevation differences
C. Measure angles
D. Mark boundaries
✔ Correct Answer: B (Measure elevation differences)
Levels determine height differences between points on a site.
9. Which is most accurate for long-distance measurements?
A. Folding rule
B. Steel tape
C. Laser distance meter
D. Wooden ruler
✔ Correct Answer: C (Laser distance meter)
Laser devices provide high accuracy over long distances with minimal
error.
10.A hub stake is typically used to:
A. Mark finished grade
B. Provide a reference below grade
C. Indicate property corners
D. Hold string lines only
✔ Correct Answer: B (Provide a reference below grade)
, Hub stakes are driven flush or below ground to serve as stable reference
points.
11.What is the primary purpose of batter boards?
A. Support excavation walls
B. Establish building lines
C. Measure elevation
D. Compact soil
✔ Correct Answer: B (Establish building lines)
Batter boards hold string lines to define building layout boundaries.
12.Which term describes the horizontal distance between two points?
A. Elevation
B. Grade
C. Offset
D. Slope
✔ Correct Answer: C (Offset)
Offset refers to horizontal measurement from a reference line.
13.A contour line on a site plan represents:
A. Property boundary
B. Equal elevation points
C. Utility lines
D. Road alignment
✔ Correct Answer: B (Equal elevation points)
Contour lines connect points of identical elevation.
14.The main purpose of a site plan is to:
A. Show structural details
B. Provide layout and location of features
C. Show electrical wiring
D. Estimate material costs
✔ Correct Answer: B (Provide layout and location of features)
Site plans guide placement of structures and site features.
2025–2026 Edition | Questions 150 Actual Exam
Questions Collections with Verified Answers and
Detailed Rationales | Comprehensive Review of
Site Layout Safety, Construction Math, Blueprint
Reading, Surveying Principles, Differential Leveling,
Elevation Transfer, Horizontal and Vertical Control,
Grade Stakes, Batter Boards, Total Stations and Site
Measurement Techniques | Tutor Verified Success
| Grade A+ | Instant Download PDF
1. A benchmark on a construction site is best defined as:
A. A temporary reference point for daily work
B. A permanent reference point with known elevation
C. A stake used for marking excavation limits
D. A tool used for measuring slope
✔ Correct Answer: B (A permanent reference point with known elevation)
A benchmark is a fixed, permanent point used as a reference for
elevations across the entire project.
2. Which instrument is primarily used to measure horizontal and vertical
angles in site layout?
A. Level
B. Transit/Theodolite
C. Measuring tape
D. Plumb bob
✔ Correct Answer: B (Transit/Theodolite)
, A transit or theodolite is specifically designed to measure angles for
accurate layout work.
3. When setting grade stakes, the top of the stake typically represents:
A. Existing ground elevation
B. Proposed finished elevation
C. Excavation depth only
D. Benchmark elevation
✔ Correct Answer: B (Proposed finished elevation)
Grade stakes indicate the desired final elevation to guide construction
operations.
4. A 3-4-5 triangle is used in layout to:
A. Measure slope
B. Establish a right angle
C. Determine elevation
D. Mark property lines
✔ Correct Answer: B (Establish a right angle)
The 3-4-5 rule is a basic geometric method to create a precise 90-degree
angle.
5. Which tool ensures a vertical reference line?
A. Tape measure
B. Level rod
C. Plumb bob
D. Transit
✔ Correct Answer: C (Plumb bob)
A plumb bob uses gravity to establish a true vertical line.
6. In site layout, “cut” refers to:
A. Adding material
B. Removing soil
C. Measuring elevation
D. Compacting soil
, ✔ Correct Answer: B (Removing soil)
Cut indicates excavation required to reach design grade.
7. “Fill” in site layout means:
A. Removing excess soil
B. Adding soil to raise elevation
C. Measuring slope
D. Compacting subgrade
✔ Correct Answer: B (Adding soil to raise elevation)
Fill refers to placing material to achieve the required elevation.
8. A level instrument is used to:
A. Measure distance
B. Measure elevation differences
C. Measure angles
D. Mark boundaries
✔ Correct Answer: B (Measure elevation differences)
Levels determine height differences between points on a site.
9. Which is most accurate for long-distance measurements?
A. Folding rule
B. Steel tape
C. Laser distance meter
D. Wooden ruler
✔ Correct Answer: C (Laser distance meter)
Laser devices provide high accuracy over long distances with minimal
error.
10.A hub stake is typically used to:
A. Mark finished grade
B. Provide a reference below grade
C. Indicate property corners
D. Hold string lines only
✔ Correct Answer: B (Provide a reference below grade)
, Hub stakes are driven flush or below ground to serve as stable reference
points.
11.What is the primary purpose of batter boards?
A. Support excavation walls
B. Establish building lines
C. Measure elevation
D. Compact soil
✔ Correct Answer: B (Establish building lines)
Batter boards hold string lines to define building layout boundaries.
12.Which term describes the horizontal distance between two points?
A. Elevation
B. Grade
C. Offset
D. Slope
✔ Correct Answer: C (Offset)
Offset refers to horizontal measurement from a reference line.
13.A contour line on a site plan represents:
A. Property boundary
B. Equal elevation points
C. Utility lines
D. Road alignment
✔ Correct Answer: B (Equal elevation points)
Contour lines connect points of identical elevation.
14.The main purpose of a site plan is to:
A. Show structural details
B. Provide layout and location of features
C. Show electrical wiring
D. Estimate material costs
✔ Correct Answer: B (Provide layout and location of features)
Site plans guide placement of structures and site features.
