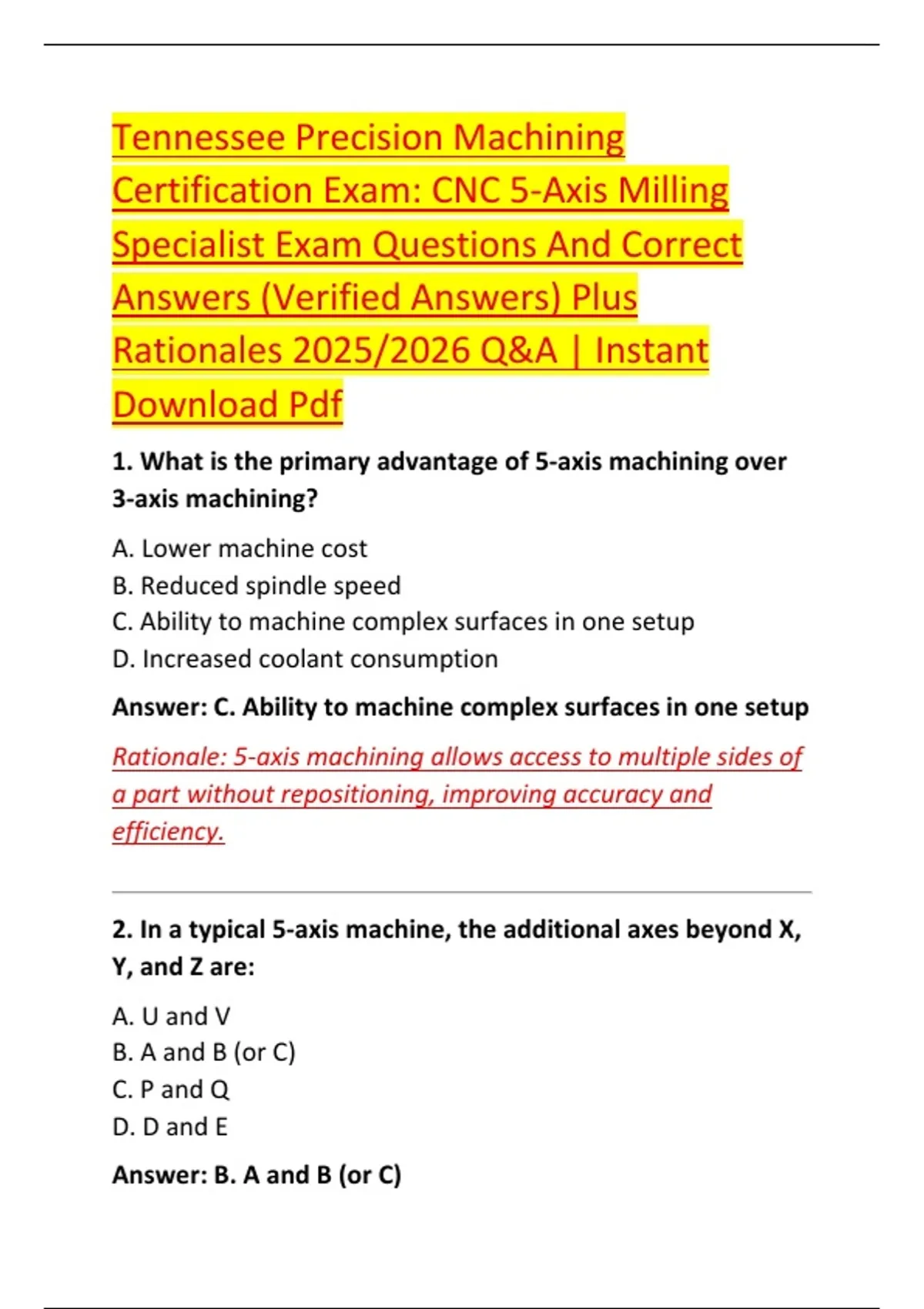

Tennessee Precision Machining
Certification Exam: CNC 5-Axis Milling
Specialist Exam Questions And Correct
Answers (Verified Answers) Plus
Rationales 2025/2026 Q&A | Instant
Download Pdf
1. What is the primary advantage of 5-axis machining over
3-axis machining?
A. Lower machine cost
B. Reduced spindle speed
C. Ability to machine complex surfaces in one setup
D. Increased coolant consumption
Answer: C. Ability to machine complex surfaces in one setup
Rationale: 5-axis machining allows access to multiple sides of
a part without repositioning, improving accuracy and
efficiency.
2. In a typical 5-axis machine, the additional axes beyond X,
Y, and Z are:
A. U and V
B. A and B (or C)
C. P and Q
D. D and E
Answer: B. A and B (or C)
,Rationale: Rotary axes are commonly designated A, B, and C
and rotate about X, Y, and Z respectively.
3. The A-axis rotates around which linear axis?
A. Y-axis
B. Z-axis
C. X-axis
D. W-axis
Answer: C. X-axis
Rationale: By convention, the A-axis rotates around the X-
axis.
4. Which component is most critical for maintaining
positional accuracy during 5-axis machining?
A. Coolant nozzle
B. Rotary axis calibration
C. Chip conveyor
D. Work light
Answer: B. Rotary axis calibration
Rationale: Accurate calibration ensures coordinated
movement between linear and rotary axes.
5. What does RTCP stand for?
A. Rotary Tool Control Process
B. Real-Time Cutting Program
,C. Rotation Tool Center Point
D. Rapid Tool Change Position
Answer: C. Rotation Tool Center Point
Rationale: RTCP keeps the tool tip at the programmed
location while rotary axes move.
6. Which workholding method is commonly used for 5-axis
machining?
A. Large angle plate only
B. Tombstone fixture
C. Low-profile vise or trunnion fixture
D. Magnetic chuck only
Answer: C. Low-profile vise or trunnion fixture
Rationale: Low-profile fixtures reduce interference during
rotary movement.
7. Collision avoidance is especially important in 5-axis
machining because:
A. Feed rates are lower
B. Rotary movements create additional interference risks
C. Tool lengths are shorter
D. Machines use less coolant
Answer: B. Rotary movements create additional
interference risks
, Rationale: Simultaneous motion can create unexpected
collisions involving the spindle, tool, or fixture.
8. What is a trunnion table?
A. Fixed machine base
B. Rotary fixture supporting part rotation and tilt
C. Coolant delivery system
D. Tool magazine type
Answer: B. Rotary fixture supporting part rotation and tilt
Rationale: Trunnions provide multiple rotary axes for
positioning the workpiece.
9. Which software feature is essential for verifying a 5-axis
toolpath?
A. Spreadsheet calculator
B. CAM simulation
C. Text editor
D. ERP software
Answer: B. CAM simulation
Rationale: Simulation helps identify collisions, gouges, and
axis limit issues.
10. Simultaneous 5-axis machining means:
A. Five spindles cut at once
B. All five machine axes move together during cutting
