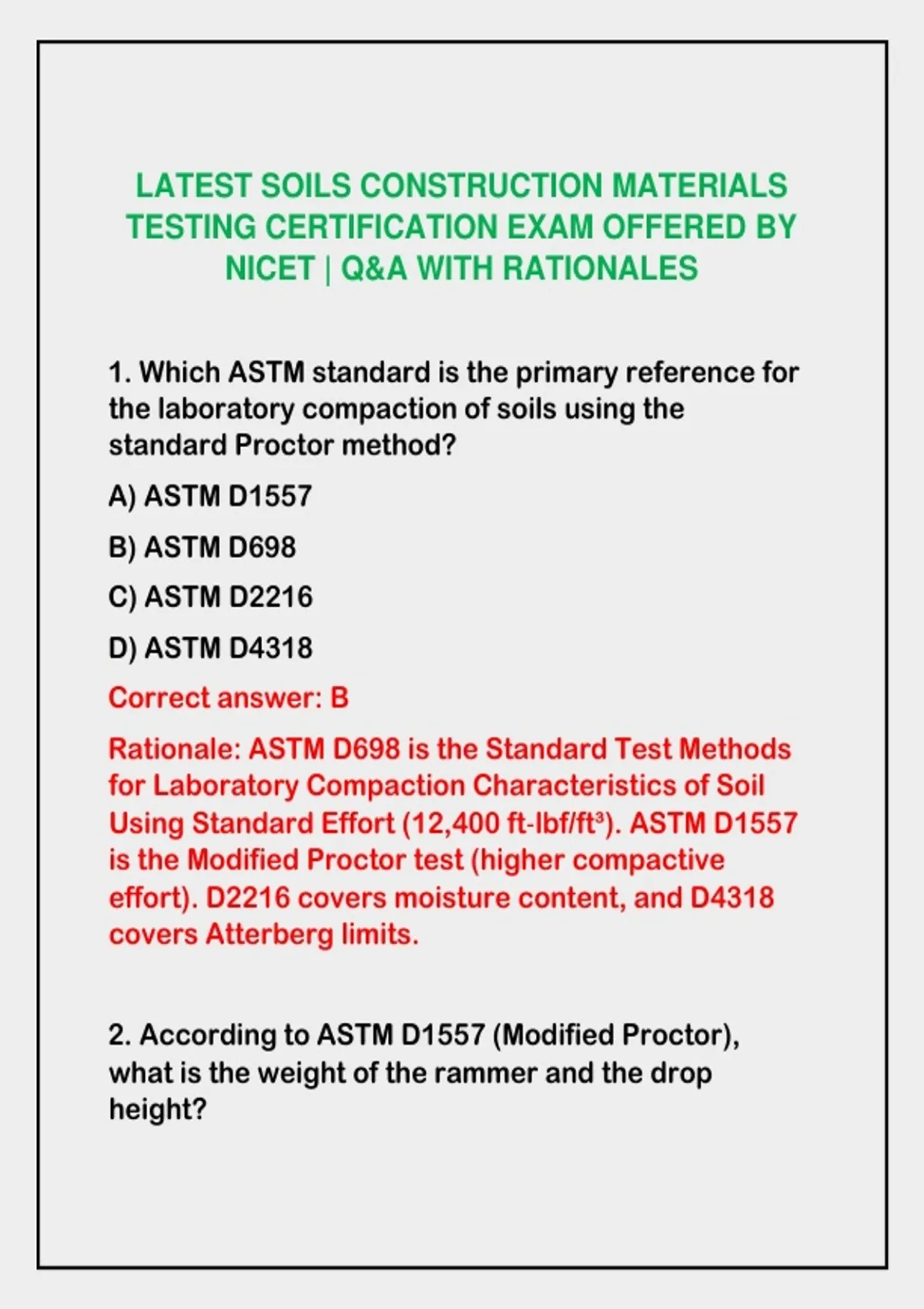

LATEST SOILS CONSTRUCTION MATERIALS
TESTING CERTIFICATION EXAM OFFERED BY
NICET | Q&A WITH RATIONALES
1. Which ASTM standard is the primary reference for
the laboratory compaction of soils using the
standard Proctor method?
A) ASTM D1557
B) ASTM D698
C) ASTM D2216
D) ASTM D4318
Correct answer: B
Rationale: ASTM D698 is the Standard Test Methods
for Laboratory Compaction Characteristics of Soil
Using Standard Effort (12,400 ft‑lbf/ft³). ASTM D1557
is the Modified Proctor test (higher compactive
effort). D2216 covers moisture content, and D4318
covers Atterberg limits.
2. According to ASTM D1557 (Modified Proctor),
what is the weight of the rammer and the drop
height?
,A) 5.5 lb (2.5 kg), 12 in (305 mm)
B) 10 lb (4.5 kg), 18 in (457 mm)
C) 5.5 lb (2.5 kg), 18 in (457 mm)
D) 10 lb (4.5 kg), 12 in (305 mm)
Correct answer: B
Rationale: ASTM D1557 uses a 10 lb (4.5 kg) rammer
dropped from a height of 18 in (457 mm). ASTM D698
uses a 5.5 lb (2.5 kg) rammer dropped from 12 in
(305 mm).
3. How many layers are required for the standard
Proctor test (ASTM D698, Method A)?
A) 3 layers
B) 4 layers
C) 5 layers
D) 6 layers
Correct answer: A
Rationale: ASTM D698, Method A (Standard Proctor)
requires 3 layers, each compacted with 25 blows.
The Modified Proctor test (D1557) generally uses 5
layers.
,4. During a standard Proctor test, you notice that the
soil begins to displace laterally and "sponges"
without increasing density. What is the most likely
cause?
A) The soil is too dry
B) The soil is above optimum moisture content (wet
side)
C) The compaction effort is too low
D) The mould is not properly seated
Correct answer: B
Rationale: On the wet side of optimum, excess pore
water pressure builds up, preventing soil particles
from densifying, causing the soil to "sponge" under
the rammer blows.
5. What is the primary purpose of the
"zero‑air‑voids" curve when plotting a Proctor
compaction curve?
A) To show the theoretical maximum density at 100%
saturation
B) To indicate the optimum moisture content
C) To display the field compaction energy
, D) To identify the soil's liquid limit
Correct answer: A
Rationale: The zero‑air‑voids line represents the
theoretical maximum dry density at a given moisture
content if all air voids are eliminated and the soil is
fully saturated.
6. According to ASTM D2216, what is the standard
drying temperature for moisture content
determination of most soils?
A) 60°C ± 5°C (140°F ± 9°F)
B) 110°C ± 5°C (230°F ± 9°F)
C) 150°C ± 5°C (302°F ± 9°F)
D) 200°C ± 5°C (392°F ± 9°F)
Correct answer: B
Rationale: ASTM D2216 specifies drying at 110°C ±
5°C (230°F ± 9°F) for most soils. Organic soils may
require lower temperatures (about 60°C) to prevent
loss of organic matter.
7. A field technician uses a nuclear moisture‑density
gauge to measure the wet density of a compacted
