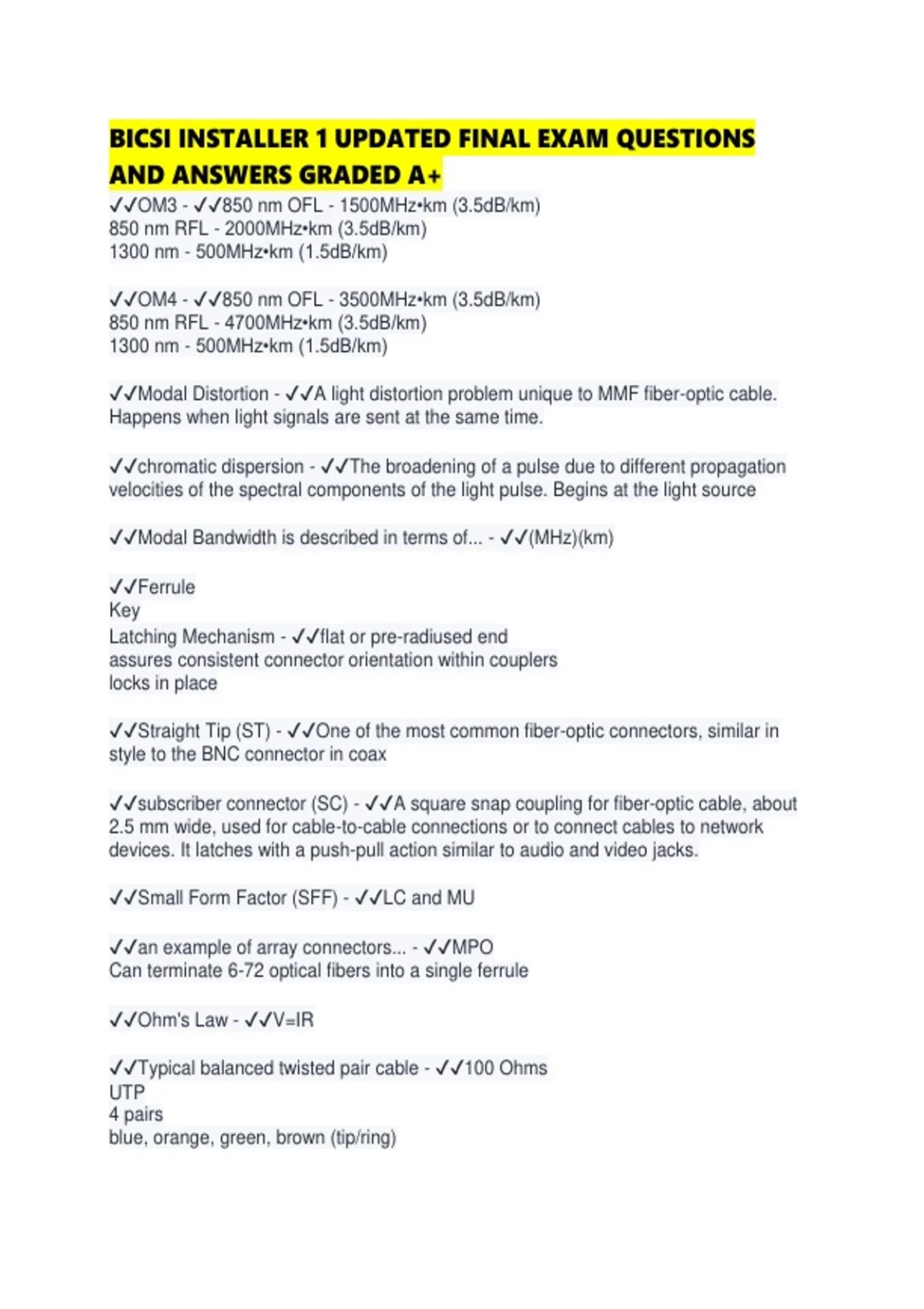

BICSI INSTALLER 1 UPDATED FINAL EXAM QUESTIONS
AND ANSWERS GRADED A+
✔✔OM3 - ✔✔850 nm OFL - 1500MHz•km (3.5dB/km)
850 nm RFL - 2000MHz•km (3.5dB/km)
1300 nm - 500MHz•km (1.5dB/km)
✔✔OM4 - ✔✔850 nm OFL - 3500MHz•km (3.5dB/km)
850 nm RFL - 4700MHz•km (3.5dB/km)
1300 nm - 500MHz•km (1.5dB/km)
✔✔Modal Distortion - ✔✔A light distortion problem unique to MMF fiber-optic cable.
Happens when light signals are sent at the same time.
✔✔chromatic dispersion - ✔✔The broadening of a pulse due to different propagation
velocities of the spectral components of the light pulse. Begins at the light source
✔✔Modal Bandwidth is described in terms of... - ✔✔(MHz)(km)
✔✔Ferrule
Key
Latching Mechanism - ✔✔flat or pre-radiused end
assures consistent connector orientation within couplers
locks in place
✔✔Straight Tip (ST) - ✔✔One of the most common fiber-optic connectors, similar in
style to the BNC connector in coax
✔✔subscriber connector (SC) - ✔✔A square snap coupling for fiber-optic cable, about
2.5 mm wide, used for cable-to-cable connections or to connect cables to network
devices. It latches with a push-pull action similar to audio and video jacks.
✔✔Small Form Factor (SFF) - ✔✔LC and MU
✔✔an example of array connectors... - ✔✔MPO
Can terminate 6-72 optical fibers into a single ferrule
✔✔Ohm's Law - ✔✔V=IR
✔✔Typical balanced twisted pair cable - ✔✔100 Ohms
UTP
4 pairs
blue, orange, green, brown (tip/ring)
, ✔✔8P8C -B pinout - ✔✔White/orange
Orange
White/green
Blue
White/blue
Green
White/brown
Brown
✔✔Simplex - ✔✔A type of transmission in which signals may travel in only one direction
over a medium.
✔✔Half Duplex - ✔✔Communication between two devices whereby transmission takes
place in only one direction at a time.
✔✔Full Duplex - ✔✔Communication that happens in two directions at the same time.
✔✔1 cycle
60 cycles
1000 cycles
1 million cycles
1 billion cycles
1 trillion cycles - ✔✔1 Hz
60 Hz
1 KHz
1 MHz
1 GHz
1 THz
✔✔Voltage, current, and amperes - ✔✔P(Power)=V(voltage) x I(Current)
✔✔What is bandwidth expressed in - ✔✔analog frequencies (0Hz to 1MHz)
✔✔AWG - ✔✔Smaller number - bigger wire
Higher number - smaller wire
✔✔A balanced twisted pair has... - ✔✔a nominal characteristic impedance of 100 Ohms
✔✔A unbalanced coaxial cable has... - ✔✔a nominal characteristic impedance of 75
Ohms
✔✔Category 3
Category 5e
Category 6
Category 6A
AND ANSWERS GRADED A+
✔✔OM3 - ✔✔850 nm OFL - 1500MHz•km (3.5dB/km)
850 nm RFL - 2000MHz•km (3.5dB/km)
1300 nm - 500MHz•km (1.5dB/km)
✔✔OM4 - ✔✔850 nm OFL - 3500MHz•km (3.5dB/km)
850 nm RFL - 4700MHz•km (3.5dB/km)
1300 nm - 500MHz•km (1.5dB/km)
✔✔Modal Distortion - ✔✔A light distortion problem unique to MMF fiber-optic cable.
Happens when light signals are sent at the same time.
✔✔chromatic dispersion - ✔✔The broadening of a pulse due to different propagation
velocities of the spectral components of the light pulse. Begins at the light source
✔✔Modal Bandwidth is described in terms of... - ✔✔(MHz)(km)
✔✔Ferrule
Key
Latching Mechanism - ✔✔flat or pre-radiused end
assures consistent connector orientation within couplers
locks in place
✔✔Straight Tip (ST) - ✔✔One of the most common fiber-optic connectors, similar in
style to the BNC connector in coax
✔✔subscriber connector (SC) - ✔✔A square snap coupling for fiber-optic cable, about
2.5 mm wide, used for cable-to-cable connections or to connect cables to network
devices. It latches with a push-pull action similar to audio and video jacks.
✔✔Small Form Factor (SFF) - ✔✔LC and MU
✔✔an example of array connectors... - ✔✔MPO
Can terminate 6-72 optical fibers into a single ferrule
✔✔Ohm's Law - ✔✔V=IR
✔✔Typical balanced twisted pair cable - ✔✔100 Ohms
UTP
4 pairs
blue, orange, green, brown (tip/ring)
, ✔✔8P8C -B pinout - ✔✔White/orange
Orange
White/green
Blue
White/blue
Green
White/brown
Brown
✔✔Simplex - ✔✔A type of transmission in which signals may travel in only one direction
over a medium.
✔✔Half Duplex - ✔✔Communication between two devices whereby transmission takes
place in only one direction at a time.
✔✔Full Duplex - ✔✔Communication that happens in two directions at the same time.
✔✔1 cycle
60 cycles
1000 cycles
1 million cycles
1 billion cycles
1 trillion cycles - ✔✔1 Hz
60 Hz
1 KHz
1 MHz
1 GHz
1 THz
✔✔Voltage, current, and amperes - ✔✔P(Power)=V(voltage) x I(Current)
✔✔What is bandwidth expressed in - ✔✔analog frequencies (0Hz to 1MHz)
✔✔AWG - ✔✔Smaller number - bigger wire
Higher number - smaller wire
✔✔A balanced twisted pair has... - ✔✔a nominal characteristic impedance of 100 Ohms
✔✔A unbalanced coaxial cable has... - ✔✔a nominal characteristic impedance of 75
Ohms
✔✔Category 3
Category 5e
Category 6
Category 6A
