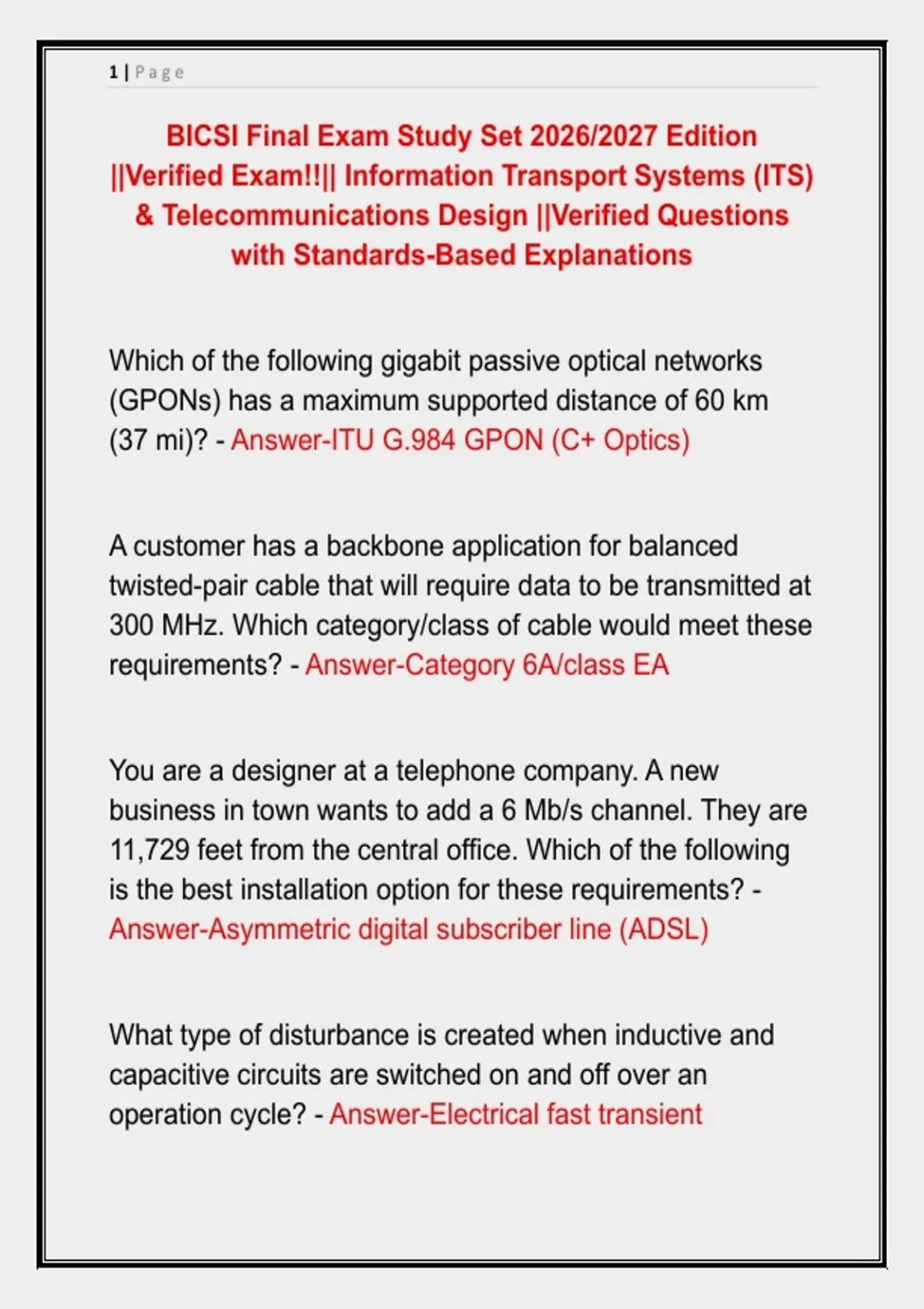

BICSI Final Exam Study Set 2026/2027 Edition
||Verified Exam!!|| Information Transport Systems (ITS)
& Telecommunications Design ||Verified Questions
with Standards-Based Explanations
Which of the following gigabit passive optical networks
(GPONs) has a maximum supported distance of 60 km
(37 mi)? - Answer-ITU G.984 GPON (C+ Optics)
A customer has a backbone application for balanced
twisted-pair cable that will require data to be transmitted at
300 MHz. Which category/class of cable would meet these
requirements? - Answer-Category 6A/class EA
You are a designer at a telephone company. A new
business in town wants to add a 6 Mb/s channel. They are
11,729 feet from the central office. Which of the following
is the best installation option for these requirements? -
Answer-Asymmetric digital subscriber line (ADSL)
What type of disturbance is created when inductive and
capacitive circuits are switched on and off over an
operation cycle? - Answer-Electrical fast transient
,2|Page
What type of energy has a frequency higher than the
visible light? - Answer-Ultraviolet
An installation team is running a 600-pair category 3 cable
from the first floor to the top floor of a twenty-story
building. The cable will be attached to a supporting strand
that has been anchored in a vertical shaft that runs the
entire pathway. What is the minimum number of steel
cable ties that should be used to attach the category 3
cable to the support strand? - Answer-60
A customer has 72 workstations that will be connected by
multiuser telecommunications outlet assemblies
(MUTOAs). What is the minimum number of MUTOAs that
will be needed to serve these work areas? - Answer-6
Which telecommunications administration class addresses
the needs of a campus, including its buildings and OSP
elements? - Answer-Class 3
A trading floor has a HC (FD) 80 meters (262 ft) away from
a MUTOA. What is the maximum length of the work area
cord? The work area cords are 24 AWG [0.51 mm (0.020
in)]. - Answer-13 m (43 ft)
, 3|Page
What is the center wavelength of a vertical cavity surface
emitting laser (VCSEL)? - Answer-850 nm and 1300 nm
What type of fluctuation is caused by a decrease in the
nominal voltage or current for more than 3600 cycles (one
minute)? - Answer-Undervoltage
What is the maximum recommended length for a
telecommunications bonding conductor (TBC)? - Answer-9
m (30ft)
You have been hired as a consultant for a property
management firm that would like to implement a
telecommunications administration system in one of its
properties. The property in question is a twelve-story office
building with multiple tenants. Which class of
administration is best suited for this type of infrastructure?
- Answer-Class 2
Which device is used to manage resources that are
shared by users and administrators on a network? -
Answer-Server
