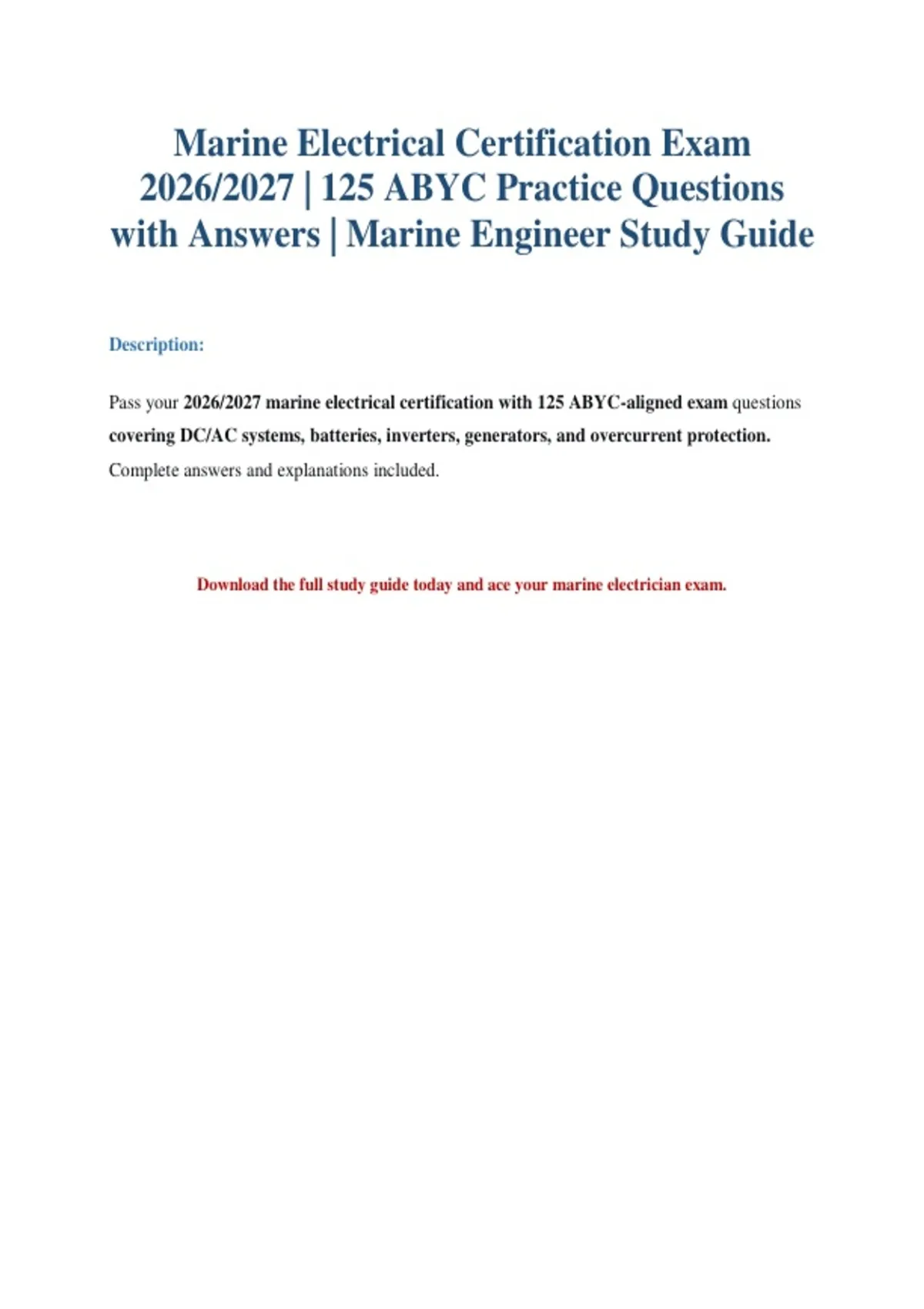

Marine Electrical Certification Exam
2026/2027 | 125 ABYC Practice Questions
with Answers | Marine Engineer Study Guide
Description:
Pass your 2026/2027 marine electrical certification with 125 ABYC-aligned exam questions
covering DC/AC systems, batteries, inverters, generators, and overcurrent protection.
Complete answers and explanations included.
Download the full study guide today and ace your marine electrician exam.
, Marine Electrical Exam 2026/2027: ABYC Practice Test
This examination covers essential knowledge areas for marine electrical systems, including DC
and AC power distribution, battery systems, charging sources, overcurrent protection, and
industry standards compliance. Questions are derived from current ABYC standards and reflect
best practices for the 2026/2027 certification cycle.
Section 1: Wiring Support and Conductor Requirements
Question 1
Wire bundles shall be supported at regular intervals not exceeding how many inches?
A) 12 inches
B) 16 inches
C) 18 inches
D) 24 inches
Answer: C) 18 inches
Explanation: ABYC E-11 requires wire bundles to be supported every 18 inches to prevent
sagging, chafing, and mechanical stress on conductors and terminations.
Question 2
What type of clamps must be used for supporting wire bundles routed over engines and
machinery?
A) Plastic zip ties
B) Nylon snap mounts
C) Insulated metallic hanger clamps
D) Rubber-lined conduit straps
Answer: C) Insulated metallic hanger clamps
Explanation: Insulated metallic hanger clamps provide mechanical strength and resist heat
degradation in engine room environments. Standard nylon ties may fail under high temperatures.
,Question 3
What is the maximum allowed unsupported cable length for battery cables?
A) 24 inches
B) 30 inches
C) 36 inches
D) 48 inches
Answer: C) 36 inches
Explanation: Battery cables must be supported at minimum intervals of 36 inches to prevent
mechanical stress and potential short circuits from vibration-induced movement.
Question 4
What is the smallest gauge wire permitted for unsheathed wire runs through a boat?
A) 18 AWG
B) 16 AWG
C) 14 AWG
D) 12 AWG
Answer: B) 16 AWG
Explanation: ABYC E-11 specifies 16 AWG as the minimum conductor size for unsheathed
wiring to ensure adequate mechanical strength and durability in the marine environment.
Question 5
When multiple DC conductors are bundled together for what distance must ampacity be derated?
A) 12 inches
B) 18 inches
C) 24 inches
D) 36 inches
Answer: C) 24 inches
, Explanation: ABYC E-11.14.1.3.7.1 requires ampacity derating when conductors are bundled
for distances exceeding 24 inches due to reduced heat dissipation.
Section 2: Connectors, Terminals, and Mechanical Integrity
Question 6
What tensile force must a 10-gauge crimp connector withstand for one minute?
A) 20 lbs
B) 30 lbs
C) 40 lbs
D) 50 lbs
Answer: C) 40 lbs
Explanation: Per ABYC E-11 Table XV, a 10 AWG crimp connector must withstand a 40-
pound pull test for one minute without separation.
Question 7
What is the pull-test requirement for DC plug and receptacle connections?
A) 4 lbs for 1 minute
B) 6 lbs for 1 minute
C) 8 lbs for 1 minute
D) 10 lbs for 1 minute
Answer: B) 6 lbs for 1 minute
Explanation: ABYC E-11.13.2.3 requires DC plugs and receptacles to withstand a 6-pound pull
test for one minute without disconnecting.
