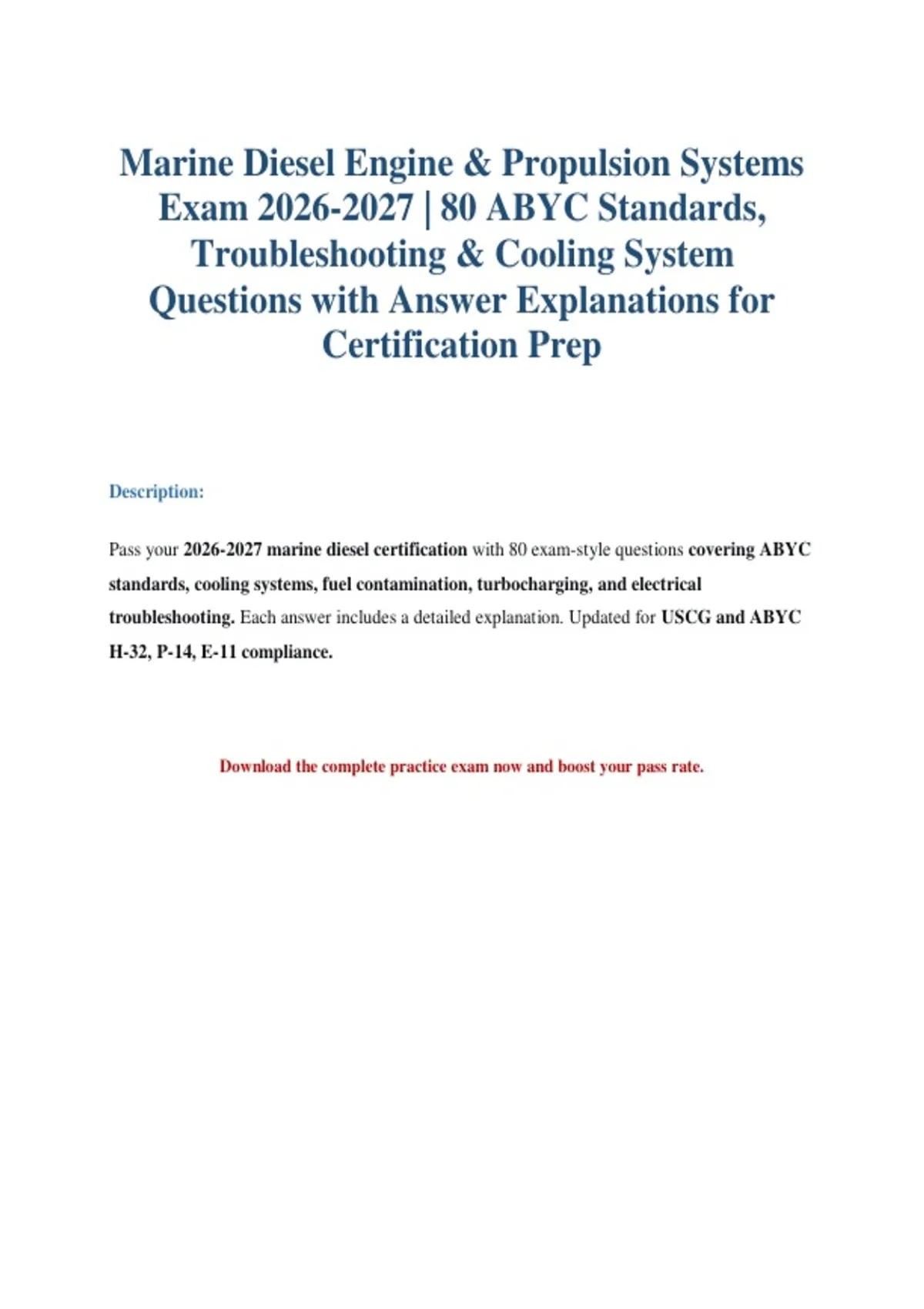

Marine Diesel Engine & Propulsion Systems
Exam 2026-2027 | 80 ABYC Standards,
Troubleshooting & Cooling System
Questions with Answer Explanations for
Certification Prep
Description:
Pass your 2026-2027 marine diesel certification with 80 exam-style questions covering ABYC
standards, cooling systems, fuel contamination, turbocharging, and electrical
troubleshooting. Each answer includes a detailed explanation. Updated for USCG and ABYC
H-32, P-14, E-11 compliance.
Download the complete practice exam now and boost your pass rate.
, Marine Diesel Exam 2026-2027 | 80 ABYC Questions & Answers
Section 1: ABYC Standards and Hull Ventilation
Question 1
Based on current ABYC standards, what is the minimum required spacing between hull vent
openings and fuel fill or vent fittings?
A. 9 inches
B. 15 inches
C. 24 inches
D. 36 inches
Answer: B. 15 inches
Explanation: The ABYC standards specify a minimum separation of 15 inches between hull
ventilation openings and fuel fill or vent fittings to prevent fuel vapors from being drawn into the
boat's ventilation system.
Question 2
According to ABYC E-11, what is the maximum cold cranking amps (CCA) rating permitted
before a battery disconnect switch becomes mandatory?
A. 1200 CCA
B. 800 CCA
C. 650 CCA
D. 500 CCA
Answer: B. 800 CCA
Explanation: ABYC E-11 requires a battery disconnect switch when the total CCA rating of
batteries installed exceeds 800 CCA, as this threshold presents increased electrical safety risks.
,Question 3
Based on ABYC P-4 Table V, what is the acceptable clearance range between a cutless bearing
and a shaft measuring 1.5 inches in diameter?
A. .001-.003 inches
B. .004-.009 inches
C. .005-.008 inches
D. .006-.010 inches
Answer: B. .004-.009 inches
Explanation: ABYC P-4 provides specific shaft-to-bearing clearance guidelines. For a 1.5-inch
diameter shaft, the acceptable clearance range is 0.004 to 0.009 inches to ensure proper
lubrication and prevent excessive wear.
Question 4
Which ABYC standard explicitly states that neither powered nor natural ventilation is required
on a diesel-powered vessel?
A. H-2
B. H-24
C. H-32
D. H-33
Answer: C. H-32
Explanation: ABYC H-32 addresses diesel engine installations and specifies that diesel fuel
systems have lower volatility than gasoline systems, thus ventilation requirements differ from
gasoline-powered vessels.
Question 5
Which of the following fuel indicator types is permitted under ABYC standard H-33?
A. Dip stick
B. Electronic sender
, C. Sight gauge
D. Both B and C
E. All of the above
Answer: E. All of the above
Explanation: ABYC H-33 permits multiple fuel level indication methods including dip sticks,
electronic senders, and sight gauges, provided they meet specific safety and installation
requirements.
Section 2: Diesel Engine Fundamentals and Thermodynamics
Question 6
The thermal efficiency of a diesel engine typically converts what percentage of total heat energy
into useful mechanical power?
A. 22%
B. 45%
C. 15%
D. 36%
Answer: D. 36%
Explanation: Modern diesel engines convert approximately 36% of fuel heat energy into usable
power. The remaining energy is lost through exhaust, cooling systems, and friction.
Question 7
What is the primary difference between the four-stroke cycle of a diesel engine compared to a
gasoline engine?
A. The diesel intake stroke only brings air into the cylinder
B. The compression ratio of the diesel engine is much lower than the same sized gasoline engine
C. Fuel gets atomized by the high heat with a diesel engine
D. Diesel fuel is more volatile than gasoline
