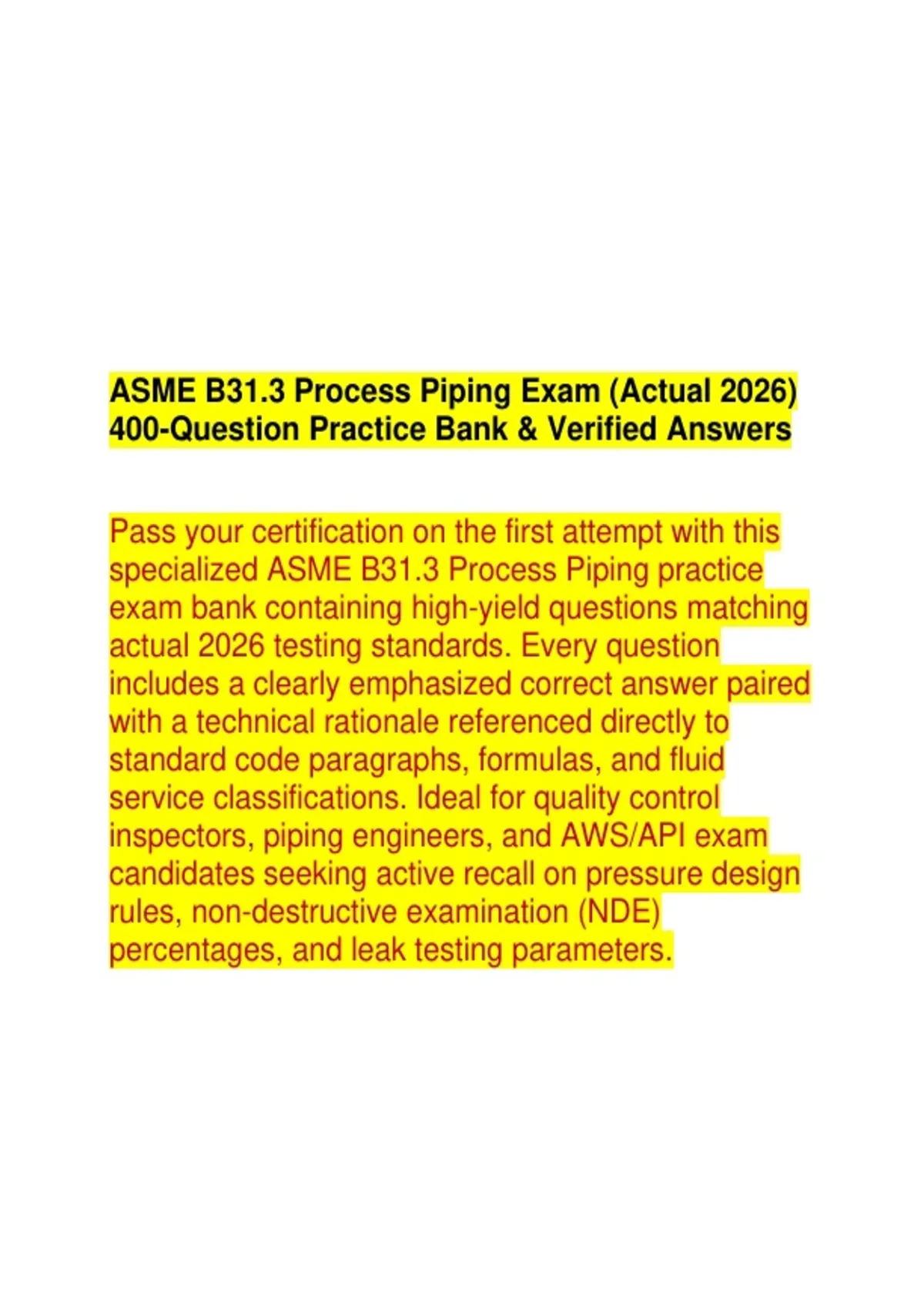

ASME B31.3 Process Piping Exam (Actual 2026)
400-Question Practice Bank & Verified Answers
Pass your certification on the first attempt with this
specialized ASME B31.3 Process Piping practice
exam bank containing high-yield questions matching
actual 2026 testing standards. Every question
includes a clearly emphasized correct answer paired
with a technical rationale referenced directly to
standard code paragraphs, formulas, and fluid
service classifications. Ideal for quality control
inspectors, piping engineers, and AWS/API exam
candidates seeking active recall on pressure design
rules, non-destructive examination (NDE)
percentages, and leak testing parameters.
,Question 1
According to ASME B31.3, which of the following fluid service classifications applies to
a fluid that is nonflammable, nontoxic, and not damaging to human tissues, where the
design gauge pressure does not exceed 150 psi and the design temperature is between
-29°C (-20°F) and 186°C (366°F)?
A) Category M Fluid Service
B) High Pressure Fluid Service
C) Normal Fluid Service
D) Category D Fluid Service
Answer: D
Rationale: Paragraph 300.2 defines Category D Fluid Service based on specific
low-hazard criteria: the fluid must be nonflammable, nontoxic, and non-damaging
to human tissues; the design gauge pressure must not exceed 1035 kPa (150 psi);
and the design temperature must be between -29°C (-20°F) and 186°C (366°F)
inclusive.
Question 2
When performing a hydrostatic leak test on a process piping system designed under
ASME B31.3, what is the minimum required test pressure at any point in the system?
A) 1.1 times the design pressure
B) 1.5 times the design pressure multiplied by the stress ratio
C) 1.25 times the design pressure multiplied by the stress ratio
D) 2.0 times the design pressure
Answer: B
Rationale: Paragraph 345.4.2 states that the hydrostatic test pressure at any point
in a metallic piping system shall be not less than 1.5 times the design pressure. If
the design temperature exceeds the test temperature, the pressure must be
multiplied by the ratio of the allowable stress at the test temperature to the
allowable stress at the design temperature (St/S).
Question 3
Under ASME B31.3 requirements for Normal Fluid Service, what is the minimum
percentage of circumferential butt welds that must be examined by random
radiography?
A) 5%
B) 10%
C) 20%
D) 100%
Answer: A
Rationale: Table 341.4.1 specifies the examination requirements for Normal Fluid
Service. It mandates visual examination of 100% of fabrication, along with
,random radiography or ultrasonic examination of at least 5% of circumferential
butt welds and miter groove welds.
Question 4
Which of the following inspection techniques is classified as a "severe cyclic conditions"
requirement for 100% of circumferential butt welds under ASME B31.3?
A) Magnetic Particle Examination (MT)
B) Liquid Penetrant Examination (PT)
C) Radiographic Examination (RT)
D) Ultrasonic Examination (UT) using a standard thickness gauge
Answer: C
Rationale: Paragraph 341.4.3 outlines examination requirements for Severe Cyclic
Conditions. It dictates that 100% of circumferential butt welds and miter groove
welds must be examined by radiography (RT) or ultrasonic examination (UT) to
ensure maximum volumetric verification under high fatigue loading.
Question 5
According to ASME B31.3, Chapter II, what is the nominal thickness safety factor or
"milling tolerance" that must typically be subtracted when calculating the minimum
required thickness (tm) of a brand-new straight pipe under internal pressure?
A) The manufacturing undertolerance specified in the pipe material standard.
B) Always exactly 12.5% of the outside diameter.
C) A fixed value of 0.05 inches for all metallic pipes.
D) No tolerance adjustment is required for new construction calculations.
Answer: A
Rationale: Paragraph 304.1.1 states that the minimum required thickness (tm)
includes the calculated pressure design thickness (t), plus mechanical
allowances (thread depth, etc.), plus corrosion/erosion allowances (c). To select
the nominal pipe thickness, the designer must account for the manufacturing
undertolerance (such as the standard 12.5% undertolerance found in ASTM
product specifications).
Question 6
Who holds the ultimate responsibility under ASME B31.3 for ensuring that all design,
construction, fabrication, examination, and testing specifications meet the requirements
of the code?
A) The Piping Designer
B) The Fabricator
C) The Owner of the piping installation
D) The Authorized Inspector
Answer: C
Rationale: Paragraph 300(b)(1) states clearly that the Owner of a piping
installation has overall responsibility for compliance with this Code, and for
, establishing the requirements for design, construction, examination, inspection,
and testing.
Question 7
Under ASME B31.3, when a pneumatic leak test is performed instead of a hydrostatic
test, what is the standard test pressure factor applied to the design pressure?
A) 1.5
B) 1.25
C) 1.1
D) 1.3
Answer: C
Rationale: Paragraph 345.5.4 specifies that the pneumatic test pressure shall be
110% (1.1 times) the design pressure. Pneumatic testing is kept lower than
hydrostatic testing due to the significantly higher stored energy and safety
hazards associated with compressed gas.
Question 8
Which of the following conditions represents a fluid service classification where a single
exposure to a very small quantity of a toxic fluid, caused by leakage, can produce
serious irreversible harm to persons on inhalation or skin contact?
A) Category D Fluid Service
B) High Purity Fluid Service
C) Category M Fluid Service
D) Elevated Temperature Fluid Service
Answer: C
Rationale: Paragraph 300.2 defines Category M Fluid Service as one in which the
fluid is highly toxic, and where a single exposure to a very small quantity of a
toxic fluid, caused by leakage, can produce serious irreversible harm to persons
on inhalation or skin contact, even when prompt restorative measures are taken.
Question 9
In the standard formula for determining the wall thickness of a straight pipe under
internal pressure, \(t = (P \times D) / (2 \times (S \times E \times W + P \times Y))\), what
does the coefficient "W" represent?
A) Joint quality factor
B) Weld joint strength reduction factor
C) Casting quality factor
D) Material stress factor
Answer: B
Rationale: Paragraph 302.3.5(e) introduces "W" as the weld joint strength
reduction factor. This factor accounts for the reduction in elevated-temperature
strength of weld metals compared to the base metal during long-term creep
exposure.
