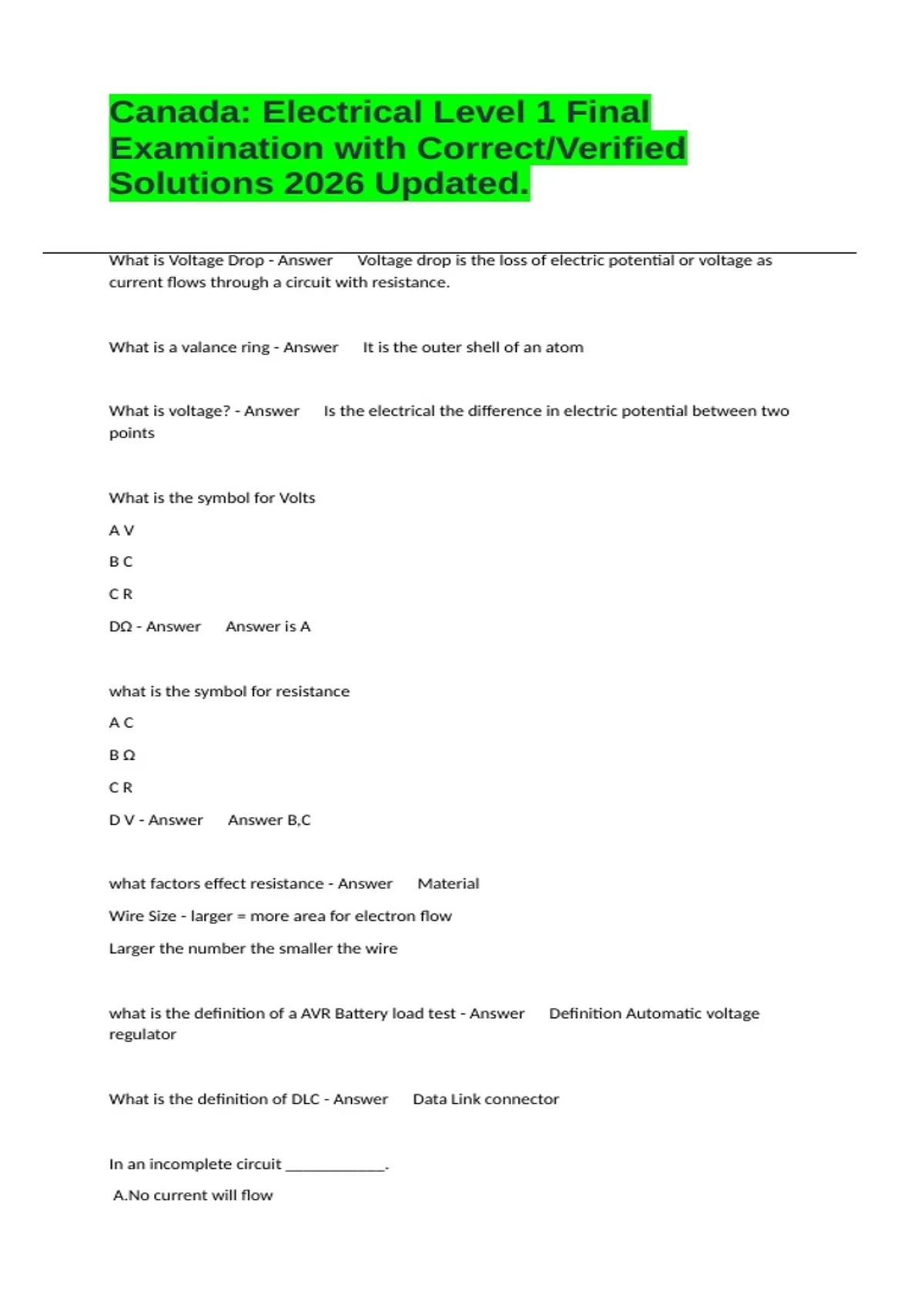

Canada: Electrical Level 1 Final
Examination with Correct/Verified
Solutions 2026 Updated.
What is Voltage Drop - Answer Voltage drop is the loss of electric potential or voltage as
current flows through a circuit with resistance.
What is a valance ring - Answer It is the outer shell of an atom
What is voltage? - Answer Is the electrical the difference in electric potential between two
points
What is the symbol for Volts
AV
BC
CR
DΩ - Answer Answer is A
what is the symbol for resistance
AC
BΩ
CR
D V - Answer Answer B,C
what factors effect resistance - Answer Material
Wire Size - larger = more area for electron flow
Larger the number the smaller the wire
what is the definition of a AVR Battery load test - Answer Definition Automatic voltage
regulator
What is the definition of DLC - Answer Data Link connector
In an incomplete circuit ___________.
A.No current will flow
,B.No voltage is present
C.Both A and B
D.Neither A nor B
Don't know - Answer A No current will flow
All the following are used as circuit protection EXCEPT:
A.
fuse
B.
relay
C.
circuit breaker
D.
fuse link - Answer B Relay
As additional branches are added to a a parallel circuit, total circuit resistance _______.
A.Increases
B.Remains the same
C.Decreases
D.None of these - Answer C Decreases
If there is voltage in a circuit, there must be electrons flowing through the circuit.
A.True
B.False - Answer B False
A shorted circuit ____________.
A.Could include an open circuit
B.Always causes the fuse to blow
C.Both A and B
D.Neither A nor B - Answer A Could include an open circuit
The vehicle's metal frame components are often acts as the ground in an electrical circuit to
complete the electrical path to the vehicle's battery.
A.True
B.False - Answer A True
, A circuit with a short to power may cause ____________.
A.Other circuits to malfunction
B.Improper operation of loads in the circuit
C.Both A and B
D.Neither A nor B - Answer C Both A and b
A circuit protection device such as a fuse, fuse link, or circuit breaker will open the circuit if
resistance values become too great.
A.True
B.False - Answer B False
The sum of currents in each branch of a parallel circuit will ________ total circuit current.
A.Equal
B.Be less than
C.Be more than
D.None of these - Answer A equal
An AGM battery differs from a conventional flooded battery in what way?
A.It does not contain electrolyte
B.Each cell has a voltage sensor
C.The electrolyte is absorbed into glass separator and will not spill
D.It does not contain lead - Answer C. The electrolyte is absorbed into glass separator and
will not spill
Which battery rating is expressed in minutes?
A.Reserve capacity
B.Cranking amperes
C.Battery voltage test
D.Cold-cranking amperes - Answer A. Reserve capacity
Sulfation of battery plates can cause _____.
A.
lower specific gravity
B.
