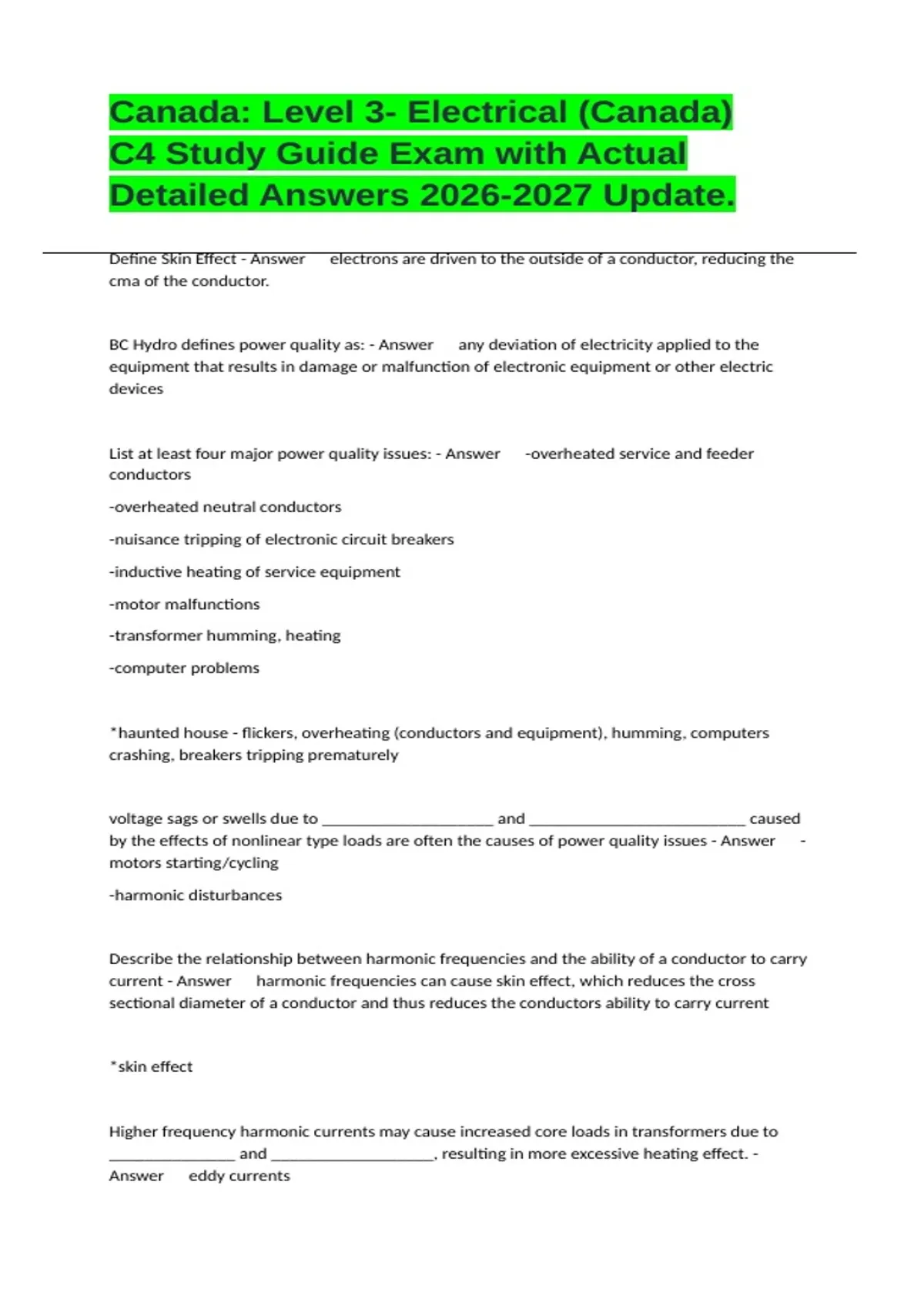

Canada: Level 3- Electrical (Canada)
C4 Study Guide Exam with Actual
Detailed Answers 2026-2027 Update.
Define Skin Effect - Answer electrons are driven to the outside of a conductor, reducing the
cma of the conductor.
BC Hydro defines power quality as: - Answer any deviation of electricity applied to the
equipment that results in damage or malfunction of electronic equipment or other electric
devices
List at least four major power quality issues: - Answer -overheated service and feeder
conductors
-overheated neutral conductors
-nuisance tripping of electronic circuit breakers
-inductive heating of service equipment
-motor malfunctions
-transformer humming, heating
-computer problems
*haunted house - flickers, overheating (conductors and equipment), humming, computers
crashing, breakers tripping prematurely
voltage sags or swells due to ___________________ and ________________________ caused
by the effects of nonlinear type loads are often the causes of power quality issues - Answer -
motors starting/cycling
-harmonic disturbances
Describe the relationship between harmonic frequencies and the ability of a conductor to carry
current - Answer harmonic frequencies can cause skin effect, which reduces the cross
sectional diameter of a conductor and thus reduces the conductors ability to carry current
*skin effect
Higher frequency harmonic currents may cause increased core loads in transformers due to
______________ and __________________, resulting in more excessive heating effect. -
Answer eddy currents
,hysteresis
List three major effects of voltage deviations on lighting - Answer -reduced lifespan
-change of intensity or output (voltage flickers)
-short deviations leading to lighting shutdown and long turn-on times
Many devices such as digital clocks and process control equipment often rely on the timing
regularity of the ________________________________ to maintain timing synchronization. -
Answer Sinusoidal waveform
What causes the neutral currents in an affected three-phase system to mathematically add
together, overloading the neutral conductor by causing more current to flow in the neutral
conductor than the phase conductors? - Answer harmonic disturbances (triplens)
in a balanced, three-phase system, what causes neutral currents to add together rather than
cancel each other out? - Answer Triplen harmonics
What is the effect of triplen harmonics on a balanced three phase system? - Answer causes
neutral currents to add together rather than cancel each other out, overloading the neutral
conductor by causing more current to flow in it than in the phase conductors.
*neutral currents add together = more current in neutral than phase
is the impact of a harmonic frequency greater in a larger or smaller diameter of wire? - Answer
the larger the diameter, the larger the impact
name two effects that are increased due to higher frequencies of harmonic waveforms. -
Answer hysteresis effects
eddy currents
how can higher frequencies of harmonic waveforms effect service equipment? - Answer -
induction heating
-panels can become mechanically resonant (vibration, buzzing sound)
How can harmonic frequencies effect electronic circuit breakers? - Answer electronic
breakers use solid-state devices that sense peak current values. Harmonic frequencies can cause
peak current values to distort, causing the breaker to trip prematurely.
* cause them to trip prematurely
, Where is Power quality found to be best? - Answer at the service entrance or PCC
(connection to utility) and deteriorates downstream through the distribution system.
What does PCC stand for? - Answer Point common coupling/connection
In many cases, the PCC is considered at the ____________________: - Answer metering
point, service entrance or facility transformer.
within an industrial point, the PCC is the point which is: - Answer accessible to both the utility
and the customer for direction measurement.
also the point "between the nonlinear load and other loads
For typical wire sizes found in distribution systems, the resistance at the _______th harmonic
may be two to _________ times greater than 50/60hz resistance. - Answer 25th
four
typically, what would be the best electrical source supply? - Answer a sinusoidal voltage
waveform with a constant amplitude and a constant frequency.
Most electrical equipment has a built in tolerance from _________ % to _________ % of its
nominal voltage. - Answer -10% to +5%
For voltages between 1000v and 50'000 v, the maximum voltage variation permitted is typically:
a) +5%
b) 6%
c) -10%
d) +-6% - Answer d) +-6%
The vast majority of power quality problems are actually related too: - Answer -installation
techniques causing wiring and grounding problems
What does Skin Effect reduce? - Answer current carrying capacity
How might harmonic distortion effect an electric motor? - Answer harmonic distortion in the
power supply may lead to
-decreased efficiency
