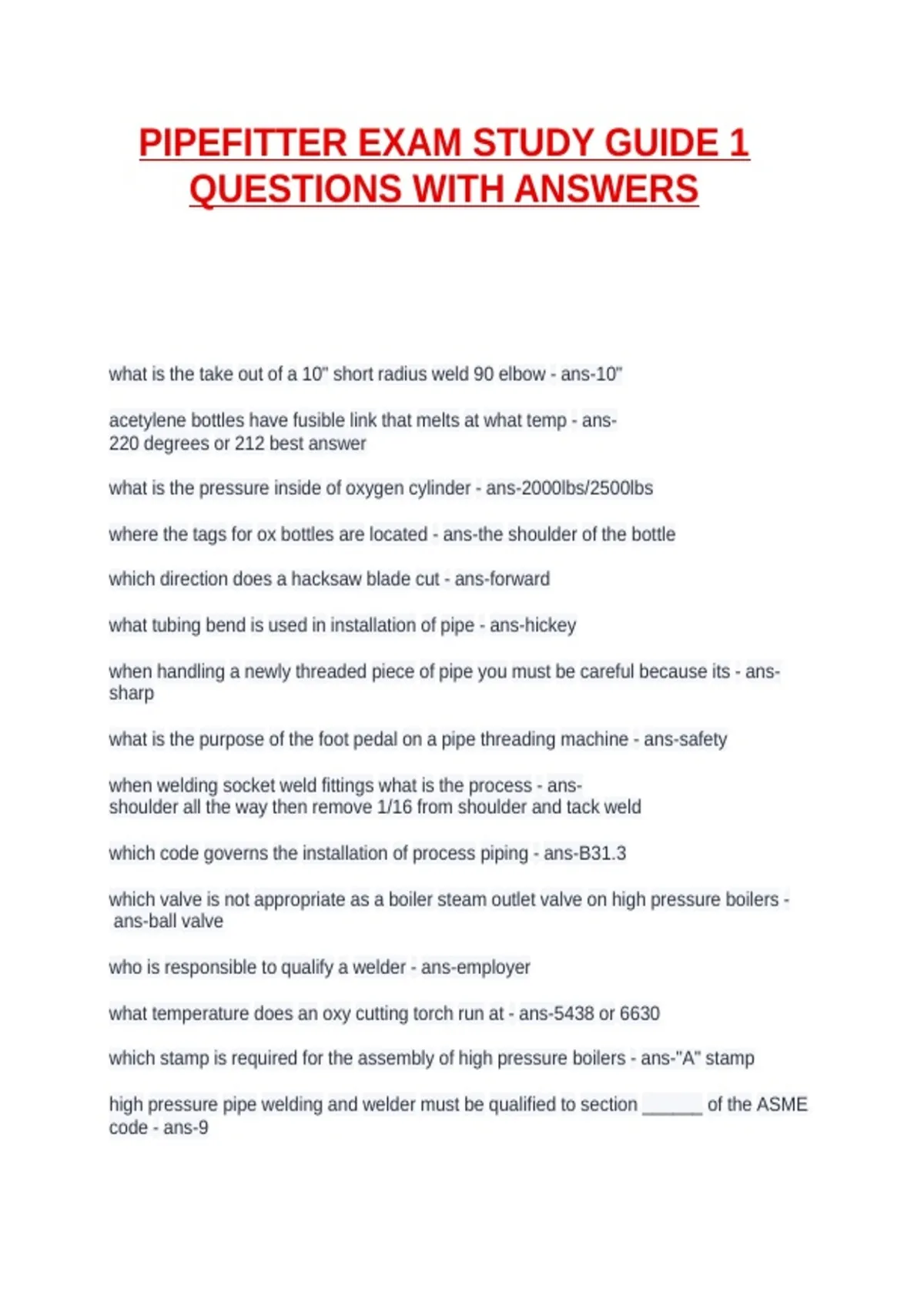

PIPEFITTER EXAM STUDY GUIDE 1
QUESTIONS WITH ANSWERS
what is the take out of a 10" short radius weld 90 elbow - ans-10"
xc xc xc xc xc xc xc xc xc xc xc xc xc xc
acetylene bottles have fusible link that melts at what temp - ans-
xc xc xc xc xc xc xc xc xc xc xc
220 degrees or 212 best answer
xc xc xc xc xc
what is the pressure inside of oxygen cylinder - ans-2000lbs/2500lbs
xc xc xc xc xc xc xc xc xc
where the tags for ox bottles are located - ans-the shoulder of the bottle
xc xc xc xc xc xc xc xc xc xc xc xc xc
which direction does a hacksaw blade cut - ans-forward
xc xc xc xc xc xc xc xc
what tubing bend is used in installation of pipe - ans-hickey
xc xc xc xc xc xc xc xc xc xc
when handling a newly threaded piece of pipe you must be careful because its - ans-
xc xc xc xc xc xc xc xc xc xc xc xc xc xc xc
sharp
what is the purpose of the foot pedal on a pipe threading machine - ans-safety
xc xc xc xc xc xc xc xc xc xc xc xc xc xc
when welding socket weld fittings what is the process - ans-
xc xc xc xc xc xc xc xc xc xc
shoulder all the way then remove 1/16 from shoulder and tack weld
xc xc xc xc xc xc xc xc xc xc xc
which code governs the installation of process piping - ans-B31.3
xc xc xc xc xc xc xc xc xc
which valve is not appropriate as a boiler steam outlet valve on high pressure boilers -
xc xc xc xc xc xc xc xc xc xc xc xc xc xc xc
ans-ball valve
xc xc
who is responsible to qualify a welder - ans-employer
xc xc xc xc xc xc xc xc
what temperature does an oxy cutting torch run at - ans-5438 or 6630
xc xc xc xc xc xc xc xc xc xc xc xc
which stamp is required for the assembly of high pressure boilers - ans-"A" stamp
xc xc xc xc xc xc xc xc xc xc xc xc xc
high pressure pipe welding and welder must be qualified to section ______ of the ASME
xc xc xc xc xc xc xc xc xc xc xc xc xc xc xc
code - ans-9
xc xc
