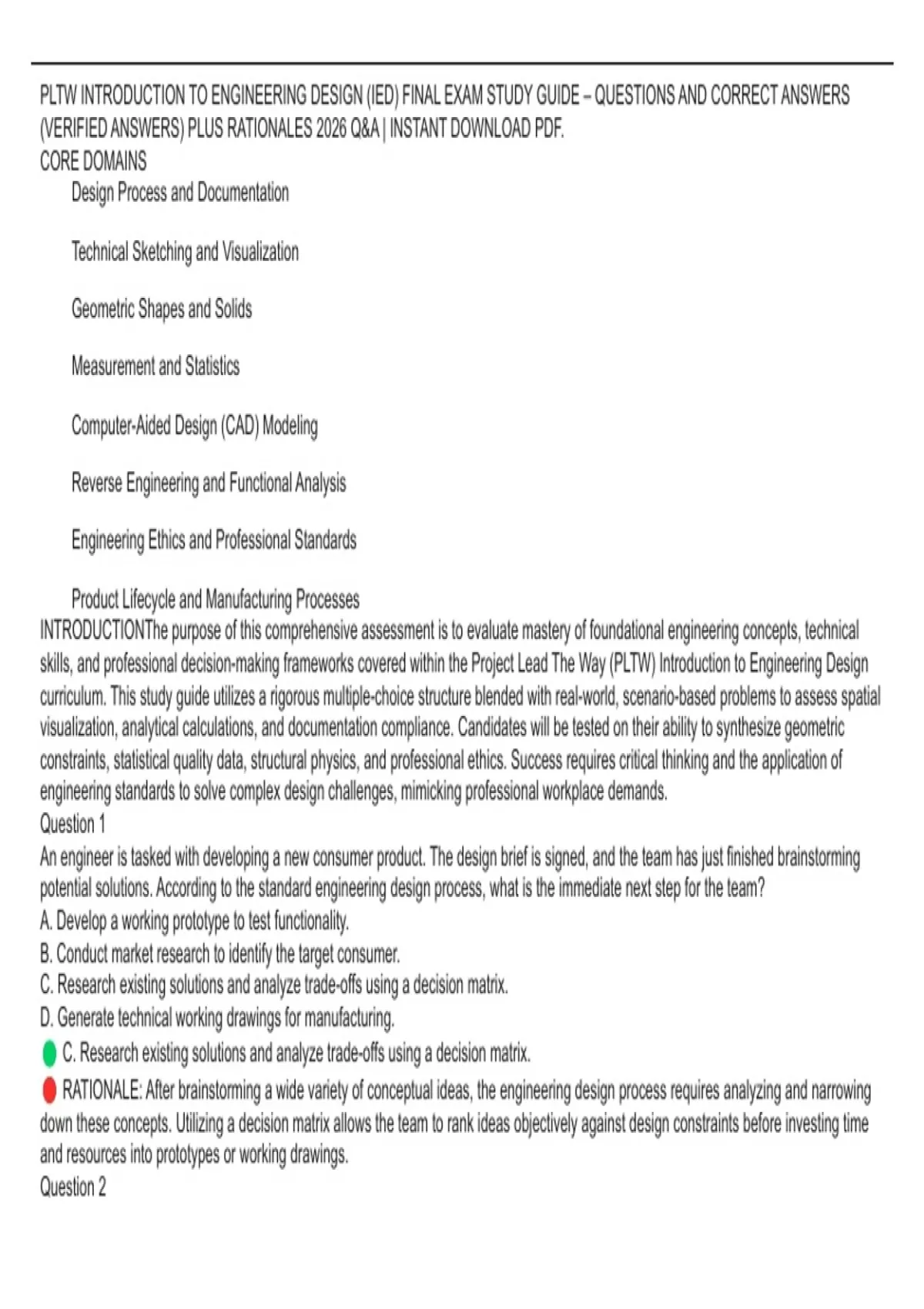

PLTW INTRODUCTION TO ENGINEERING DESIGN (IED) FINAL EXAM STUDY GUIDE – QUESTIONS AND CORRECT ANSWERS
(VERIFIED ANSWERS) PLUS RATIONALES 2026 Q&A | INSTANT DOWNLOAD PDF.
CORE DOMAINS
Design Process and Documentation
Technical Sketching and Visualization
Geometric Shapes and Solids
Measurement and Statistics
Computer-Aided Design (CAD) Modeling
Reverse Engineering and Functional Analysis
Engineering Ethics and Professional Standards
Product Lifecycle and Manufacturing Processes
INTRODUCTIONThe purpose of this comprehensive assessment is to evaluate mastery of foundational engineering concepts, technical
skills, and professional decision-making frameworks covered within the Project Lead The Way (PLTW) Introduction to Engineering Design
curriculum. This study guide utilizes a rigorous multiple-choice structure blended with real-world, scenario-based problems to assess spatial
visualization, analytical calculations, and documentation compliance. Candidates will be tested on their ability to synthesize geometric
constraints, statistical quality data, structural physics, and professional ethics. Success requires critical thinking and the application of
engineering standards to solve complex design challenges, mimicking professional workplace demands.
Question 1
An engineer is tasked with developing a new consumer product. The design brief is signed, and the team has just finished brainstorming
potential solutions. According to the standard engineering design process, what is the immediate next step for the team?
A. Develop a working prototype to test functionality.
B. Conduct market research to identify the target consumer.
C. Research existing solutions and analyze trade-offs using a decision matrix.
D. Generate technical working drawings for manufacturing.
🟢 C. Research existing solutions and analyze trade-offs using a decision matrix.
🔴 RATIONALE: After brainstorming a wide variety of conceptual ideas, the engineering design process requires analyzing and narrowing
down these concepts. Utilizing a decision matrix allows the team to rank ideas objectively against design constraints before investing time
and resources into prototypes or working drawings.
Question 2
,Which type of line in technical sketching is used to represent an edge or boundary that is hidden from view in a specific orthographic
projection?
A. Construction line
B. Object line
C. Section line
D. Hidden line
🟢 D. Hidden line
🔴 RATIONALE: Hidden lines are dashed lines used to represent edges, surfaces, or corners of an object that are obscured from view in a
particular orthographic projection view, maintaining visual clarity without cluttering the drawing.
Question 3
A dial caliper is used to measure the outer diameter of a cylindrical steel pin. The user notes that the dial hand points directly to 37 when
measuring. If the blade reading indicates 2.4 inches and each full revolution of the dial represents 0.100 inches, what is the final measured
dimension?
A. 2.437 inches
B. 2.770 inches
C. 2.4037 inches
D. 2.037 inches
🟢 A. 2.437 inches
🔴 RATIONALE: The final reading of a dial caliper is calculated by adding the blade reading to the dial reading. A blade reading of 2.4
inches plus a dial reading of 0.037 inches (37 thousandths) equals 2.437 inches.
Question 4
A manufacturing company measures a sample of 1,000 molded plastic housings to verify quality control. The mean thickness is found to be
0.125 inches with a standard deviation of 0.002 inches. Assuming a normal distribution, approximately how many parts fall between 0.123
inches and 0.127 inches?
A. 950 parts
B. 680 parts
C. 997 parts
D. 500 parts
🟢 B. 680 parts
🔴 RATIONALE: In a normal distribution, approximately 68% of the data points fall within plus or minus one standard deviation of the mean.
Since 0.123 and 0.127 represent exactly one standard deviation from the 0.125 mean, 68% of 1,000 parts equals 680 parts.
Question 5
When creating a 3D CAD model of a structural beam, an engineer must apply a constraint that ensures two circular holes remain perfectly
centered along the exact same linear axis, regardless of changes to the plate's overall width. Which geometric constraint is most
appropriate?
A. Concentric
, B. Coincident
C. Collinear
D. Parallel
🟢 C. Collinear
🔴 RATIONALE: A collinear constraint forces linear entities, such as the centerline axes of two holes or two lines, to lie along the exact
same straight line. Concentric would apply if the circles themselves shared a single center point on a 2D plane.
Question 6
During a reverse engineering teardown of an old mechanical alarm clock, an engineer documents how the gear train transfers rotational
energy from the mainspring to the escapement wheel. Which phase of reverse engineering does this structural tracking represent?
A. Functional analysis
B. Visual analysis
C. Structural analysis
D. Material analysis
🟢 A. Functional analysis
🔴 RATIONALE: Functional analysis involves identifying the inputs and outputs of a system, treating the device or subassemblies as
functional blocks to discover exactly how mechanical, electrical, or fluid energy transfers through the mechanism to perform a task.
Question 7
An engineering firm discovers that a structural bracket they designed and shipped to a client has a 5% higher failure rate than specified
under maximum load conditions. The error was due to a miscalculation by a junior designer that went unnoticed during verification. What is
the most ethical course of action for the firm?
A. Wait for clients to report failures before issuing any product updates or structural fixes.
B. Immediately notify all clients using the bracket, explain the risk, and provide a reinforced replacement.
C. Revise internal engineering calculation guidelines secretly to prevent future errors.
D. Inform the junior designer of the error and terminate their employment immediately to mitigate legal liability.
🟢 B. Immediately notify all clients using the bracket, explain the risk, and provide a reinforced replacement.
🔴 RATIONALE: Engineering ethics codes dictate that public safety, health, and welfare are paramount. When a safety defect or structural
non-compliance is identified, the firm has an immediate obligation to notify affected users and correct the problem to prevent harm.
Question 8
Which manufacturing process involves pouring or forcing molten metal or liquid plastic into a reusable mold cavity to produce high volumes
of complex, near-net-shape components?
A. Extrusion
B. Forging
C. Injection molding
D. Subtractive milling
🟢 C. Injection molding
