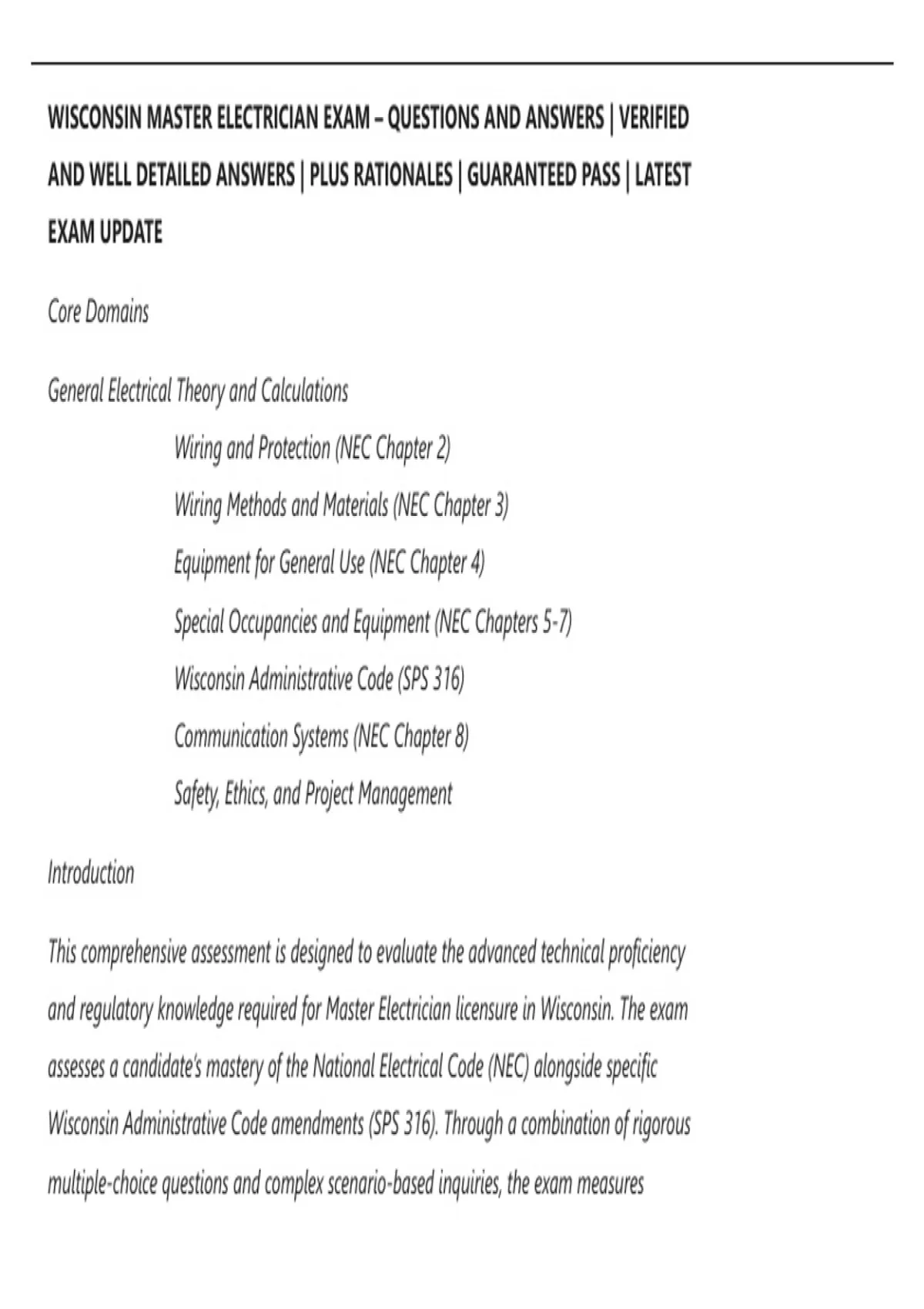

WISCONSIN MASTER ELECTRICIAN EXAM – QUESTIONS AND ANSWERS | VERIFIED
AND WELL DETAILED ANSWERS | PLUS RATIONALES | GUARANTEED PASS | LATEST
EXAM UPDATE
Core Domains
General Electrical Theory and Calculations
Wiring and Protection (NEC Chapter 2)
Wiring Methods and Materials (NEC Chapter 3)
Equipment for General Use (NEC Chapter 4)
Special Occupancies and Equipment (NEC Chapters 5-7)
Wisconsin Administrative Code (SPS 316)
Communication Systems (NEC Chapter 8)
Safety, Ethics, and Project Management
Introduction
This comprehensive assessment is designed to evaluate the advanced technical proficiency
and regulatory knowledge required for Master Electrician licensure in Wisconsin. The exam
assesses a candidate’s mastery of the National Electrical Code (NEC) alongside specific
Wisconsin Administrative Code amendments (SPS 316). Through a combination of rigorous
multiple-choice questions and complex scenario-based inquiries, the exam measures
,foundational theory, intricate load calculations, and legal compliance. By emphasizing real-
world application and ethical decision-making, this assessment ensures that practitioners
possess the critical thinking skills necessary to manage large-scale projects, ensure public
safety, and maintain the highest professional standards in the electrical industry.
SECTION ONE: QUESTIONS 1–100
1. What is the maximum number of 12 AWG THHN conductors permitted in a 3/4-inch
Electrical Metallic Tubing (EMT)?
A. 12
B. 16
C. 22
D. 9
🟢 Correct answer C. 22
🔴 Explanation: According to NEC Annex C, Table C.1, the maximum number of 12 AWG
THHN conductors allowed in a 3/4-inch EMT conduit is 22.
2. Under SPS 316, what is the required clearance for service-drop conductors over a
residential driveway?
,A. 10 feet
B. 12 feet
C. 15 feet
D. 18 feet
🟢 Correct answer B. 12 feet
🔴 Explanation: Wisconsin SPS 316 and NEC 230.24(B) specify that for residential
driveways not subject to truck traffic, the vertical clearance for service-drop conductors
must be at least 12 feet.
3. A 240-volt, single-phase motor draws 20 amperes. What is the minimum size copper
THWN branch-circuit conductor required?
A. 14 AWG
B. 12 AWG
C. 10 AWG
D. 8 AWG
🟢 Correct answer C. 10 AWG
🔴 Explanation: Motor branch-circuit conductors must be sized at 125% of the motor's
full-load current. 20A x 1.25 = 25A. According to Table 310.16, 10 AWG THWN (rated for
30A) is the minimum size required.
, 4. Which of the following is the primary purpose of bonding the neutral conductor to
the grounding electrode system at the service entrance?
A. To reduce voltage drop in the circuit
B. To provide a low-impedance path for fault current
C. To prevent the meter from running backward
D. To allow for easier wire identification
🟢 Correct answer B. To provide a low-impedance path for fault current
🔴 Explanation: Bonding the neutral to the grounding system at the service creates the
necessary path for overcurrent devices to trip quickly during a ground fault.
5. What is the maximum distance a support must be placed from a junction box when
using Nonmetallic-Sheathed Cable (Type NM)?
A. 6 inches
B. 12 inches
C. 18 inches
D. 24 inches
🟢 Correct answer B. 12 inches
