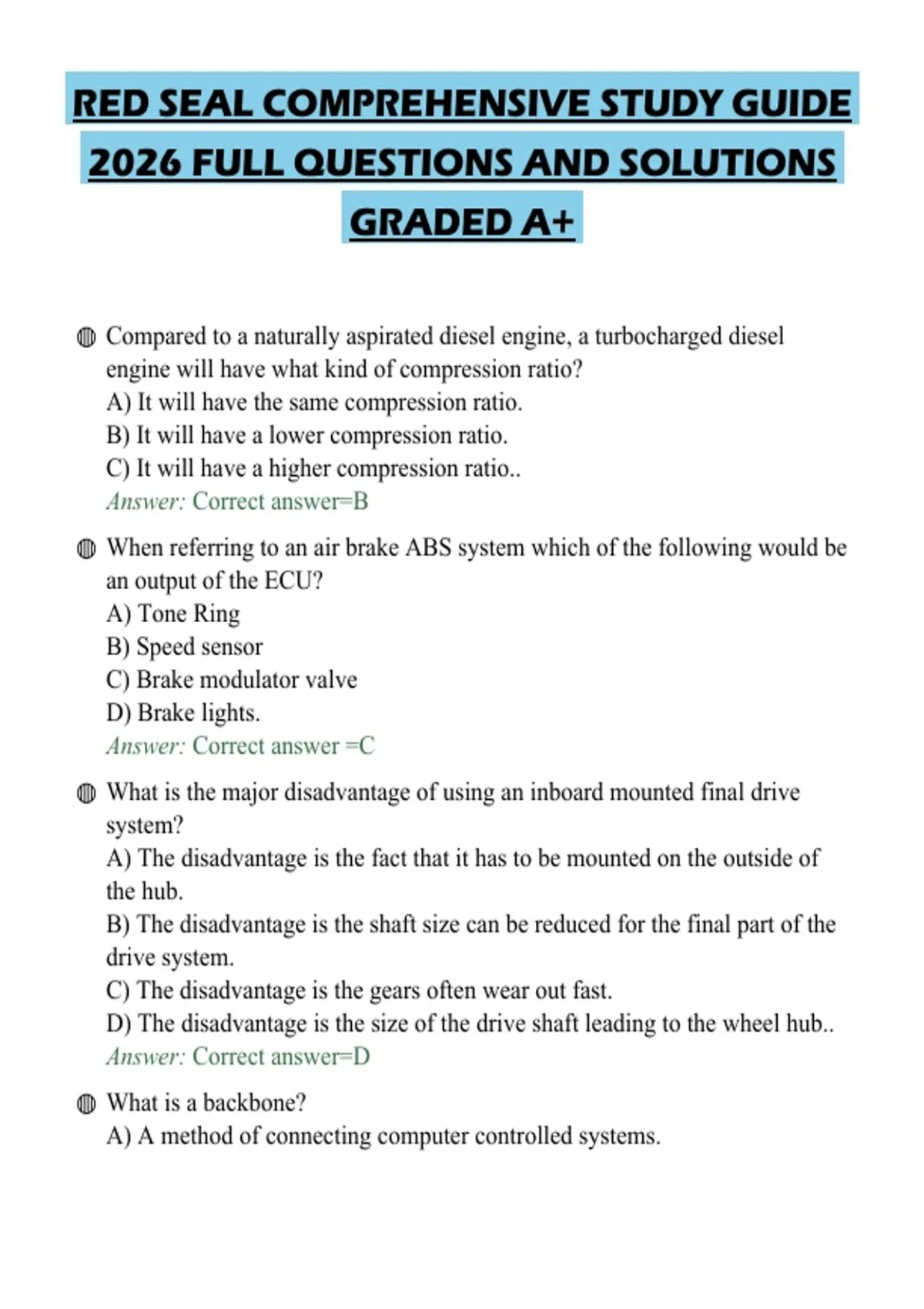

RED SEAL COMPREHENSIVE STUDY GUIDE
2026 FULL QUESTIONS AND SOLUTIONS
GRADED A+
◍ Compared to a naturally aspirated diesel engine, a turbocharged diesel
engine will have what kind of compression ratio?
A) It will have the same compression ratio.
B) It will have a lower compression ratio.
C) It will have a higher compression ratio..
Answer: Correct answer=B
◍ When referring to an air brake ABS system which of the following would be
an output of the ECU?
A) Tone Ring
B) Speed sensor
C) Brake modulator valve
D) Brake lights.
Answer: Correct answer =C
◍ What is the major disadvantage of using an inboard mounted final drive
system?
A) The disadvantage is the fact that it has to be mounted on the outside of
the hub.
B) The disadvantage is the shaft size can be reduced for the final part of the
drive system.
C) The disadvantage is the gears often wear out fast.
D) The disadvantage is the size of the drive shaft leading to the wheel hub..
Answer: Correct answer=D
◍ What is a backbone?
A) A method of connecting computer controlled systems.
, B) A method of connection for a network.
C) A type of language for data communication between control modules.
D) A type of language used for information transfer between passive
devices..
Answer: Correct answer=B
◍ What does a generator driven by the diesel engine of a truck use to produce
a voltage?
A) It uses electrochemical to produce a voltage.
B) It uses electromagnetic induction to produce a voltage.
C) It uses photoelectric effect to produce a voltage.
D) It uses resistance effect to produce a voltage..
Answer: Correct answer =B
◍ The pressure system of a private water supply system should provide a
volume of flow at least equal to.
Answer: the peak demand
◍ What are written by both federal and state legislatures that determine the
scope of practice?
A. Laws
B. Guidelines
C. Rules
D. Regulations.
Answer: A. Laws
◍ When referring to air brake chambers, a type 24 air brake chamber will have
an effective diaphragm area of how many square inches?
A) It will have an area of 12 square inches.
B) It will have an area of 24 square inches.
C) It will have an area of 113 square inches.
D) It will have an area of 452 square inches..
Answer: Correct answer=B
◍ Parking brakes are designed to hold a vehicle securely in place when left
unattended and as to provide full stopping power.
, A) True
B) False.
Answer: Correct answer=B
◍ piquant sauce.
Answer: shallot white wine white wine vinegar cornichons demi-glace
tarragon chervil
◍ What screwdriver type is the most commonly used?
A) Phillips
B) Blade
C) Robertson
D) Clutch.
Answer: Correct answer=B
◍ What is the process used to convert analog input signals so they can be used
by the central processing unit?
A) Encoding
B) Decoding
C) Inverting
D) Reverting.
Answer: Correct answer=A
◍ Which of the following best describes a hydraulic Gerotor motor?
A) A disc valve controls the flow of oil to and from the motor.
B) They rely on centrifugal force from the driveshaft.
C) A spool valve controls the flow of oil to and from the motor.
D) In general they are the most efficient type of hydraulic motor..
Answer: Correct answer=C
◍ A camshaft may be rebuilt by welding the lobes then grinding them to the
original profile or the camshaft may be reground.
A) true
B) false.
Answer: Correct answer=A
, ◍ What is the correct installation of a thermal bulb (aquastat proportional
controller) on a chilled water system?
A. Mount the bulb on the coolest surface of the chiller
B. Install in a thermal well with conductive paste
C. Strap the bulb on the cooling supply line
D. Install directly into a tapped tee connection.
Answer: B. Install in a thermal well with conductive paste
◍ A cast iron boiler will have its heat exchanger constructed of.
Answer: cast iron
◍ mousseline (chantilly sauce).
Answer: whip cream into hollandaise
◍ What type of system is a brake system considered as?
A) It is considered as a static system.
B) It is considered as a hydrostatic system.
C) It is considered as an inverted system.
D) It is considered as a hydrodynamic system..
Answer: Correct answer=B
◍ An underground water service is installed using thrust blocks. What
additional method could be used to restrain the joints?.
Answer: Continuous rodding
◍ This is the term for a decorative metal trim shield or flange located
underneath the faucet handle. It covers the hole in the wall or fixtures as
well as the faucet stem?
A. Escutcheon
B. Fluer
C. Dove tail
D. Flange.
Answer: A. Escutcheon
◍ The Focus group work shop is what?.
Answer: an interactive meeting where participants from each province and
