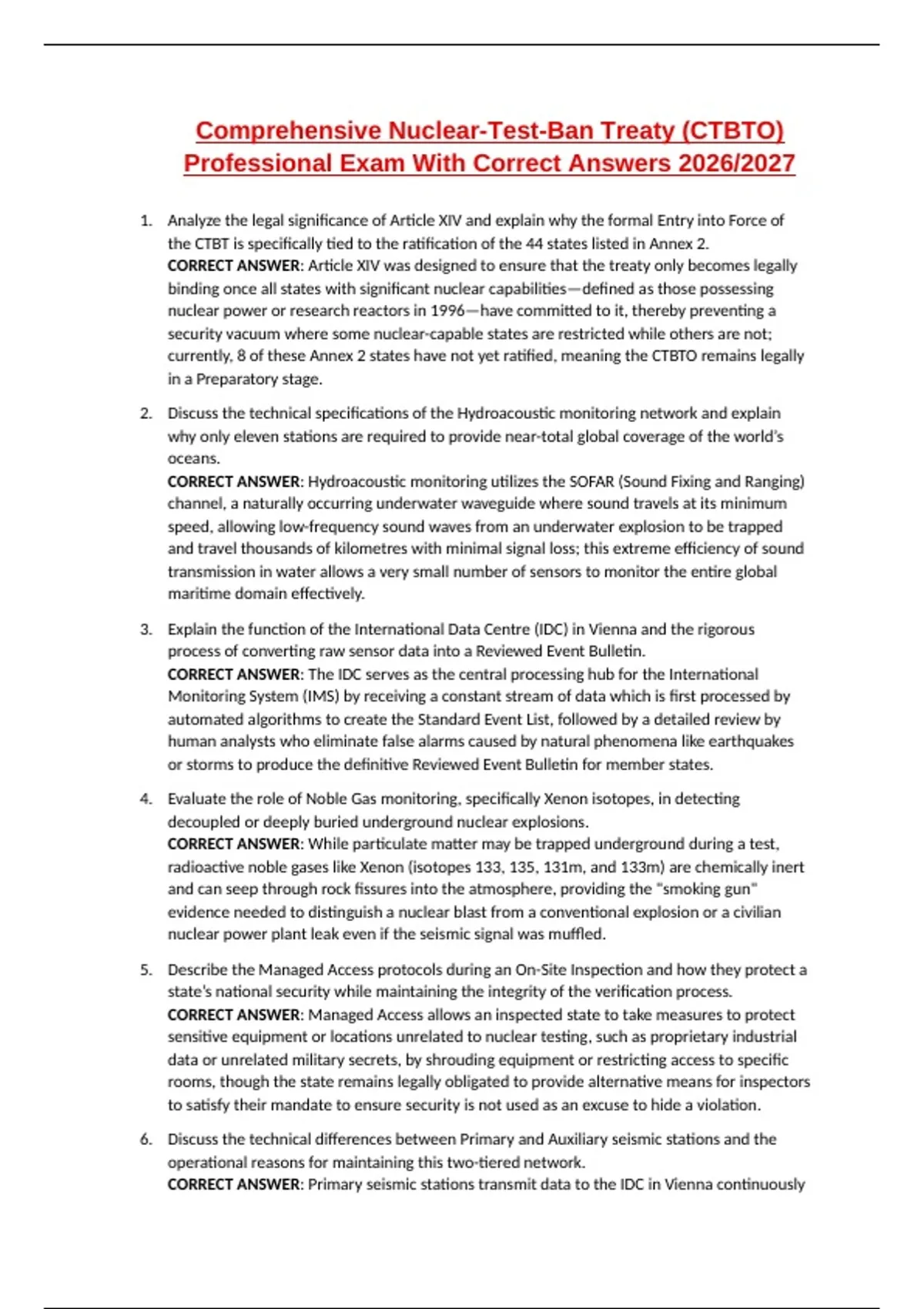

Comprehensive Nuclear-Test-Ban Treaty (CTBTO)
Professional Exam With Correct Answers 2026/2027
1. Analyze the legal significance of Article XIV and explain why the formal Entry into Force of
the CTBT is specifically tied to the ratification of the 44 states listed in Annex 2.
CORRECT ANSWER: Article XIV was designed to ensure that the treaty only becomes legally
binding once all states with significant nuclear capabilities—defined as those possessing
nuclear power or research reactors in 1996—have committed to it, thereby preventing a
security vacuum where some nuclear-capable states are restricted while others are not;
currently, 8 of these Annex 2 states have not yet ratified, meaning the CTBTO remains legally
in a Preparatory stage.
2. Discuss the technical specifications of the Hydroacoustic monitoring network and explain
why only eleven stations are required to provide near-total global coverage of the world’s
oceans.
CORRECT ANSWER: Hydroacoustic monitoring utilizes the SOFAR (Sound Fixing and Ranging)
channel, a naturally occurring underwater waveguide where sound travels at its minimum
speed, allowing low-frequency sound waves from an underwater explosion to be trapped
and travel thousands of kilometres with minimal signal loss; this extreme efficiency of sound
transmission in water allows a very small number of sensors to monitor the entire global
maritime domain effectively.
3. Explain the function of the International Data Centre (IDC) in Vienna and the rigorous
process of converting raw sensor data into a Reviewed Event Bulletin.
CORRECT ANSWER: The IDC serves as the central processing hub for the International
Monitoring System (IMS) by receiving a constant stream of data which is first processed by
automated algorithms to create the Standard Event List, followed by a detailed review by
human analysts who eliminate false alarms caused by natural phenomena like earthquakes
or storms to produce the definitive Reviewed Event Bulletin for member states.
4. Evaluate the role of Noble Gas monitoring, specifically Xenon isotopes, in detecting
decoupled or deeply buried underground nuclear explosions.
CORRECT ANSWER: While particulate matter may be trapped underground during a test,
radioactive noble gases like Xenon (isotopes 133, 135, 131m, and 133m) are chemically inert
and can seep through rock fissures into the atmosphere, providing the "smoking gun"
evidence needed to distinguish a nuclear blast from a conventional explosion or a civilian
nuclear power plant leak even if the seismic signal was muffled.
5. Describe the Managed Access protocols during an On-Site Inspection and how they protect a
state’s national security while maintaining the integrity of the verification process.
CORRECT ANSWER: Managed Access allows an inspected state to take measures to protect
sensitive equipment or locations unrelated to nuclear testing, such as proprietary industrial
data or unrelated military secrets, by shrouding equipment or restricting access to specific
rooms, though the state remains legally obligated to provide alternative means for inspectors
to satisfy their mandate to ensure security is not used as an excuse to hide a violation.
6. Discuss the technical differences between Primary and Auxiliary seismic stations and the
operational reasons for maintaining this two-tiered network.
CORRECT ANSWER: Primary seismic stations transmit data to the IDC in Vienna continuously
, and in real-time to provide immediate global surveillance, whereas Auxiliary stations record
data locally and only transmit it upon specific request from the IDC to refine the location or
magnitude of a detected event, an arrangement that ensures rapid detection while
significantly reducing the costs associated with global satellite bandwidth.
7. Analyze the concept of Infrasound monitoring and describe how the Spatial Filter system at
an IMS station mitigates the interference of local wind noise.
CORRECT ANSWER: Infrasound stations detect ultra-low-frequency sound waves in the
atmosphere, but because local wind turbulence creates acoustic noise that can mask these
signals, stations use a spatial filter—a complex network of pipes and inlets—that averages
out small-scale air pressure fluctuations from wind while allowing the long-wavelength
infrasound waves from a distant explosion to pass through clearly.
8. Explain the Green Light voting mechanism within the Executive Council and why it is
essential for preventing the political misuse of On-Site Inspections.
CORRECT ANSWER: An On-Site Inspection is a highly intrusive tool, so to prevent states from
requesting inspections for political harassment or general espionage, the Green Light rule
requires that at least 30 out of the 51 members of the Executive Council vote in favour of a
requested inspection, ensuring it is only triggered when there is compelling technical
evidence from the monitoring system suggesting a treaty violation.
9. Evaluate the role of Atmospheric Transport Modeling in back-tracking detected radionuclides
to a specific geographic point of origin.
CORRECT ANSWER: When a radionuclide station detects radioactive isotopes, Atmospheric
Transport Modeling uses global meteorological data including wind speed, direction, and
pressure to calculate the path that the air mass took before reaching the sensor, allowing
scientists to identify the probable location of a suspicious event detected by the seismic or
infrasound networks through precise back-tracking.
10. Describe the Points of Entry protocol for an On-Site Inspection team and the rights of the
inspected state during the arrival phase.
CORRECT ANSWER: The inspected state designates specific Points of Entry where the
inspection team must arrive, and upon arrival, the state has the right to inspect the team's
equipment to ensure it hasn't been tampered with and matches the Approved Equipment
List, thereby ensuring the team is only carrying technology permitted under the treaty and
not tools for general espionage.
11. Discuss the technical challenges associated with the certification of an IMS station located in
an extreme environment such as the Antarctic interior.
CORRECT ANSWER: Certification for stations in extreme environments requires proving that
the equipment can operate autonomously with 99% data availability despite sub-zero
temperatures and high winds, often requiring specialized power systems like isotope
thermoelectric generators or advanced wind turbines to maintain the constant data stream
required by the IDC.
12. Analyze the significance of the Global Communications Infrastructure and why the use of a
private VSAT network is prioritized over the public internet.
CORRECT ANSWER: The GCI is a dedicated satellite-based network using Very Small Aperture
Terminals to connect monitoring stations directly to Vienna, bypassing the public internet
which is vulnerable to outages, local censorship, and cyber-attacks, thus ensuring high-level
