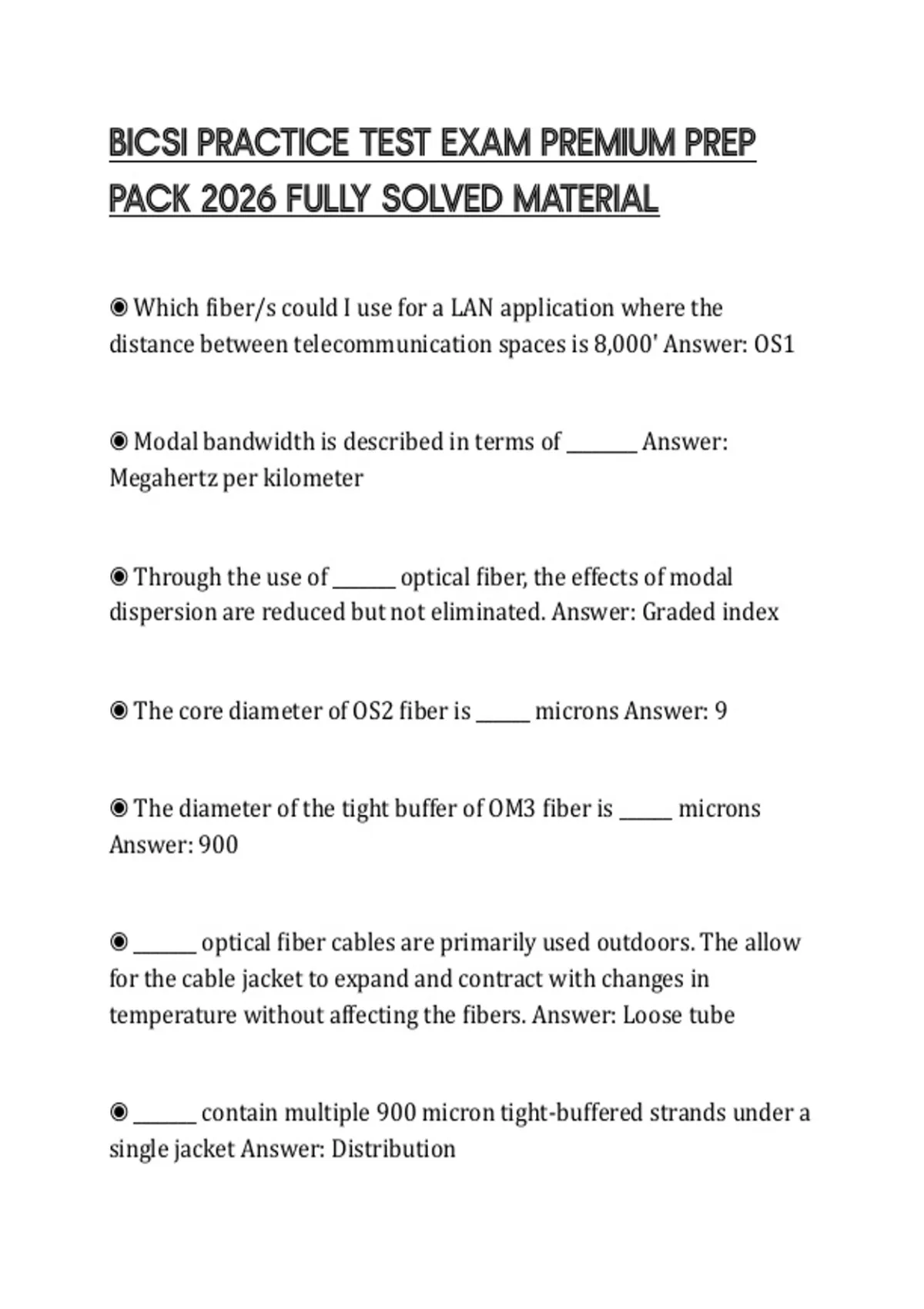

BICSI PRACTICE TEST EXAM PREMIUM PREP
PACK 2026 FULLY SOLVED MATERIAL
◉ Which fiber/s could I use for a LAN application where the
distance between telecommunication spaces is 8,000' Answer: OS1
◉ Modal bandwidth is described in terms of ________ Answer:
Megahertz per kilometer
◉ Through the use of _______ optical fiber, the effects of modal
dispersion are reduced but not eliminated. Answer: Graded index
◉ The core diameter of OS2 fiber is ______ microns Answer: 9
◉ The diameter of the tight buffer of OM3 fiber is ______ microns
Answer: 900
◉ _______ optical fiber cables are primarily used outdoors. The allow
for the cable jacket to expand and contract with changes in
temperature without affecting the fibers. Answer: Loose tube
◉ _______ contain multiple 900 micron tight-buffered strands under a
single jacket Answer: Distribution
, ◉ _______ consists of up to 24 strands bundled together in a single
line. It uses an array connector (MPO) and can be quickly spliced
when using special equipment. Answer: Ribbon
◉ The color code for singlemode optical fiber is ________ Answer:
Yellow
◉ The color code for multimode optical fiber with a 50 micron core
diameter (laser optimized) is Answer: Aqua
◉ The ______ can terminate from 6 - 72 fibers in a single ferrule
Answer: MPO
◉ The consolidation point (CP) should be limited to serving a
maximum of ________ equipment outlet spaces Answer: 12
◉ The consolidation point (CP) should be at least ______ feet from the
TR Answer: 50
◉ You should look in ANSI/TIA - ______ if you needed information on
the labeling standard. Answer: 606 A-38,39
