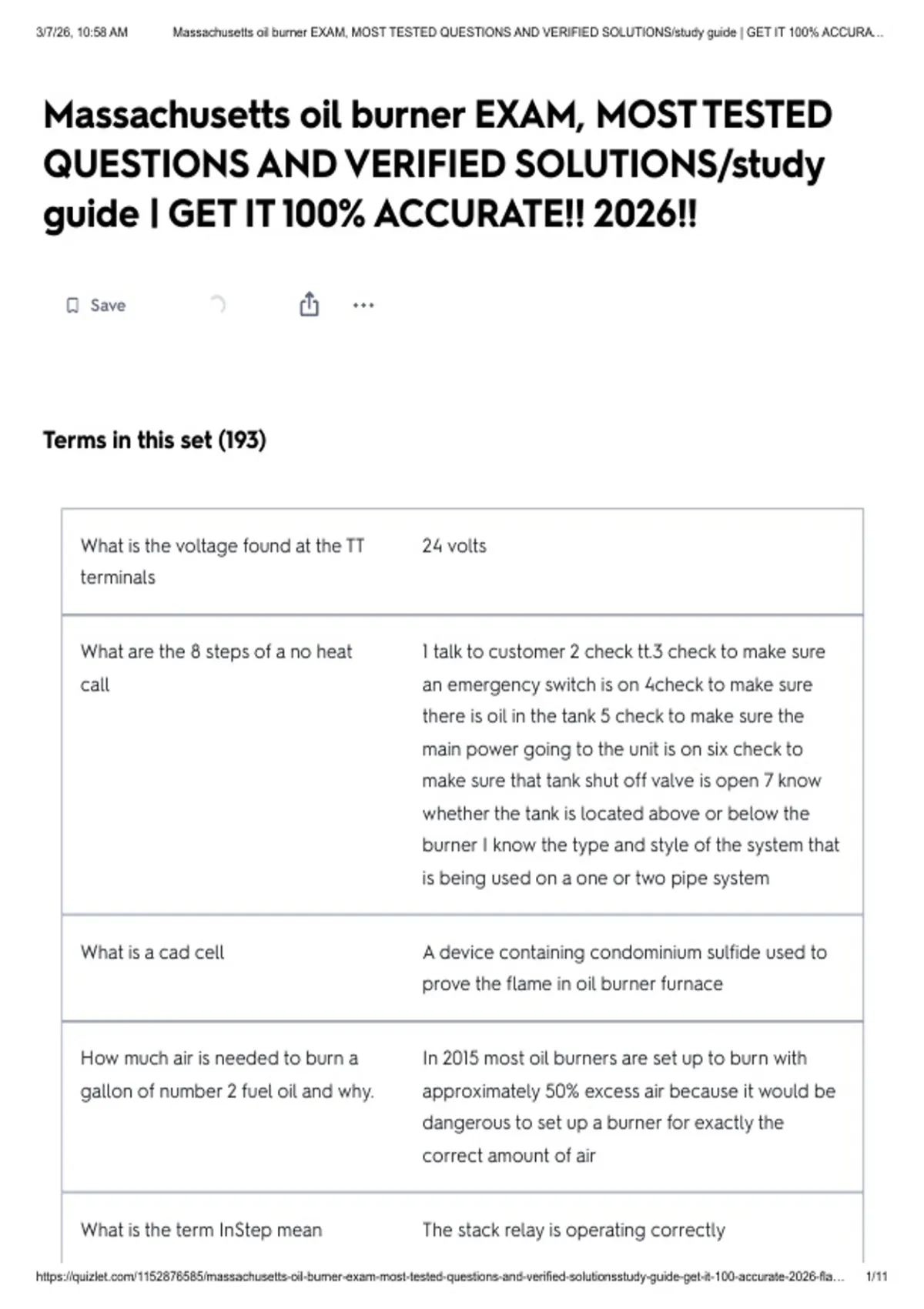

Massachusetts oil burner EXAM, MOST TESTED
QUESTIONS AND VERIFIED SOLUTIONS/study
guide | GET IT 100% ACCURATE!! 2026!!
Save
Terms in this set (193)
What is the voltage found at the TT 24 volts
terminals
What are the 8 steps of a no heat 1 talk to customer 2 check tt.3 check to make sure
call an emergency switch is on 4check to make sure
there is oil in the tank 5 check to make sure the
main power going to the unit is on six check to
make sure that tank shut off valve is open 7 know
whether the tank is located above or below the
burner I know the type and style of the system that
is being used on a one or two pipe system
What is a cad cell A device containing condominium sulfide used to
prove the flame in oil burner furnace
How much air is needed to burn a In 2015 most oil burners are set up to burn with
gallon of number 2 fuel oil and why. approximately 50% excess air because it would be
dangerous to set up a burner for exactly the
correct amount of air
What is the term InStep mean The stack relay is operating correctly
https://quizlet.com/1152876585/massachusetts-oil-burner-exam-most-tested-questions-and-verified-solutionsstudy-guide-get-it-100-accurate-2026-fla… 1/11
, 3/7/26, 10:58 AM Massachusetts oil burner EXAM, MOST TESTED QUESTIONS AND VERIFIED SOLUTIONS/study guide | GET IT 100% ACCURA…
What is normal pump pressure 100 PSI
How is combustion achieved Atomization, air, ignition.
What is primary air and secondary air Primary air, air that is introduced to a furnace
burner before the combustion process has taken
place. secondary air, air that is introduced to the
furnace after combustion has taken place and that
supports combustion
How should an oil tank be supported It shall be secured attached to a non-combustible
supports
What is the wire gauge use an oil 14 gauge 15 amp fuse
burner circuits
How is an oil burner wired Shall be wired on its own circuit. All protective
control and emergency devices shall be series
connected in the grounded line conductors. all the
electrical wiring shall be in accordance with 527
CMR 12.00 Massachusetts electrical code
What size vent pipe is required with a A fill pipe shall not be greater than the vent pipe.
2 inch fill pipe The minimum the fill pipe in the state of
Massachusetts is one and one quarter inch.
Explain interrupted ignition the ignition Transformer drops out of the circuit
once a flame is established
What are the elements are found in Carbon hydrogen oxygen and hydrocarbons
fuel oil number 2
https://quizlet.com/1152876585/massachusetts-oil-burner-exam-most-tested-questions-and-verified-solutionsstudy-guide-get-it-100-accurate-2026-fla… 2/11
Massachusetts oil burner EXAM, MOST TESTED
QUESTIONS AND VERIFIED SOLUTIONS/study
guide | GET IT 100% ACCURATE!! 2026!!
Save
Terms in this set (193)
What is the voltage found at the TT 24 volts
terminals
What are the 8 steps of a no heat 1 talk to customer 2 check tt.3 check to make sure
call an emergency switch is on 4check to make sure
there is oil in the tank 5 check to make sure the
main power going to the unit is on six check to
make sure that tank shut off valve is open 7 know
whether the tank is located above or below the
burner I know the type and style of the system that
is being used on a one or two pipe system
What is a cad cell A device containing condominium sulfide used to
prove the flame in oil burner furnace
How much air is needed to burn a In 2015 most oil burners are set up to burn with
gallon of number 2 fuel oil and why. approximately 50% excess air because it would be
dangerous to set up a burner for exactly the
correct amount of air
What is the term InStep mean The stack relay is operating correctly
https://quizlet.com/1152876585/massachusetts-oil-burner-exam-most-tested-questions-and-verified-solutionsstudy-guide-get-it-100-accurate-2026-fla… 1/11
, 3/7/26, 10:58 AM Massachusetts oil burner EXAM, MOST TESTED QUESTIONS AND VERIFIED SOLUTIONS/study guide | GET IT 100% ACCURA…
What is normal pump pressure 100 PSI
How is combustion achieved Atomization, air, ignition.
What is primary air and secondary air Primary air, air that is introduced to a furnace
burner before the combustion process has taken
place. secondary air, air that is introduced to the
furnace after combustion has taken place and that
supports combustion
How should an oil tank be supported It shall be secured attached to a non-combustible
supports
What is the wire gauge use an oil 14 gauge 15 amp fuse
burner circuits
How is an oil burner wired Shall be wired on its own circuit. All protective
control and emergency devices shall be series
connected in the grounded line conductors. all the
electrical wiring shall be in accordance with 527
CMR 12.00 Massachusetts electrical code
What size vent pipe is required with a A fill pipe shall not be greater than the vent pipe.
2 inch fill pipe The minimum the fill pipe in the state of
Massachusetts is one and one quarter inch.
Explain interrupted ignition the ignition Transformer drops out of the circuit
once a flame is established
What are the elements are found in Carbon hydrogen oxygen and hydrocarbons
fuel oil number 2
