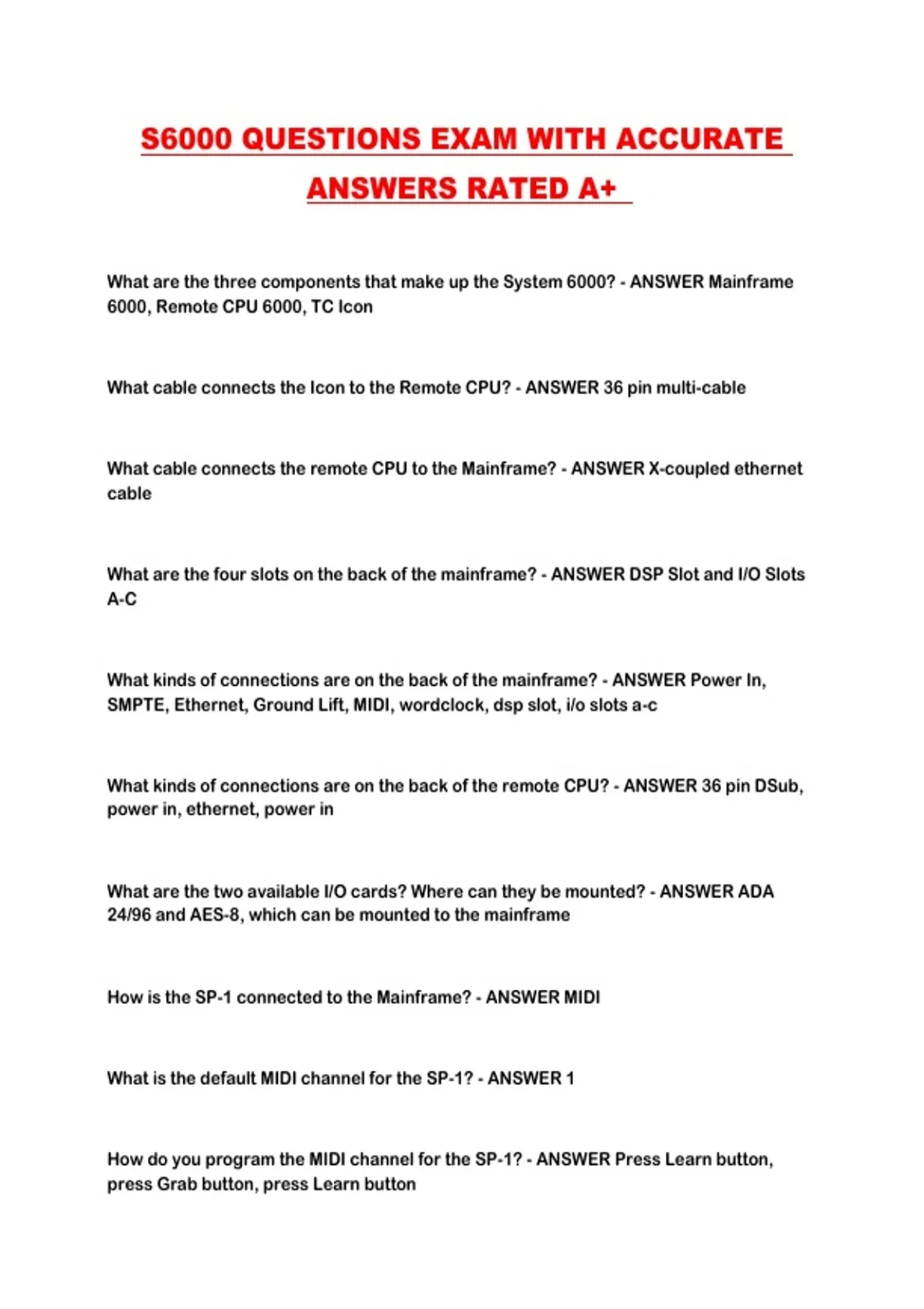

S6000 QUESTIONS EXAM WITH ACCURATE
ANSWERS RATED A+
What are the three components that make up the System 6000? - ANSWER Mainframe
6000, Remote CPU 6000, TC Icon
What cable connects the Icon to the Remote CPU? - ANSWER 36 pin multi-cable
What cable connects the remote CPU to the Mainframe? - ANSWER X-coupled ethernet
cable
What are the four slots on the back of the mainframe? - ANSWER DSP Slot and I/O Slots
A-C
What kinds of connections are on the back of the mainframe? - ANSWER Power In,
SMPTE, Ethernet, Ground Lift, MIDI, wordclock, dsp slot, i/o slots a-c
What kinds of connections are on the back of the remote CPU? - ANSWER 36 pin DSub,
power in, ethernet, power in
What are the two available I/O cards? Where can they be mounted? - ANSWER ADA
24/96 and AES-8, which can be mounted to the mainframe
How is the SP-1 connected to the Mainframe? - ANSWER MIDI
What is the default MIDI channel for the SP-1? - ANSWER 1
How do you program the MIDI channel for the SP-1? - ANSWER Press Learn button,
press Grab button, press Learn button
, Where is the setup page for the SP-1 joystick? - ANSWER Icon Setup > Joystick > Enable
What are the four types of software in the System 6000? - ANSWER Frame, DSP, TC
Icon, Ethernet
Where do you update the software? - ANSWER Floppy disk or Frame software > DSP
software > software for the TC Icon > Ethernet software
While loading the software, what does it mean when you see a:
a. Orange LED?
b. Red LED?
c. Red Blinking LED? d. Green LED? - ANSWER A. Boot software is starting, B. Boot
software could not start the Ethernet or H8 main board application, C. Boot software
could not save the result file "Resboot.txt" on the diskette
What is the default subnet mask for the System 6000? - ANSWER 255.255.255.0
What is the TCP/IP address for the TC Icon? - ANSWER 192.168.1.125
What is the TCP/IP address for the Mainframe 6000? - ANSWER 192.168.1.126
How many engines are there? - ANSWER 4
How many inputs and outputs are on each engine? - ANSWER 8
How many physical inputs and outputs can be routed? - ANSWER 16
In Library-Recall, what are the 3 levels of presets? - ANSWER Scene, Routing, Engine
