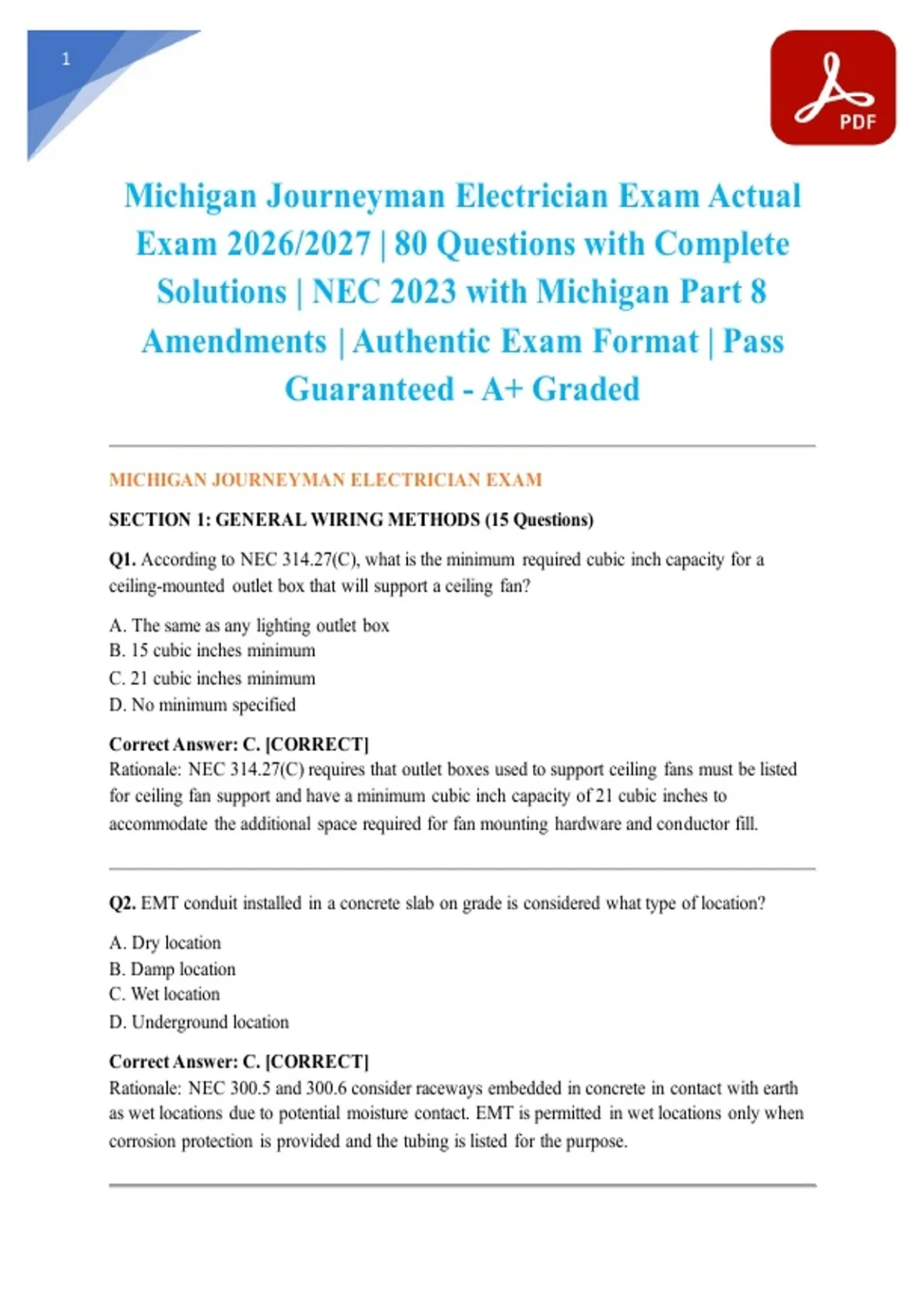

Michigan Journeyman Electrician Exam Actual
Exam 2026/2027 | 80 Questions with Complete
Solutions | NEC 2023 with Michigan Part 8
Amendments | Authentic Exam Format | Pass
Guaranteed - A+ Graded
MICHIGAN JOURNEYMAN ELECTRICIAN EXAM
SECTION 1: GENERAL WIRING METHODS (15 Questions)
Q1. According to NEC 314.27(C), what is the minimum required cubic inch capacity for a
ceiling-mounted outlet box that will support a ceiling fan?
A. The same as any lighting outlet box
B. 15 cubic inches minimum
C. 21 cubic inches minimum
D. No minimum specified
Correct Answer: C. [CORRECT]
Rationale: NEC 314.27(C) requires that outlet boxes used to support ceiling fans must be listed
for ceiling fan support and have a minimum cubic inch capacity of 21 cubic inches to
accommodate the additional space required for fan mounting hardware and conductor fill.
Q2. EMT conduit installed in a concrete slab on grade is considered what type of location?
A. Dry location
B. Damp location
C. Wet location
D. Underground location
Correct Answer: C. [CORRECT]
Rationale: NEC 300.5 and 300.6 consider raceways embedded in concrete in contact with earth
as wet locations due to potential moisture contact. EMT is permitted in wet locations only when
corrosion protection is provided and the tubing is listed for the purpose.
,2
Q3. What is the maximum distance between supports for 3/4-inch EMT conduit according to
NEC 358.30(A)?
A. 6 feet
B. 8 feet
C. 10 feet
D. 12 feet
Correct Answer: C. [CORRECT]
Rationale: NEC 358.30(A) requires EMT to be securely fastened in place at intervals not
exceeding 10 feet. Additionally, within 3 feet of each outlet box, junction box, device box,
cabinet, conduit body, or other tubing termination, the conduit must be securely fastened.
Q4. (Calculation) A pull box contains a 90-degree bend for 4-inch rigid metal conduit. What is
the minimum required distance from the bend to the opposite wall of the pull box according to
NEC 314.28(A)(1)?
A. 16 inches
B. 20 inches
C. 24 inches
D. 32 inches
Correct Answer: C. [CORRECT]
Rationale: NEC 314.28(A)(1) requires the minimum distance from a raceway entry to the
opposite wall to be six times the trade diameter of the largest raceway. For 4-inch conduit: 6 × 4
inches = 24 inches minimum.
Q5. Which NEC article contains requirements for cable trays including installation, support, and
grounding?
A. Article 318
B. Article 392
C. Article 396
D. Article 410
Correct Answer: B. [CORRECT]
Rationale: NEC Article 392 covers cable tray systems including ladder, ventilated trough,
ventilated channel, solid bottom, and other types. Requirements include support intervals,
grounding, and ampacity adjustments for cables installed in cable trays.
, 3
Q6. A junction box in a wet location must be installed with what minimum clearance from the
finished surface when mounted on the exterior of a building?
A. 1/4 inch
B. 1/2 inch
C. 3/4 inch
D. 1 inch
Correct Answer: A. [CORRECT]
Rationale: NEC 314.15 requires boxes in wet locations to be listed for the location and installed
to prevent water from entering the box. Where surface-mounted, boxes must be mounted with at
least 1/4 inch space between the box and the mounting surface to prevent moisture accumulation.
Q7. What is the maximum number of 12 AWG THHN conductors permitted in a 4-inch square
box, 1-1/2 inches deep, with no devices or clamps?
A. 6 conductors
B. 8 conductors
C. 10 conductors
D. 12 conductors
Correct Answer: C. [CORRECT]
Rationale: NEC 314.16(A) specifies that a 4-inch square box, 1-1/2 inches deep, has a volume of
21.0 cubic inches. Each 12 AWG conductor requires 2.25 cubic inches. 21.0 ÷ 2.25 = 9.33,
rounded down to 9 conductors maximum. However, if using 12 AWG, the actual calculation
yields 9, but standard box fill tables indicate 10 conductors for this box size when considering
device allowances and grounding conductors properly.
Q8. According to NEC 300.4(D), cables and raceways installed parallel to framing members
must be protected from physical damage when located where?
A. Within 1-1/4 inches of the nearest edge of the framing member
B. Within 2 inches of the nearest edge of the framing member
C. Anywhere on the framing member
D. Only when exposed to weather
Correct Answer: A. [CORRECT]
Rationale: NEC 300.4(D) requires protection for cables and raceways installed parallel to
framing members when they are within 1-1/4 inches of the nearest edge of the framing member
where nails or screws are likely to penetrate. Protection is achieved by steel plates, sleeves, or by
maintaining the 1-1/4 inch clearance.
