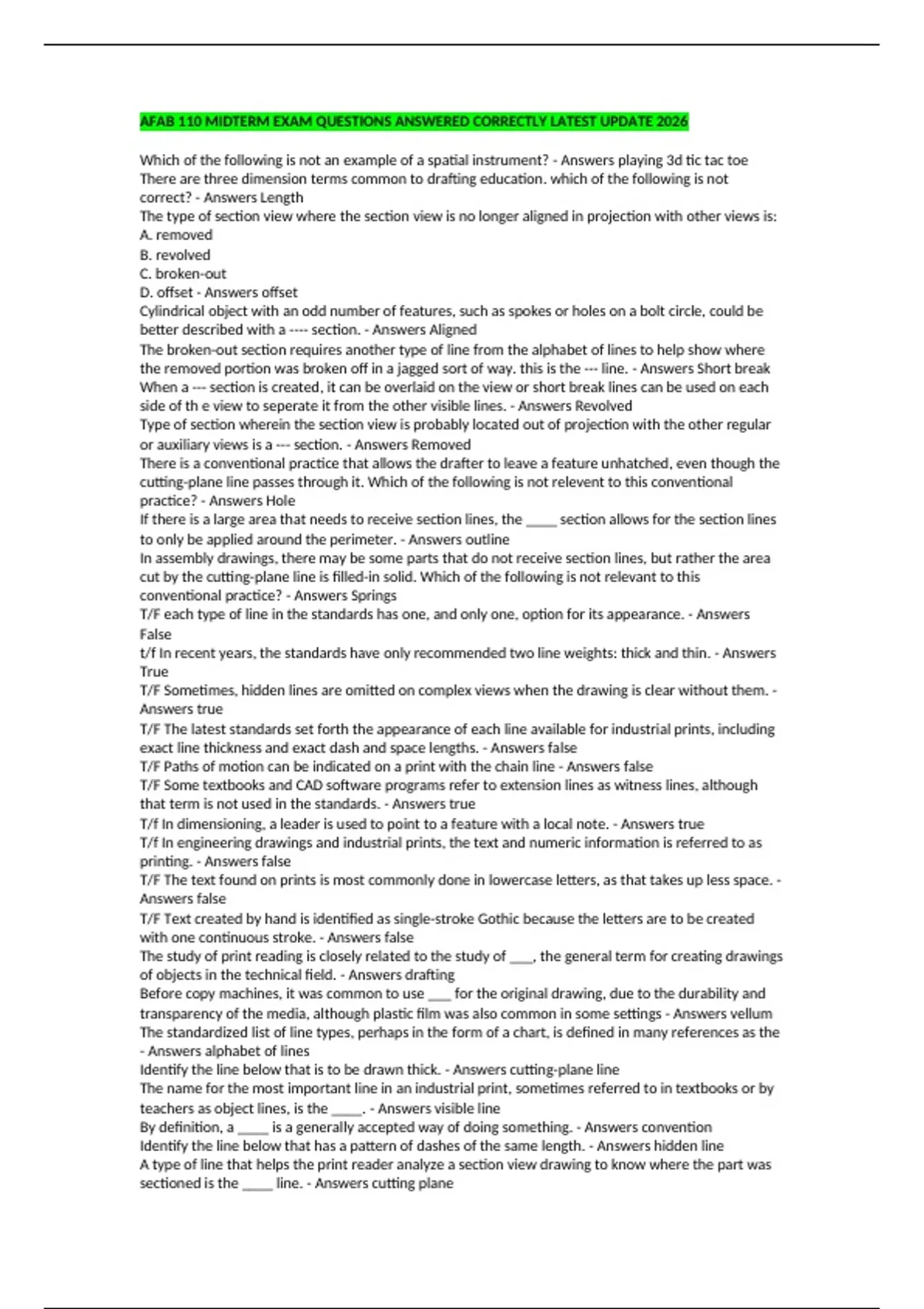

AFAB 110 MIDTERM EXAM QUESTIONS ANSWERED CORRECTLY LATEST UPDATE 2026
Which of the following is not an example of a spatial instrument? - Answers playing 3d tic tac toe
There are three dimension terms common to drafting education. which of the following is not
correct? - Answers Length
The type of section view where the section view is no longer aligned in projection with other views is:
A. removed
B. revolved
C. broken-out
D. offset - Answers offset
Cylindrical object with an odd number of features, such as spokes or holes on a bolt circle, could be
better described with a ---- section. - Answers Aligned
The broken-out section requires another type of line from the alphabet of lines to help show where
the removed portion was broken off in a jagged sort of way. this is the --- line. - Answers Short break
When a --- section is created, it can be overlaid on the view or short break lines can be used on each
side of th e view to seperate it from the other visible lines. - Answers Revolved
Type of section wherein the section view is probably located out of projection with the other regular
or auxiliary views is a --- section. - Answers Removed
There is a conventional practice that allows the drafter to leave a feature unhatched, even though the
cutting-plane line passes through it. Which of the following is not relevent to this conventional
practice? - Answers Hole
If there is a large area that needs to receive section lines, the ____ section allows for the section lines
to only be applied around the perimeter. - Answers outline
In assembly drawings, there may be some parts that do not receive section lines, but rather the area
cut by the cutting-plane line is filled-in solid. Which of the following is not relevant to this
conventional practice? - Answers Springs
T/F each type of line in the standards has one, and only one, option for its appearance. - Answers
False
t/f In recent years, the standards have only recommended two line weights: thick and thin. - Answers
True
T/F Sometimes, hidden lines are omitted on complex views when the drawing is clear without them. -
Answers true
T/F The latest standards set forth the appearance of each line available for industrial prints, including
exact line thickness and exact dash and space lengths. - Answers false
T/F Paths of motion can be indicated on a print with the chain line - Answers false
T/F Some textbooks and CAD software programs refer to extension lines as witness lines, although
that term is not used in the standards. - Answers true
T/f In dimensioning, a leader is used to point to a feature with a local note. - Answers true
T/f In engineering drawings and industrial prints, the text and numeric information is referred to as
printing. - Answers false
T/F The text found on prints is most commonly done in lowercase letters, as that takes up less space. -
Answers false
T/F Text created by hand is identified as single-stroke Gothic because the letters are to be created
with one continuous stroke. - Answers false
The study of print reading is closely related to the study of ___, the general term for creating drawings
of objects in the technical field. - Answers drafting
Before copy machines, it was common to use ___ for the original drawing, due to the durability and
transparency of the media, although plastic film was also common in some settings - Answers vellum
The standardized list of line types, perhaps in the form of a chart, is defined in many references as the
- Answers alphabet of lines
Identify the line below that is to be drawn thick. - Answers cutting-plane line
The name for the most important line in an industrial print, sometimes referred to in textbooks or by
teachers as object lines, is the ____. - Answers visible line
By definition, a ____ is a generally accepted way of doing something. - Answers convention
Identify the line below that has a pattern of dashes of the same length. - Answers hidden line
A type of line that helps the print reader analyze a section view drawing to know where the part was
sectioned is the ____ line. - Answers cutting plane
