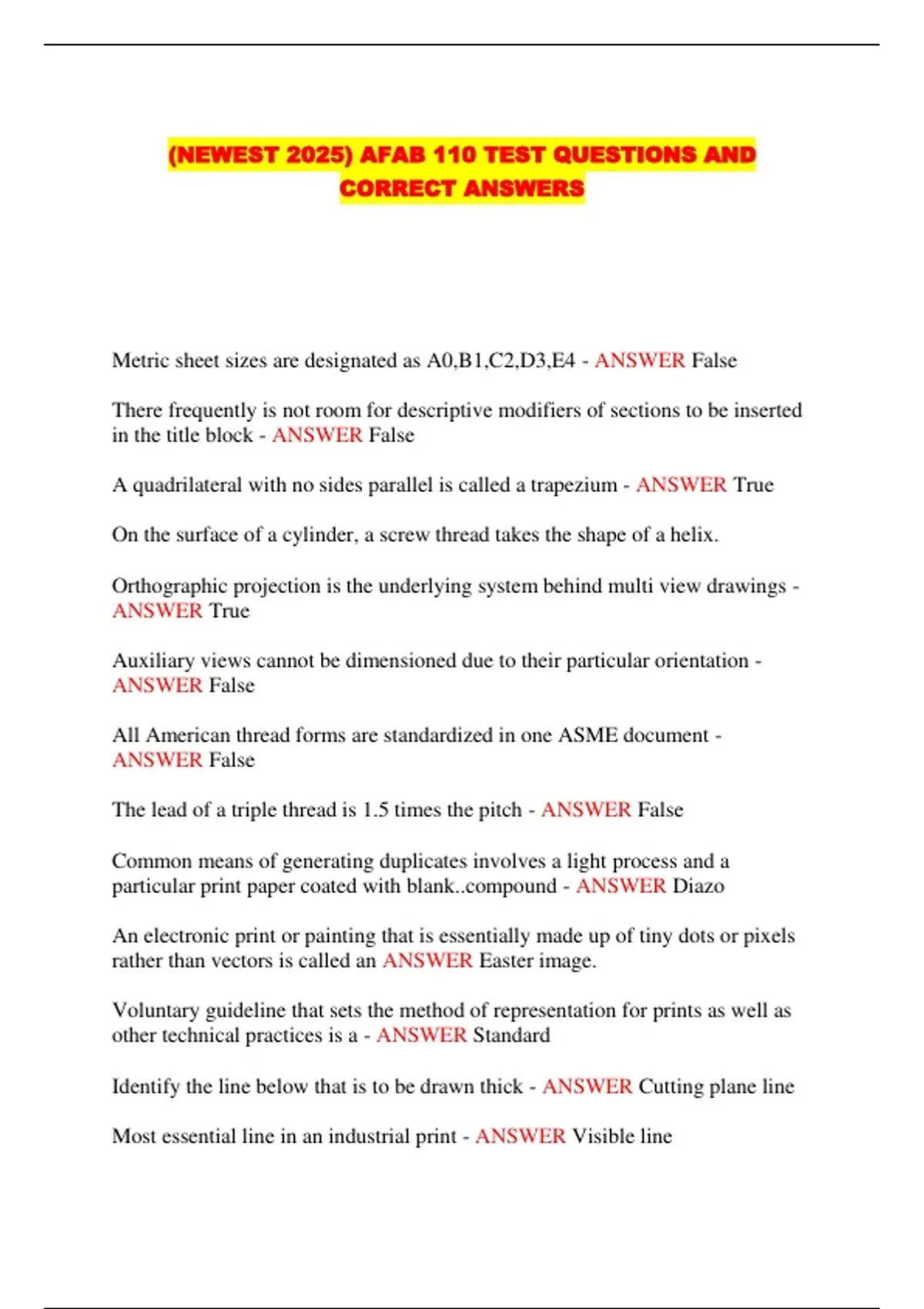

(NEWEST 2025) AFAB 110 TEST QUESTIONS AND
CORRECT ANSWERS
Metric sheet sizes are designated as A0,B1,C2,D3,E4 - ANSWER False
There frequently is not room for descriptive modifiers of sections to be inserted
in the title block - ANSWER False
A quadrilateral with no sides parallel is called a trapezium - ANSWER True
On the surface of a cylinder, a screw thread takes the shape of a helix.
Orthographic projection is the underlying system behind multi view drawings -
ANSWER True
Auxiliary views cannot be dimensioned due to their particular orientation -
ANSWER False
All American thread forms are standardized in one ASME document -
ANSWER False
The lead of a triple thread is 1.5 times the pitch - ANSWER False
Common means of generating duplicates involves a light process and a
particular print paper coated with blank..compound - ANSWER Diazo
An electronic print or painting that is essentially made up of tiny dots or pixels
rather than vectors is called an ANSWER Easter image.
Voluntary guideline that sets the method of representation for prints as well as
other technical practices is a - ANSWER Standard
Identify the line below that is to be drawn thick - ANSWER Cutting plane line
Most essential line in an industrial print - ANSWER Visible line
