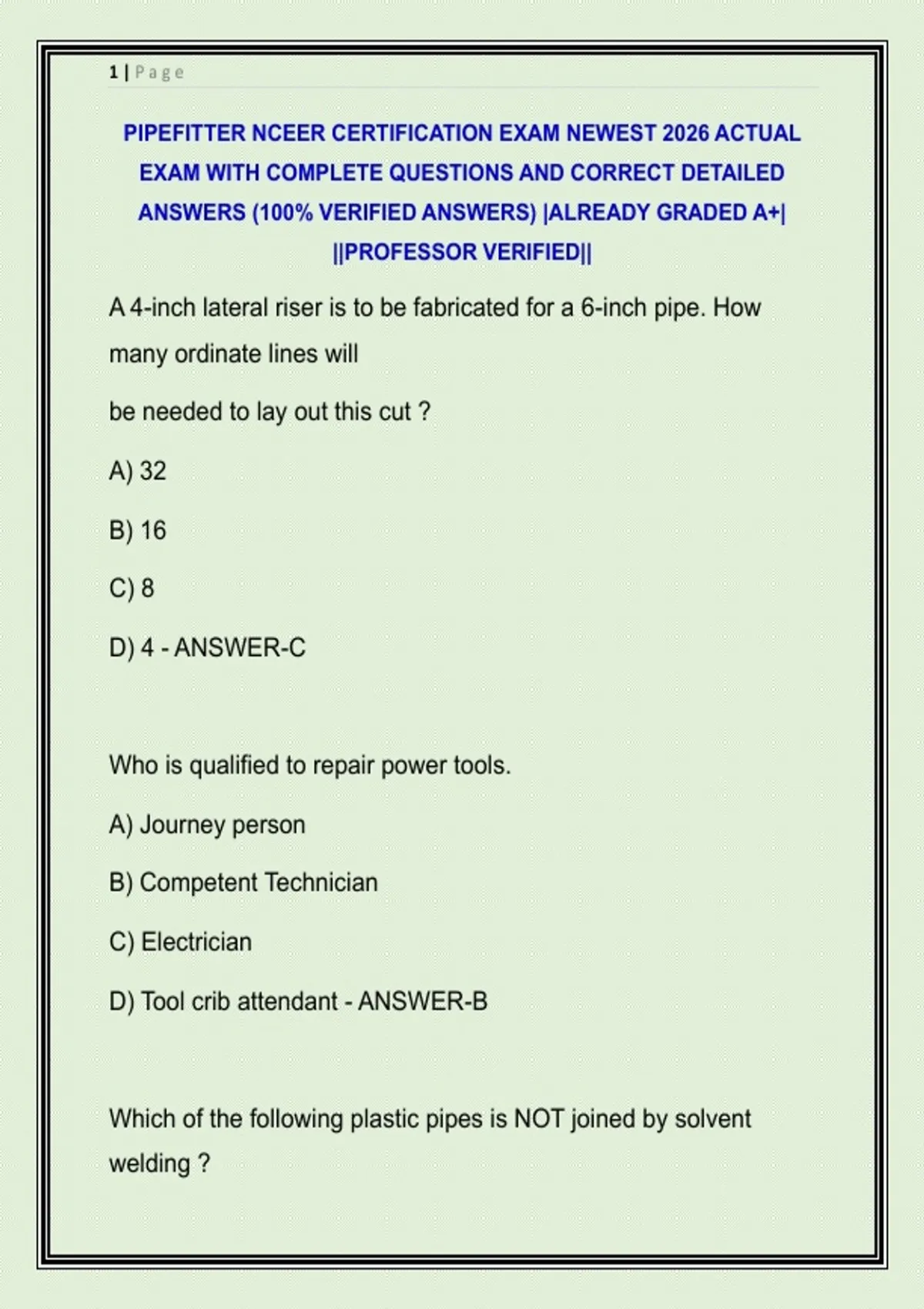

PIPEFITTER NCEER CERTIFICATION EXAM NEWEST 2026 ACTUAL
EXAM WITH COMPLETE QUESTIONS AND CORRECT DETAILED
ANSWERS (100% VERIFIED ANSWERS) |ALREADY GRADED A+|
||PROFESSOR VERIFIED||
A 4-inch lateral riser is to be fabricated for a 6-inch pipe. How
many ordinate lines will
be needed to lay out this cut ?
A) 32
B) 16
C) 8
D) 4 - ANSWER-C
Who is qualified to repair power tools.
A) Journey person
B) Competent Technician
C) Electrician
D) Tool crib attendant - ANSWER-B
Which of the following plastic pipes is NOT joined by solvent
welding ?
,2|Page
A) PVC
B) HDPE
C) CPVC
D) ABS - ANSWER-B
Material placed in the bottom of the trench under the pipe to
provide support is called.
A) Heave
B) Sub trench
C) Trench load
D) Bedding - ANSWER-D
Socket weld joints have a gap between the end of the pipe and
the bottom of the
socket. What is the purpose of this gap ?
A) Makes assembly easier
B) Reduces flexibility at the fitting
C) Prevents weld cracking
D) Provides fit-up adjustment - ANSWER-C
,3|Page
When are rupture discs installed into a pipeline?
A) Before flushing and testing of pipeline
B) After installation of the pipeline
C) Before start-up of the system
D) After start-up of the system - ANSWER-C
Chain come-alongs are PRIMARILY designed for?
A) Lifting in close quarters
B) Vertical lifting
C) Lifting in any location
D) Horizontal lifting - ANSWER-B
Which of the following types of copper tubing has the thickest wall
A) K
B) L
C) M
D) Acr - ANSWER-A
, 4|Page
What is the MINIMUM grade of chain that may be used for rigging
loads overhead?
A) 5
B) 6
C) 7
D) 8 - ANSWER-D
At and above what norminal pipe size is the O.D. of the pipe the
same as the norminal
size of the pipe.
A) 10''
B) 12''
C) 14''
D) 16'' - ANSWER-C
Which type of field sketch has base lines that are 30 degrees to
the horizontal axis?
A) Orthographic
