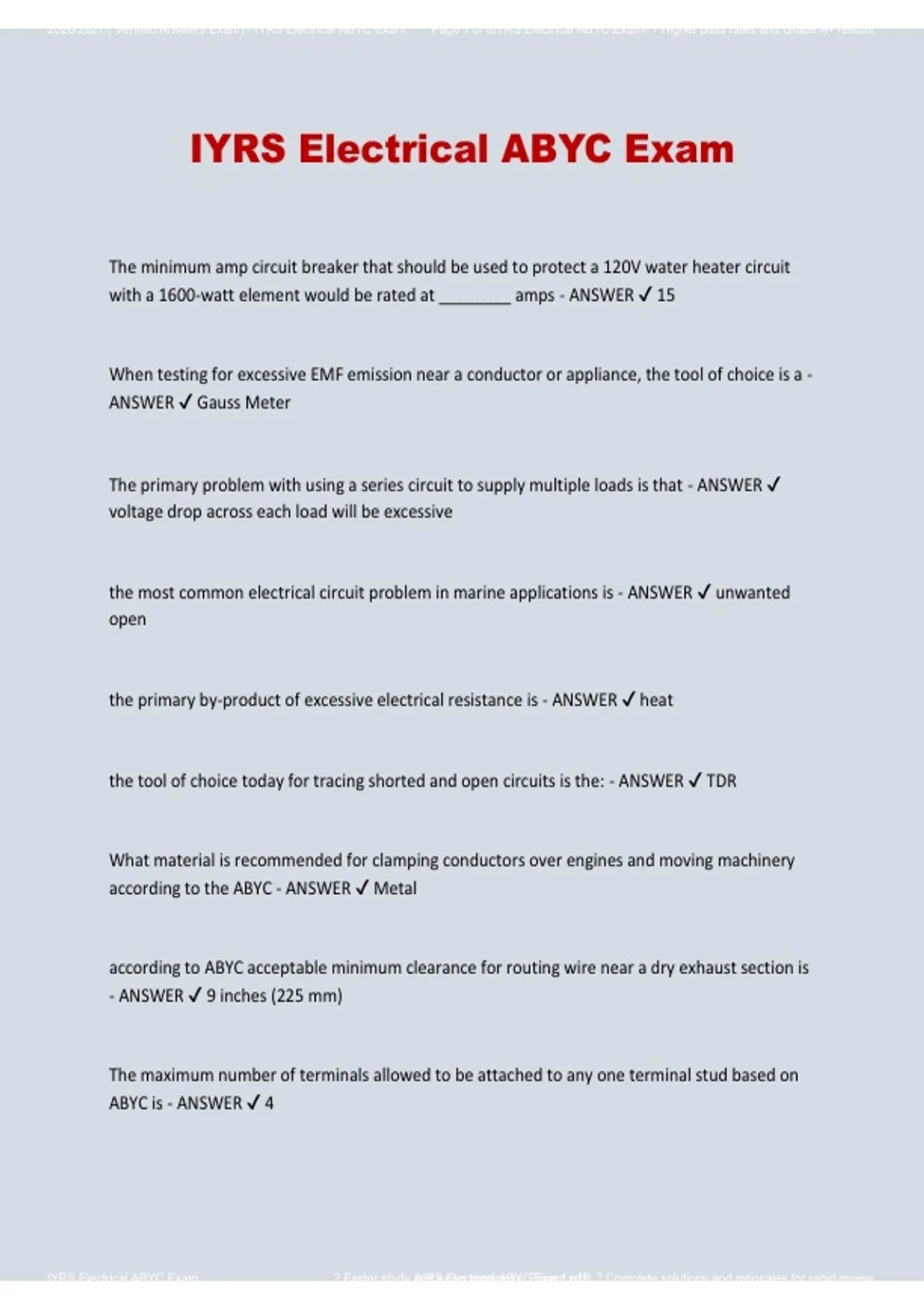

IYRS Electrical ABYC Exam
The minimum amp circuit breaker that should be used to protect a 120V water heater circuit
with a 1600-watt element would be rated at ________ amps - ANSWER ✔ 15
When testing for excessive EMF emission near a conductor or appliance, the tool of choice is a -
ANSWER ✔ Gauss Meter
The primary problem with using a series circuit to supply multiple loads is that - ANSWER ✔
voltage drop across each load will be excessive
the most common electrical circuit problem in marine applications is - ANSWER ✔ unwanted
open
the primary by-product of excessive electrical resistance is - ANSWER ✔ heat
the tool of choice today for tracing shorted and open circuits is the: - ANSWER ✔ TDR
What material is recommended for clamping conductors over engines and moving machinery
according to the ABYC - ANSWER ✔ Metal
according to ABYC acceptable minimum clearance for routing wire near a dry exhaust section is
- ANSWER ✔ 9 inches (225 mm)
The maximum number of terminals allowed to be attached to any one terminal stud based on
ABYC is - ANSWER ✔ 4
IYRS Electrical ABYC Exam ? Faster study and
IYRSexam
Electrical
readiness:
ABYCPage
Exam.pdf
1 of 8: ? Complete solutions and rationales for rapid review.
, 2026/2027:( Verified Answers Exam) - IYRS Electrical ABYC Exam Page 2 of 8IYRS Electrical ABYC Exam- ? Higher pass rates and Grade A+ results.
How much current should flow through the
DC grounding conductor in a 25-amp DC motor circuit - ANSWER ✔ 0 amps
conductors of #10 AWG and larger shall be permitted to be connected in parallel ______ -
ANSWER ✔ Where the ampacity of each individual conductor is sufficient to carry the entire
load current shared by the parallel conductors
A technician is installing the cable run from the batteries to the main DC panelboard on a boat
aspart of a refit. The boat has a 12-volt system, and the distance from the panel to the batteries
is 15 ft (approximately 3 m).The maximum current draw from the panel is calculated at 90
amps.What gauge cable should be used at a minimum to maintain Standards compliance? -
ANSWER ✔ 0 AWG
8. DC grounded conductors on new boats that are also equipped with AC systems should use
_________ insulation. - ANSWER ✔ yellow
the maximum spacing for cable run support based on ABYC is - ANSWER ✔ 16 inches (400 mm)
the smallest gauge cable allowed for unsheathed wire runs through the boat is - ANSWER ✔ 16
AWG
The maximum sustained charging voltage acceptable to some gel cell battery manufacturers is -
ANSWER ✔ 14.1
Sheathed, ungrounded conductors connected directly to a battery must have overcurrent
protection devices located within _______ of connection to the battery - ANSWER ✔ 40 Inches
on a battery where a hydrometer can be used, a cell reading of 0.050 points of a specific gravity
below all of the other cells in the battery may indicate - ANSWER ✔ A bad cell and battery
replacement needed
IYRS Electrical ABYC Exam ? Faster study and
IYRSexam
Electrical
readiness:
ABYCPage
Exam.pdf
2 of 8: ? Complete solutions and rationales for rapid review.
IYRS Electrical ABYC Exam
The minimum amp circuit breaker that should be used to protect a 120V water heater circuit
with a 1600-watt element would be rated at ________ amps - ANSWER ✔ 15
When testing for excessive EMF emission near a conductor or appliance, the tool of choice is a -
ANSWER ✔ Gauss Meter
The primary problem with using a series circuit to supply multiple loads is that - ANSWER ✔
voltage drop across each load will be excessive
the most common electrical circuit problem in marine applications is - ANSWER ✔ unwanted
open
the primary by-product of excessive electrical resistance is - ANSWER ✔ heat
the tool of choice today for tracing shorted and open circuits is the: - ANSWER ✔ TDR
What material is recommended for clamping conductors over engines and moving machinery
according to the ABYC - ANSWER ✔ Metal
according to ABYC acceptable minimum clearance for routing wire near a dry exhaust section is
- ANSWER ✔ 9 inches (225 mm)
The maximum number of terminals allowed to be attached to any one terminal stud based on
ABYC is - ANSWER ✔ 4
IYRS Electrical ABYC Exam ? Faster study and
IYRSexam
Electrical
readiness:
ABYCPage
Exam.pdf
1 of 8: ? Complete solutions and rationales for rapid review.
, 2026/2027:( Verified Answers Exam) - IYRS Electrical ABYC Exam Page 2 of 8IYRS Electrical ABYC Exam- ? Higher pass rates and Grade A+ results.
How much current should flow through the
DC grounding conductor in a 25-amp DC motor circuit - ANSWER ✔ 0 amps
conductors of #10 AWG and larger shall be permitted to be connected in parallel ______ -
ANSWER ✔ Where the ampacity of each individual conductor is sufficient to carry the entire
load current shared by the parallel conductors
A technician is installing the cable run from the batteries to the main DC panelboard on a boat
aspart of a refit. The boat has a 12-volt system, and the distance from the panel to the batteries
is 15 ft (approximately 3 m).The maximum current draw from the panel is calculated at 90
amps.What gauge cable should be used at a minimum to maintain Standards compliance? -
ANSWER ✔ 0 AWG
8. DC grounded conductors on new boats that are also equipped with AC systems should use
_________ insulation. - ANSWER ✔ yellow
the maximum spacing for cable run support based on ABYC is - ANSWER ✔ 16 inches (400 mm)
the smallest gauge cable allowed for unsheathed wire runs through the boat is - ANSWER ✔ 16
AWG
The maximum sustained charging voltage acceptable to some gel cell battery manufacturers is -
ANSWER ✔ 14.1
Sheathed, ungrounded conductors connected directly to a battery must have overcurrent
protection devices located within _______ of connection to the battery - ANSWER ✔ 40 Inches
on a battery where a hydrometer can be used, a cell reading of 0.050 points of a specific gravity
below all of the other cells in the battery may indicate - ANSWER ✔ A bad cell and battery
replacement needed
