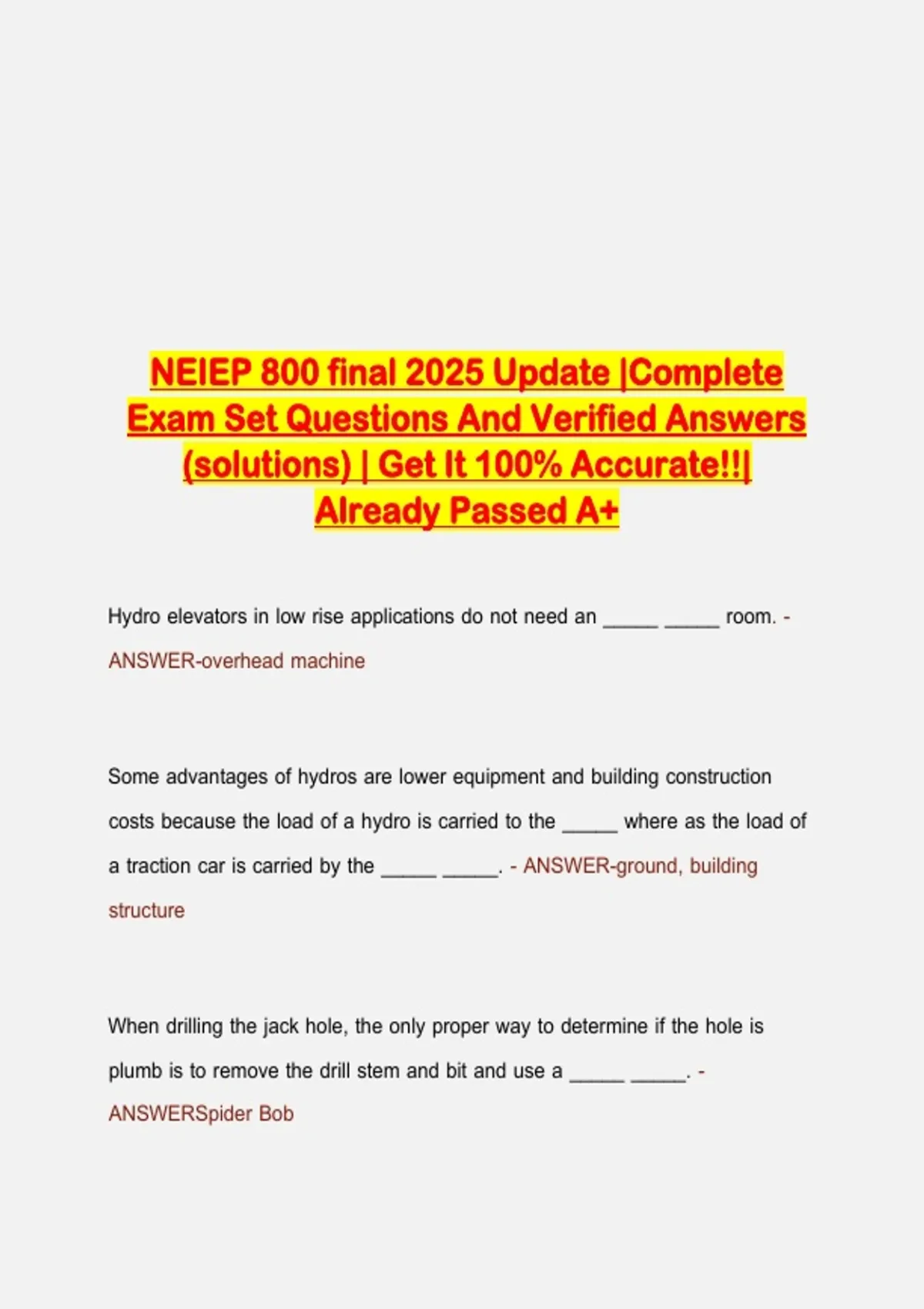

NEIEP 800 final 2025 Update |Complete
Exam Set Questions And Verified Answers
(solutions) | Get It 100% Accurate!!|
Already Passed A+
Hydro elevators in low rise applications do not need an _____ _____ room. -
ANSWER-overhead machine
Some advantages of hydros are lower equipment and building construction
costs because the load of a hydro is carried to the _____ where as the load of
a traction car is carried by the _____ _____. - ANSWER-ground, building
structure
When drilling the jack hole, the only proper way to determine if the hole is
plumb is to remove the drill stem and bit and use a _____ _____. -
ANSWERSpider Bob
,To plumb the hole, a spider bob is attached to a length of piano wire
suspended from as near as possible to the top of the _____ or from a fixed
point on the drill rig. - ANSWER-Hoistway
When welding a joint, lay _____ inch tack welds _____ degrees apart, shift it
90 degrees and lay two
more 1 inch tack welds 180 degrees apart. - ANSWER-1, 180
On power units having the motor beneath the tank, the pump may be either
_____ driven or _____ coupled. - ANSWER-belt, direct
The purpose of the _____/_____ is to silence the effect of any pulsations in the
pump output and should be as close to the pump as possible. - ANSWER-
silencer, muffler
On Bolsters/Bolster Assembly, the plunger is fastened to the _____ _____
which is then mounted to the center of the Bolster Assembly. - ANSWERplaten
plate
,With wye-delta, reduced current starting is accomplished without the need for
_____. -
ANSWER-resistors
_____ run buttons should run the platform and sling at leveling speeds only. -
ANSWER-Temporary
A _____ _____ consists of a piston held closed by an adjustable spring and
must open at a certain pressure to prevent any further increase in pressure. -
ANSWER-relief valve
A _____ lowering valve allows the car to be lowered at a speed not exceeding
20fpm in case of power failure. - ANSWER-manual
As the oil temperature changes, the _____ will change as well and will effect
the performance, more specifically, the leveling and approach of the elevator. -
ANSWER-viscosity
Be sure wellways are properly _____ to avoid accidental injury to you, your
team or anyone working outside of our industry. - ANSWERbarricaded
, Barricades around the wellway must be _____ inches high and be capable of
withstanding a _____lb force. - ANSWER-42, 200
A _____ protects you if you come in contact with a hot wire or component and
then come in contact with ground. It opens the circuit and diverts the supplied
current to ground. - ANSWER-GFCI
A _____ _____ is useful for horizontal (side-to-side) pulling of the truss while
being lowered into the wellway. - ANSWER-lever hoist
Code specifies the use of anti-slide devices if the outer edge of the deck is
greater than _____ inches from the center line of the handrail. - ANSWER-12
(True/False) Anti-slide devices must be less than 3/4" in height, have no sharp
corners or edges and fastened to the deck no closer than 4 inches from
the handrail and spaced no greater than 6ft apart. -
ANSWER-True
Sometimes referred to as sag switches, _____ _____ switches are located
within the step band of both upper and lower truss assemblies and function to
Exam Set Questions And Verified Answers
(solutions) | Get It 100% Accurate!!|
Already Passed A+
Hydro elevators in low rise applications do not need an _____ _____ room. -
ANSWER-overhead machine
Some advantages of hydros are lower equipment and building construction
costs because the load of a hydro is carried to the _____ where as the load of
a traction car is carried by the _____ _____. - ANSWER-ground, building
structure
When drilling the jack hole, the only proper way to determine if the hole is
plumb is to remove the drill stem and bit and use a _____ _____. -
ANSWERSpider Bob
,To plumb the hole, a spider bob is attached to a length of piano wire
suspended from as near as possible to the top of the _____ or from a fixed
point on the drill rig. - ANSWER-Hoistway
When welding a joint, lay _____ inch tack welds _____ degrees apart, shift it
90 degrees and lay two
more 1 inch tack welds 180 degrees apart. - ANSWER-1, 180
On power units having the motor beneath the tank, the pump may be either
_____ driven or _____ coupled. - ANSWER-belt, direct
The purpose of the _____/_____ is to silence the effect of any pulsations in the
pump output and should be as close to the pump as possible. - ANSWER-
silencer, muffler
On Bolsters/Bolster Assembly, the plunger is fastened to the _____ _____
which is then mounted to the center of the Bolster Assembly. - ANSWERplaten
plate
,With wye-delta, reduced current starting is accomplished without the need for
_____. -
ANSWER-resistors
_____ run buttons should run the platform and sling at leveling speeds only. -
ANSWER-Temporary
A _____ _____ consists of a piston held closed by an adjustable spring and
must open at a certain pressure to prevent any further increase in pressure. -
ANSWER-relief valve
A _____ lowering valve allows the car to be lowered at a speed not exceeding
20fpm in case of power failure. - ANSWER-manual
As the oil temperature changes, the _____ will change as well and will effect
the performance, more specifically, the leveling and approach of the elevator. -
ANSWER-viscosity
Be sure wellways are properly _____ to avoid accidental injury to you, your
team or anyone working outside of our industry. - ANSWERbarricaded
, Barricades around the wellway must be _____ inches high and be capable of
withstanding a _____lb force. - ANSWER-42, 200
A _____ protects you if you come in contact with a hot wire or component and
then come in contact with ground. It opens the circuit and diverts the supplied
current to ground. - ANSWER-GFCI
A _____ _____ is useful for horizontal (side-to-side) pulling of the truss while
being lowered into the wellway. - ANSWER-lever hoist
Code specifies the use of anti-slide devices if the outer edge of the deck is
greater than _____ inches from the center line of the handrail. - ANSWER-12
(True/False) Anti-slide devices must be less than 3/4" in height, have no sharp
corners or edges and fastened to the deck no closer than 4 inches from
the handrail and spaced no greater than 6ft apart. -
ANSWER-True
Sometimes referred to as sag switches, _____ _____ switches are located
within the step band of both upper and lower truss assemblies and function to
