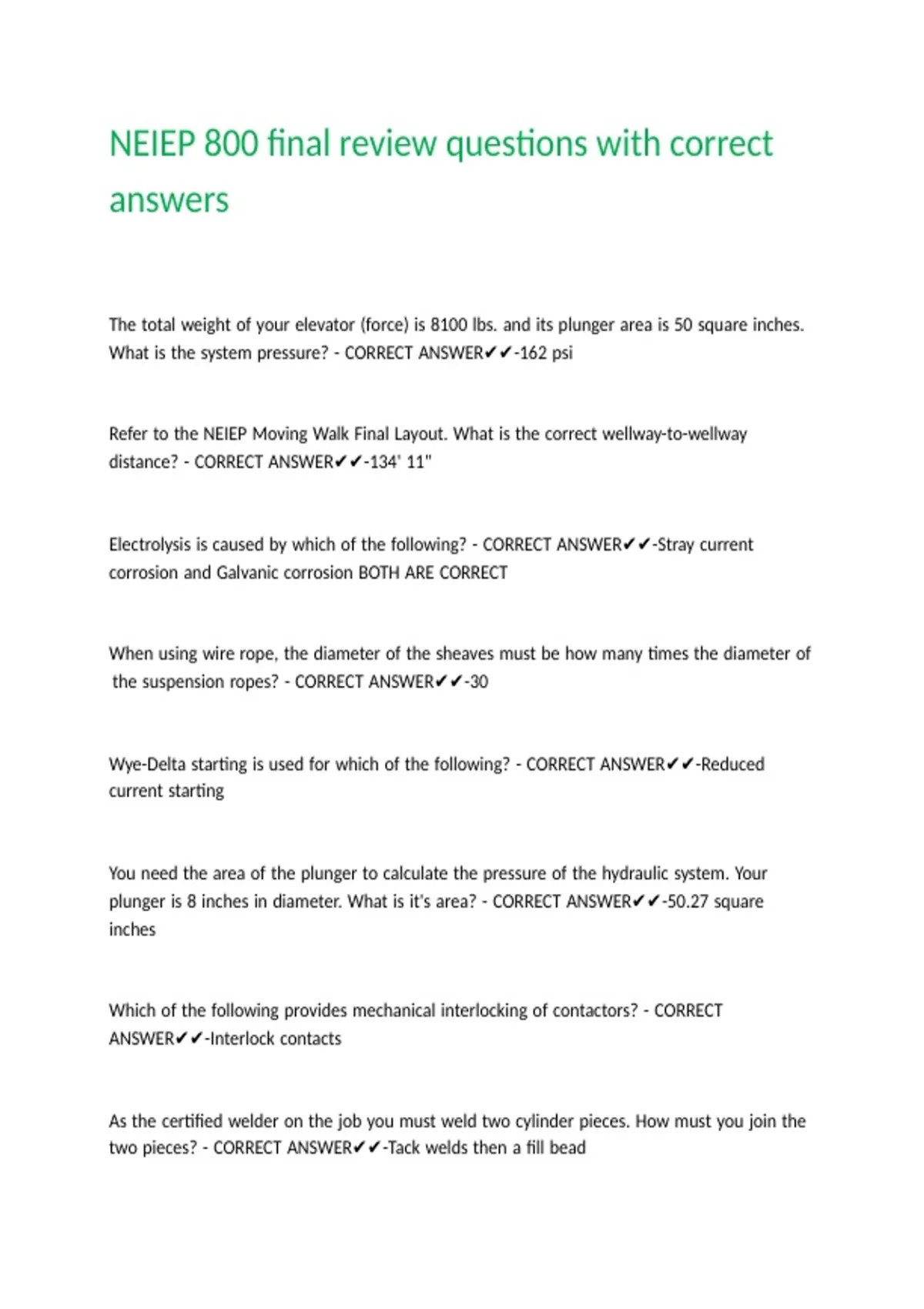

NEIEP 800 final review questions with correct
answers
The |total |weight |of |your |elevator |(force) |is |8100 |lbs. |and |its |plunger |area |is |50 |square |inches. |
What |is |the |system |pressure? |- |CORRECT |ANSWER✔✔-162 |psi
Refer |to |the |NEIEP |Moving |Walk |Final |Layout. |What |is |the |correct |wellway-to-wellway |
distance? |- |CORRECT |ANSWER✔✔-134' |11"
Electrolysis |is |caused |by |which |of |the |following? |- |CORRECT |ANSWER✔✔-Stray |current |
corrosion |and |Galvanic |corrosion |BOTH |ARE |CORRECT
When |using |wire |rope, |the |diameter |of |the |sheaves |must |be |how |many |times |the |diameter |of
|the |suspension |ropes? |- |CORRECT |ANSWER✔✔-30
Wye-Delta |starting |is |used |for |which |of |the |following? |- |CORRECT |ANSWER✔✔-Reduced |
current |starting
You |need |the |area |of |the |plunger |to |calculate |the |pressure |of |the |hydraulic |system. |Your |
plunger |is |8 |inches |in |diameter. |What |is |it's |area? |- |CORRECT |ANSWER✔✔-50.27 |square |
inches
Which |of |the |following |provides |mechanical |interlocking |of |contactors? |- |CORRECT |
ANSWER✔✔-Interlock |contacts
As |the |certified |welder |on |the |job |you |must |weld |two |cylinder |pieces. |How |must |you |join |the |
two |pieces? |- |CORRECT |ANSWER✔✔-Tack |welds |then |a |fill |bead
, Once |a |plunger |joint |has |been |completed, |what |steps |should |be |followed |to |prevent |damage |
to |the |packing? |- |CORRECT |ANSWER✔✔-Sand |with |emery |cloth
Under |which |of |the |following |conditions |will |the |buzzer |(BZT) |sound? |- |CORRECT |ANSWER✔✔-
When |the |handrail |speed |is |15% |below |step |speed.
Refer |to |the |NEIEP |Escalator |Final |Layout |diagram. |What |is |the |total |distance |from |the |first |
floor |finished |floor |height |and |the |second |floor |finished |floor |height? |- |CORRECT |ANSWER✔✔-
13' |6"
Refer |to |the |NEIEP |Escalator |Final |Layout |diagram. |What |is |the |correct |measurement |to |align |
the |truss |in |the |center |of |the |wellway? |- |CORRECT |ANSWER✔✔-7' |6 |1/2"
What |is |the |function |of |the |lower |newel |wheel |on |a |moving |walk |with |solid |balustrades? |- |
CORRECT |ANSWER✔✔-It |acts |as |an |idler
Which |of |the |following |will |determine |the |leveling |speed |of |an |elevator? |- |CORRECT |
ANSWER✔✔-Rate |of |flow |in |gpm
Which |of |the |following |best |describes |the |rack |and |pinion |drive |motor |brake? |- |CORRECT |
ANSWER✔✔-It |is |spring |set |and |electrically |released
Car |door |switches |in |LULA |elevators |are |required |to |operate |no |more |than |how |many |inches |
from |full |closed? |- |- |CORRECT |ANSWER✔✔-2"
What |is |the |maximum |rated |capacity |of |an |inclined |platform |lift? |- |CORRECT |ANSWER✔✔-750 |
Ibs..
