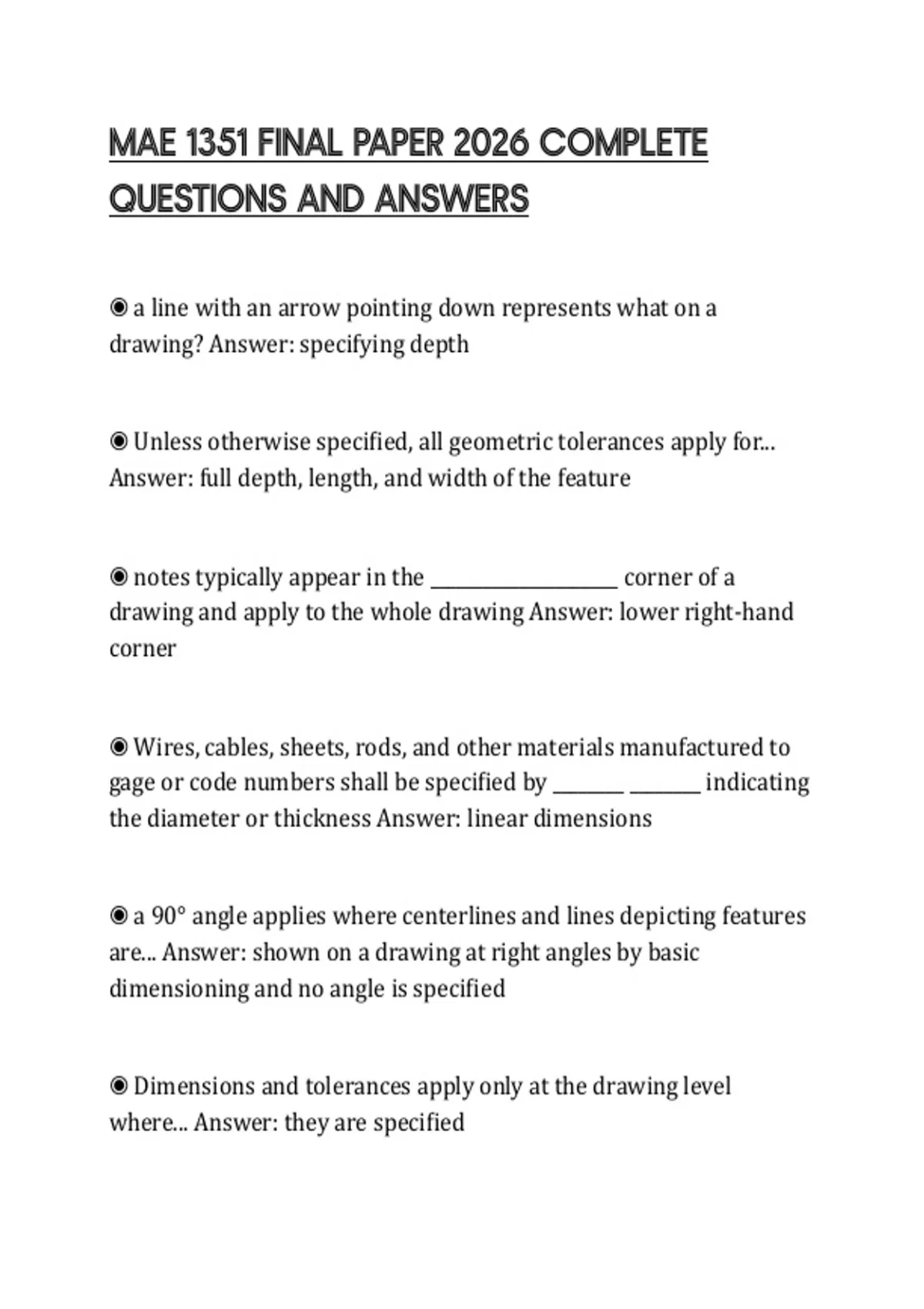

MAE 1351 FINAL PAPER 2026 COMPLETE
QUESTIONS AND ANSWERS
◉ a line with an arrow pointing down represents what on a
drawing? Answer: specifying depth
◉ Unless otherwise specified, all geometric tolerances apply for...
Answer: full depth, length, and width of the feature
◉ notes typically appear in the _____________________ corner of a
drawing and apply to the whole drawing Answer: lower right-hand
corner
◉ Wires, cables, sheets, rods, and other materials manufactured to
gage or code numbers shall be specified by ________ ________ indicating
the diameter or thickness Answer: linear dimensions
◉ a 90° angle applies where centerlines and lines depicting features
are... Answer: shown on a drawing at right angles by basic
dimensioning and no angle is specified
◉ Dimensions and tolerances apply only at the drawing level
where... Answer: they are specified
, ◉ A dimension specified for a given feature on one level of drawing
is Answer: not mandatory for that feature at any other level
◉ All dimensions and tolerances apply in a _____ _____ condition (this
principle does not apply to non-rigid parts) Answer: free state
◉ In an engineering drawing, every dimension must have a
tolerance. True? Answer: yes, every single one
◉ Best practice is to dimension hole features in the view where they
show in the drawing as... Answer: circles
◉ Best practice is to dimension cylindrical (solid) features in the
view where they show as... Answer: rectangles
◉ The nomenclature "TYP" or "TYPICAL OF" indicates... Answer:
That a feature is repeated exactly in the drawing a certain number of
times
◉ dimensions in an engineering drawing are assumed to be at...
Answer: room temperature and pressure
◉ In a unilateral tolerance, all of the deviation... Answer: is in one
direction from the basic size
