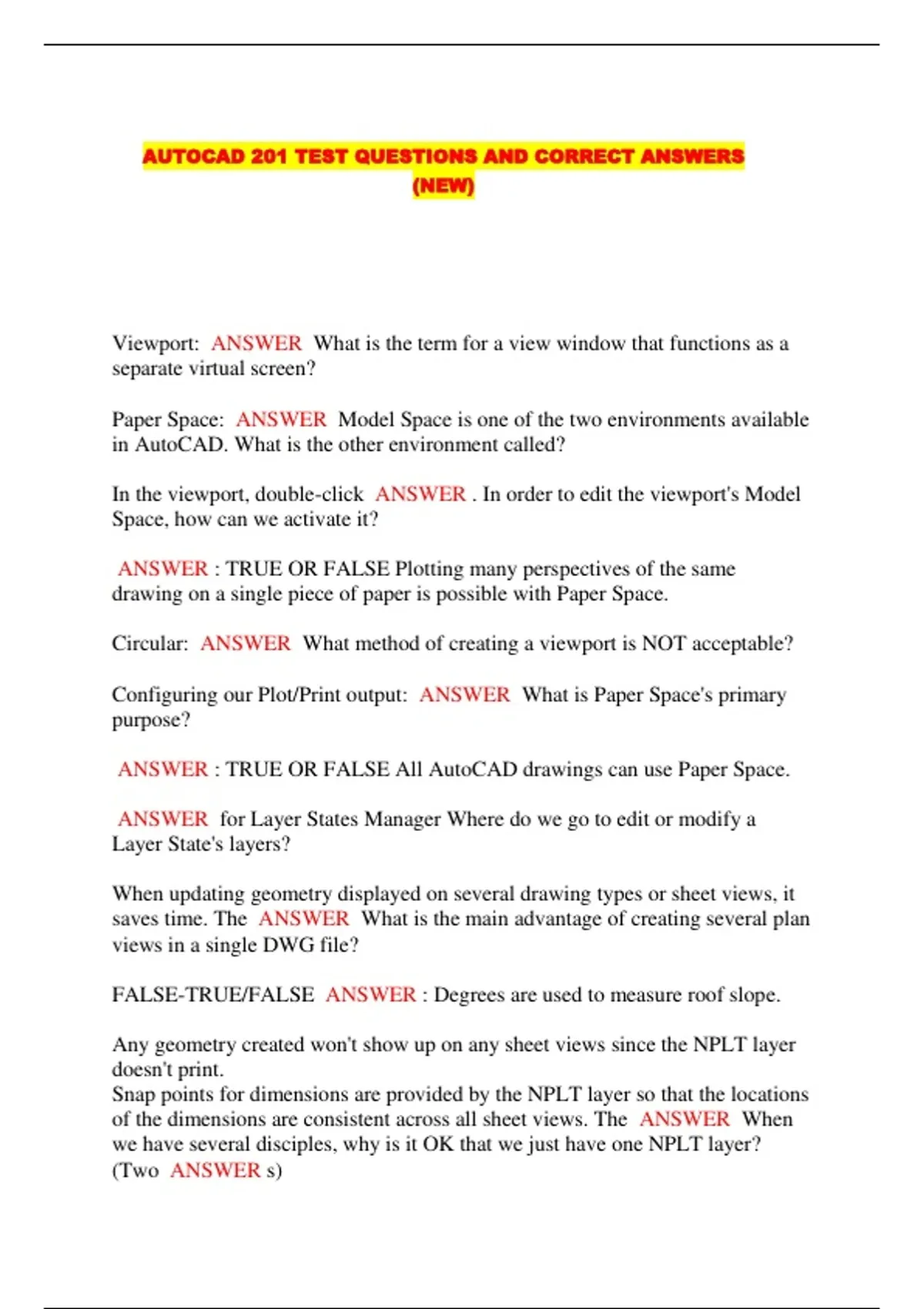

AUTOCAD 201 TEST QUESTIONS AND CORRECT ANSWERS
(NEW)
Viewport: ANSWER What is the term for a view window that functions as a
separate virtual screen?
Paper Space: ANSWER Model Space is one of the two environments available
in AutoCAD. What is the other environment called?
In the viewport, double-click ANSWER . In order to edit the viewport's Model
Space, how can we activate it?
ANSWER : TRUE OR FALSE Plotting many perspectives of the same
drawing on a single piece of paper is possible with Paper Space.
Circular: ANSWER What method of creating a viewport is NOT acceptable?
Configuring our Plot/Print output: ANSWER What is Paper Space's primary
purpose?
ANSWER : TRUE OR FALSE All AutoCAD drawings can use Paper Space.
ANSWER for Layer States Manager Where do we go to edit or modify a
Layer State's layers?
When updating geometry displayed on several drawing types or sheet views, it
saves time. The ANSWER What is the main advantage of creating several plan
views in a single DWG file?
FALSE-TRUE/FALSE ANSWER : Degrees are used to measure roof slope.
Any geometry created won't show up on any sheet views since the NPLT layer
doesn't print.
Snap points for dimensions are provided by the NPLT layer so that the locations
of the dimensions are consistent across all sheet views. The ANSWER When
we have several disciples, why is it OK that we just have one NPLT layer?
(Two ANSWER s)
