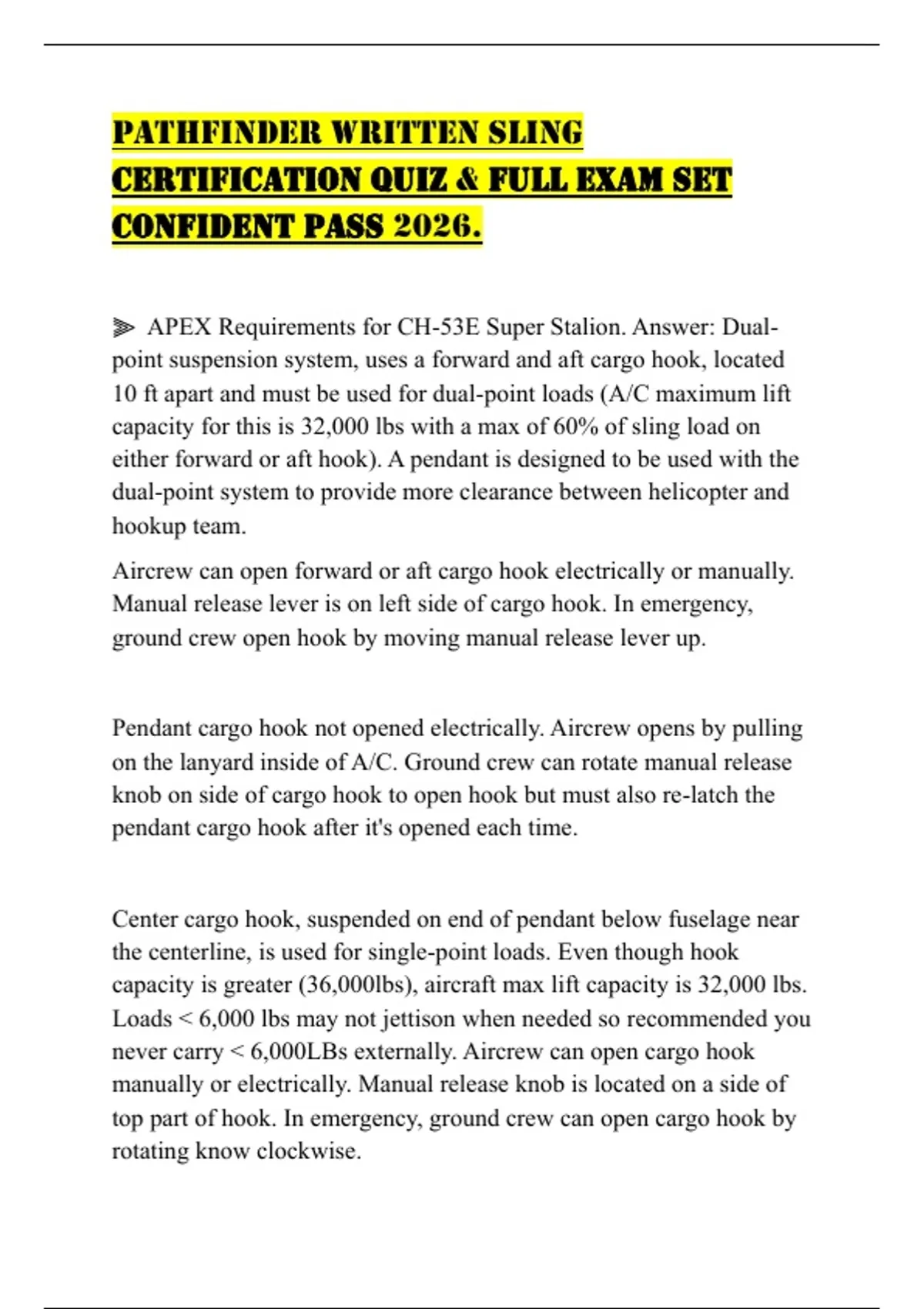

PATHFINDER WRITTEN SLING
CERTIFICATION QUIZ & FULL EXAM SET
CONFIDENT PASS 2026.
⫸ APEX Requirements for CH-53E Super Stalion. Answer: Dual-
point suspension system, uses a forward and aft cargo hook, located
10 ft apart and must be used for dual-point loads (A/C maximum lift
capacity for this is 32,000 lbs with a max of 60% of sling load on
either forward or aft hook). A pendant is designed to be used with the
dual-point system to provide more clearance between helicopter and
hookup team.
Aircrew can open forward or aft cargo hook electrically or manually.
Manual release lever is on left side of cargo hook. In emergency,
ground crew open hook by moving manual release lever up.
Pendant cargo hook not opened electrically. Aircrew opens by pulling
on the lanyard inside of A/C. Ground crew can rotate manual release
knob on side of cargo hook to open hook but must also re-latch the
pendant cargo hook after it's opened each time.
Center cargo hook, suspended on end of pendant below fuselage near
the centerline, is used for single-point loads. Even though hook
capacity is greater (36,000lbs), aircraft max lift capacity is 32,000 lbs.
Loads < 6,000 lbs may not jettison when needed so recommended you
never carry < 6,000LBs externally. Aircrew can open cargo hook
manually or electrically. Manual release knob is located on a side of
top part of hook. In emergency, ground crew can open cargo hook by
rotating know clockwise.
,*NOTES* When attaching dual point loads to CH-53E/K and *NOT*
using CHRP, each hook being utilized MUST have its own static
discharge man.
Do *NOT* attach single point loads to CH-53E if there is a nylon
point of attachment to A/C
⫸ CH-53E Cargo Hook Locations and Rated Capacities. Answer: -
Center Cargo Hook: 36,000 lbs
- Fore and Aft Cargo Hook Combined: 32,000 lbs
- Fore and Aft Cargo Hooks are 10 ft apart
⫸ APEX Requirements for CH-46A/D/E Sea Knight. Answer: It's a
twin engine, tandem rotor helicopter. Cargo hook max capacity is
10,000 lbs. *AC6000500 Mod-1* pendant may be used.
Cargo hook normally opened electrically or manually by aircrew.
Manual release cable is mounted on top of cargo hook and is only
accessible to aircrew.
*NOTE* Do NOT attach loads if there is a nylon point of attachment
to aircraft.
⫸ CH-46 Cargo Hook Assembly Rated Capacity. Answer: 10,000lbs
,⫸ Rated Capacity, Length, Weight of AC6000500 Mod-1 Pendant.
Answer: - Rated Capacity: 12,000lbs
- Length 8 ft
- Weight: 53lbs
⫸ What is the one type of nylon flat-web sling authorized for rigging
external loads?. Answer: Type XXVI nylon multi-loop line
⫸ Characteristics of Type XXVI nylon multi-loop line. Answer: -
Yellow thread stitched lengthwise along the middle of strap
- Nylon or cotton buffer must be present on inside of nylon web strap
to help prevent damage to sling
*NOTE* Multi-loop lines that don't have colored lengthwise stitch are
Type X Nylon Aerial Delivery Slings and are NOT authorized for
rigging of external loads.
⫸ Rated Capacity, Thickness, and Available Lengths of Pendant 2-
Loop Multi-Loop Slings. Answer: Rated Capacity: 8,900 lbs
Thickness: 4
Available Lengths: 3, 9, 11, 12, 16, 20, 120 ft
⫸ Rated Capacity, Thickness, and Available Lengths of Pendant 3-
Loop Multi-Loop Slings. Answer: Rated Capacity: 13,500 lbs
Thickness: 6
Available Lengths: 60, 140 ft
, ⫸ Rated Capacity, Thickness, and Available Lengths of Pendant 4-
Loop Multi-Loop Slings. Answer: Rated Capacity: 17,800 lbs
Thickness: 8
Available Lengths: 3, 9, 11, 12, 16, 20, 28 ft
⫸ Rated Capacity, Thickness, and Available Lengths of Pendant 6-
Loop Multi-Loop Slings. Answer: Rated Capacity: 27,000 lbs
Thickness: 12
Available Lengths: 60, 120 ft
⫸ Rated Capacity, Thickness, and Available Lengths of Part of Sling
Set 2-Loop Multi-Loop Slings. Answer: Rated Capacity: 5,600 lbs
Thickness: 4
Available Lengths: 3, 9, 11, 16, 20, 120 ft
⫸ Rated Capacity, Thickness, and Available Lengths of Part of Sling
Set 3-Loop Multi-Loop Slings. Answer: Rated Capacity: 8,500 lbs
Thickness: 6
Available Lengths: 60, 140
⫸ Rated Capacity, Thickness, and Available Lengths of Part of Sling
Set 4-Loop Multi-Loop Slings. Answer: Rated Capacity: 11,200 lbs
Thickness: 8
Available Lengths: 3, 9, 11, 12, 16, 20, 28
