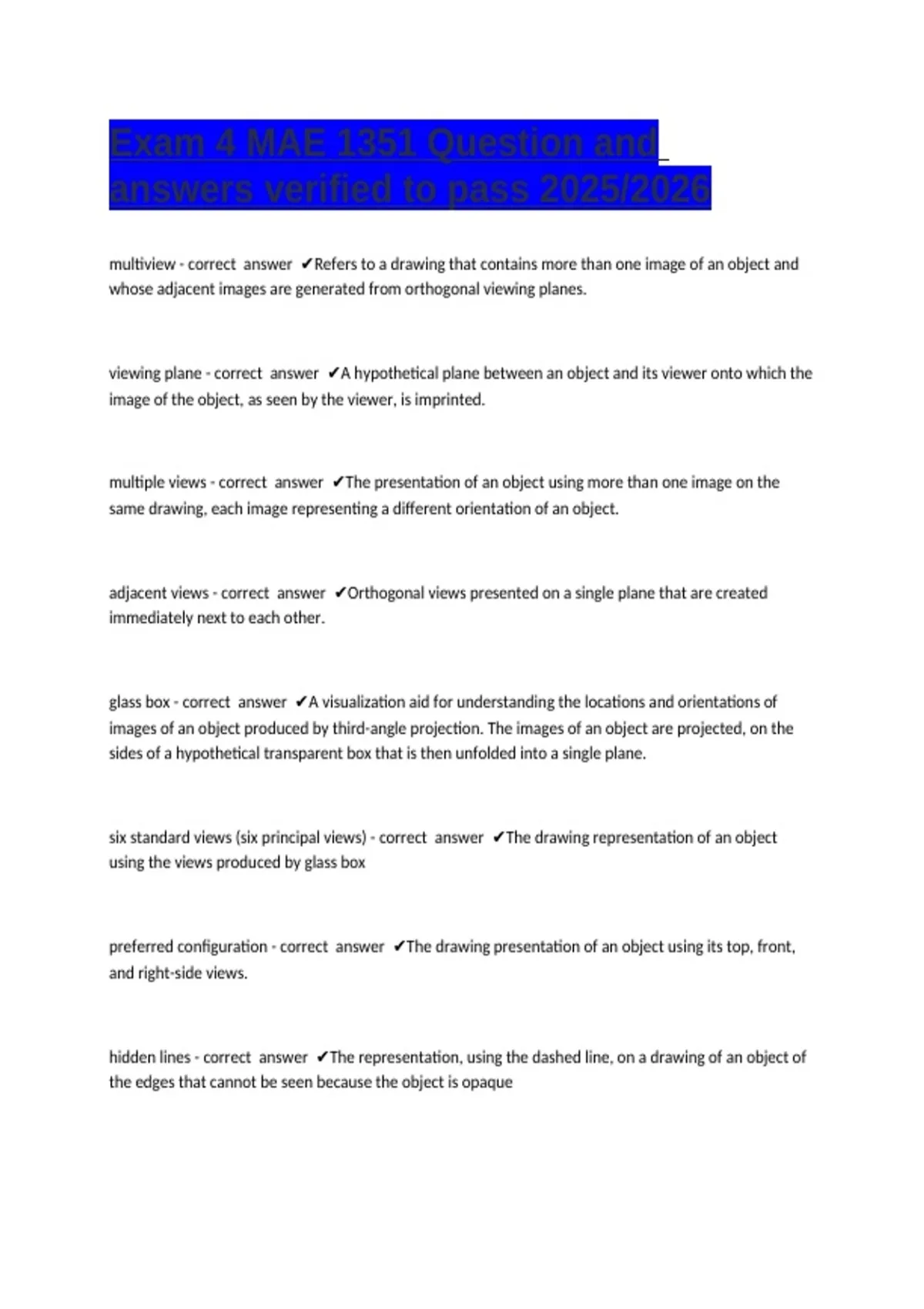

Exam 4 MAE 1351 Question and
answers verified to pass 2025/2026
multiview - correct answer ✔Refers to a drawing that contains more than one image of an object and
whose adjacent images are generated from orthogonal viewing planes.
viewing plane - correct answer ✔A hypothetical plane between an object and its viewer onto which the
image of the object, as seen by the viewer, is imprinted.
multiple views - correct answer ✔The presentation of an object using more than one image on the
same drawing, each image representing a different orientation of an object.
adjacent views - correct answer ✔Orthogonal views presented on a single plane that are created
immediately next to each other.
glass box - correct answer ✔A visualization aid for understanding the locations and orientations of
images of an object produced by third-angle projection. The images of an object are projected, on the
sides of a hypothetical transparent box that is then unfolded into a single plane.
six standard views (six principal views) - correct answer ✔The drawing representation of an object
using the views produced by glass box
preferred configuration - correct answer ✔The drawing presentation of an object using its top, front,
and right-side views.
hidden lines - correct answer ✔The representation, using the dashed line, on a drawing of an object of
the edges that cannot be seen because the object is opaque
, centerlines - correct answer ✔A series of alternating long and short dashed lines used to identify an
axis of rotational symmetry
centermark - correct answer ✔A small right-angle cross that is used to identify the end view of axis of
rotational symmetry
third-angle projection - correct answer ✔The process of creating a view of an object by imprinting its
image, using orthogonal projection, on a translucent surface in front of that object..
first-angle projection - correct answer ✔The process of creating a view of an object by imprinting its
image, using orthogonal projection, on an opaque surface behind that object
international sheet sizes - correct answer ✔The internationally accepted paper dimensions used when
drawings are created or printed to their intended size
portrait - correct answer ✔The drawing orientiation in which the vertical size is larger than the
horizontal size
landscape - correct answer ✔The drawing orientation in which the horizontal size is larger than the
vertical size
US sheet sizes - correct answer ✔The accepted paper dimensions used in the United States when
drawings are created or printed to their intended sizes
header - correct answer ✔A premade outline on which working drawings are created to ensure that all
information required for fabrication and record keeping is entered
border - correct answer ✔A thick line that define the perimeter of the drawing
