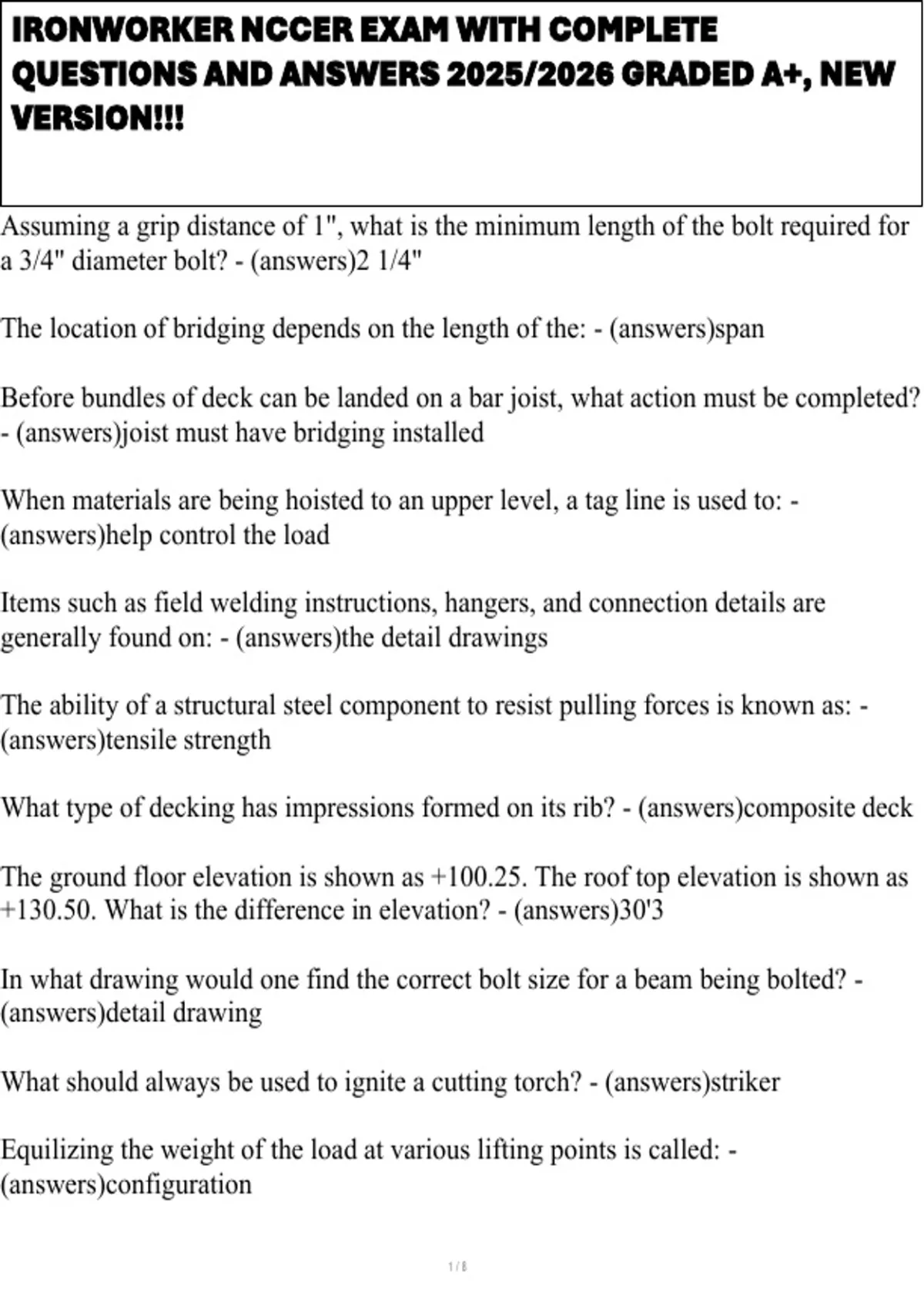

IRONWORKER NCCER EXAM WITH COMPLETE
QUESTIONS AND ANSWERS 2025/2026 GRADED A+, NEW
VERSION!!!
Assuming a grip distance of 1", what is the minimum length of the bolt required for
a 3/4" diameter bolt? - (answers)2 1/4"
The location of bridging depends on the length of the: - (answers)span
Before bundles of deck can be landed on a bar joist, what action must be completed?
- (answers)joist must have bridging installed
When materials are being hoisted to an upper level, a tag line is used to: -
(answers)help control the load
Items such as field welding instructions, hangers, and connection details are
generally found on: - (answers)the detail drawings
The ability of a structural steel component to resist pulling forces is known as: -
(answers)tensile strength
What type of decking has impressions formed on its rib? - (answers)composite deck
The ground floor elevation is shown as +100.25. The roof top elevation is shown as
+130.50. What is the difference in elevation? - (answers)30'3
In what drawing would one find the correct bolt size for a beam being bolted? -
(answers)detail drawing
What should always be used to ignite a cutting torch? - (answers)striker
Equilizing the weight of the load at various lifting points is called: -
(answers)configuration
1/8
, IRONWORKER NCCER EXAM WITH COMPLETE
QUESTIONS AND ANSWERS 2025/2026 GRADED A+, NEW
VERSION!!!
A combination square without a protractor head is used to layout: - (answers)45
degree lines
Prior to inspection it is good practice to test all studs with what method? -
(answers)ping test
Where is the fulcrum or pivot point on a forklift? - (answers)the front axle
A document that outlines weights, crane configuration and rigging requirements for
a lift is called an: - (answers)lift plan
Where can the bolting methods regarding structural steel usually be found ? -
(answers)in the general notes of the structural drawings
When establishing elevations of structural steel members, the reference point used to
determine all other elevations is called? - (answers)the benchmark
What is the surface area of a rectangle with the dimensions of 30'6" tall and 6 feet
wide? - (answers)183ft
Measurements from the center of the cranes axis of rotation to the center of the load
line with the load applied is: - (answers)load radius
Which of the following tools would be used to pry steel into place? -
(answers)sleever bar
When traveling to pick up a load always keep the: - (answers)forks low
What type of drawing shows the precise dimensions of a section or part of the larger
plan? - (answers)detail
2/8
QUESTIONS AND ANSWERS 2025/2026 GRADED A+, NEW
VERSION!!!
Assuming a grip distance of 1", what is the minimum length of the bolt required for
a 3/4" diameter bolt? - (answers)2 1/4"
The location of bridging depends on the length of the: - (answers)span
Before bundles of deck can be landed on a bar joist, what action must be completed?
- (answers)joist must have bridging installed
When materials are being hoisted to an upper level, a tag line is used to: -
(answers)help control the load
Items such as field welding instructions, hangers, and connection details are
generally found on: - (answers)the detail drawings
The ability of a structural steel component to resist pulling forces is known as: -
(answers)tensile strength
What type of decking has impressions formed on its rib? - (answers)composite deck
The ground floor elevation is shown as +100.25. The roof top elevation is shown as
+130.50. What is the difference in elevation? - (answers)30'3
In what drawing would one find the correct bolt size for a beam being bolted? -
(answers)detail drawing
What should always be used to ignite a cutting torch? - (answers)striker
Equilizing the weight of the load at various lifting points is called: -
(answers)configuration
1/8
, IRONWORKER NCCER EXAM WITH COMPLETE
QUESTIONS AND ANSWERS 2025/2026 GRADED A+, NEW
VERSION!!!
A combination square without a protractor head is used to layout: - (answers)45
degree lines
Prior to inspection it is good practice to test all studs with what method? -
(answers)ping test
Where is the fulcrum or pivot point on a forklift? - (answers)the front axle
A document that outlines weights, crane configuration and rigging requirements for
a lift is called an: - (answers)lift plan
Where can the bolting methods regarding structural steel usually be found ? -
(answers)in the general notes of the structural drawings
When establishing elevations of structural steel members, the reference point used to
determine all other elevations is called? - (answers)the benchmark
What is the surface area of a rectangle with the dimensions of 30'6" tall and 6 feet
wide? - (answers)183ft
Measurements from the center of the cranes axis of rotation to the center of the load
line with the load applied is: - (answers)load radius
Which of the following tools would be used to pry steel into place? -
(answers)sleever bar
When traveling to pick up a load always keep the: - (answers)forks low
What type of drawing shows the precise dimensions of a section or part of the larger
plan? - (answers)detail
2/8
