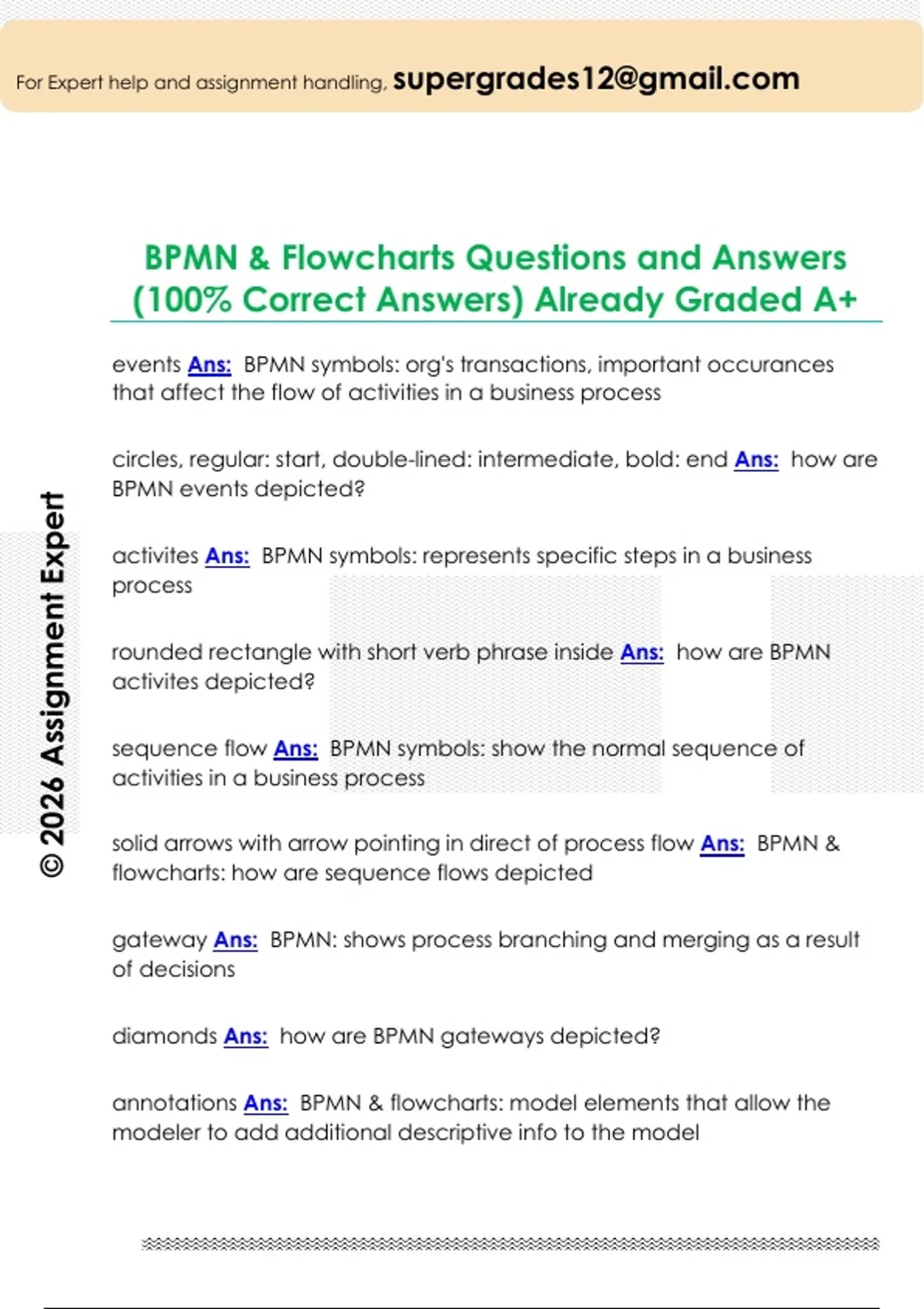

BPMN & Flowcharts Questions and Answers
(100% Correct Answers) Already Graded A+
events Ans: BPMN symbols: org's transactions, important occurances
that affect the flow of activities in a business process
circles, regular: start, double-lined: intermediate, bold: end Ans: how are
BPMN events depicted?
© 2026 Assignment Expert
activites Ans: BPMN symbols: represents specific steps in a business
process
Guru01 - Stuvia
rounded rectangle with short verb phrase inside Ans: how are BPMN
activites depicted?
sequence flow Ans: BPMN symbols: show the normal sequence of
activities in a business process
solid arrows with arrow pointing in direct of process flow Ans: BPMN &
flowcharts: how are sequence flows depicted
gateway Ans: BPMN: shows process branching and merging as a result
of decisions
diamonds Ans: how are BPMN gateways depicted?
annotations Ans: BPMN & flowcharts: model elements that allow the
modeler to add additional descriptive info to the model
, For Expert help and assignment handling,
2
with text inside a bracket Ans: how are BPMN annotations depicted?
exclusive gateway Ans: BPMN: gateway where ONLY ONE path can be
taken
pools Ans: BPMN: used to identify participants, actors, or persons that
perform activites and interact with other participants in a process
swimlanes/lanes Ans: BPMN: identifies subdivisions/depts/individuals of
© 2026 Assignment Expert
organizations
rows Ans: how are BPMN lanes depicted?
Guru01 - Stuvia
message flows Ans: BPMN: exchanges between two pools in the same
process
dashed arrows Ans: how are BPMN message & sequence flows
depicted?
sequence flow Ans: BPMN: exchanges between two lanes in the pool
flowcharts Ans: visualizations of a process activity
sequence flows (NOT message flows) Ans: token concept: tokens flow
across ______ flows
focus on one process, clearly identify events that start/stop process,
token concept, label activities clearly/simply, model frequently with
accuracy and feedback Ans: BPMN best practices (6)
