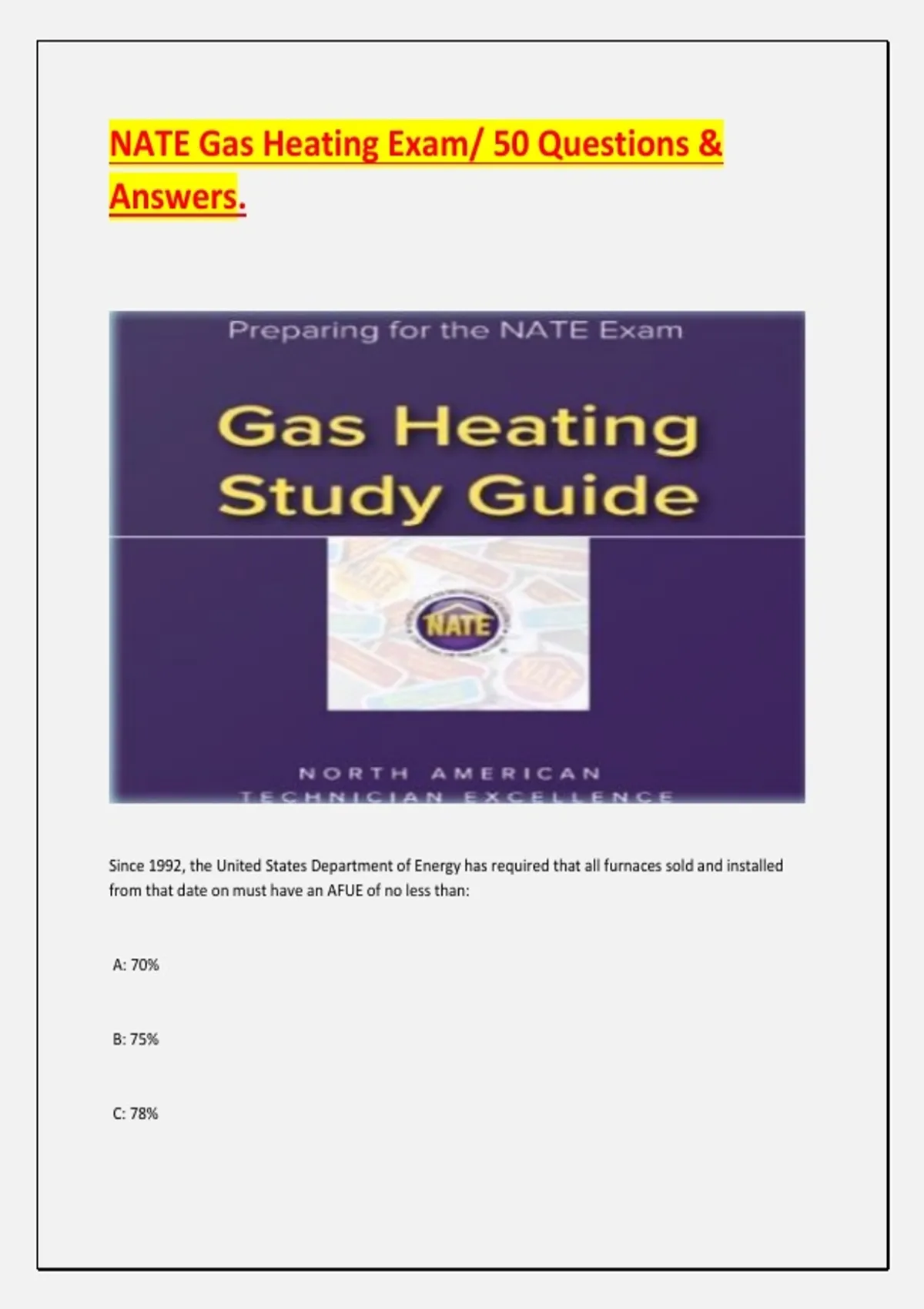

NATE Gas Heating Exam/ 50 Questions &
Answers.
Since 1992, the United States Department of Energy has required that all furnaces sold and installed
from that date on must have an AFUE of no less than:
A: 70%
B: 75%
C: 78%
,D: 80% - answer :C: 78%
Modern high-efficiency burners use combustion blowers. What are the two major types of combustion
blowers?
A: Induced draft and forced draft
B: High pressure and low pressure
C: Impeller type and centrifugal type
D: Liquid and vapor types - answer :A: Induced draft and forced draft
The purpose of the combustion blower is to:
A: Cause an adequate amount of oxygen-rich air to mix with the fuel for better combustion
B: Push the products of combustion out of the building
C: Prevent carbon monoxide from entering the heat exchanger
D: Give the larger blower motor a rest - answer :A: Cause an adequate amount of oxygen-rich air to mix
with the fuel for better combustion
Heat transfers from an object or area at a higher temperature to an object or area at a lower
temperature. A heated heat exchanger transfers heat to the air by:
A: Conduction
B: Natural convection
,C: Radiation
D: Forced convection - answer :D: Forced convection
The voltage that creates a spark on a spark ignition system is approximately:
A: 240 volts
B: 5,000 volts
C: 15,000 volts
D: 25,000 volts - answer :C: 15,000 volts
The capacity of a natural gas furnace is de-rated by _______ for every 1000 feet above sea level:
A: 1%
B: 2%
C: 3%
D: 4% - answer :D: 4%
A crack in a heat exchanger can:
A: Allow combustion gases to mix with the space air
, B: Prevent the heat from effectively transferring to the air
C: Cause the high-limit control to shut the furnace down
D: Cause the furnace to catch on fire - answer :A: Allow combustion gases to mix with the space air
Gas valves operate on what voltage?
A: 12 volts
B: 24 volts
C: 120 volts
D: 230 volts - answer :B: 24 volts
Mid-efficiency furnaces operate with flue gas temperatures between:
A: 275 and 360 degrees
B: 200 and 500 degrees
C: 100 and 275 degrees
D: 80 and 100 degrees - answer :A: 275 and 360 degrees
High-efficiency furnaces operate with flue gas temperatures between:
A: 275 and 360 degrees
