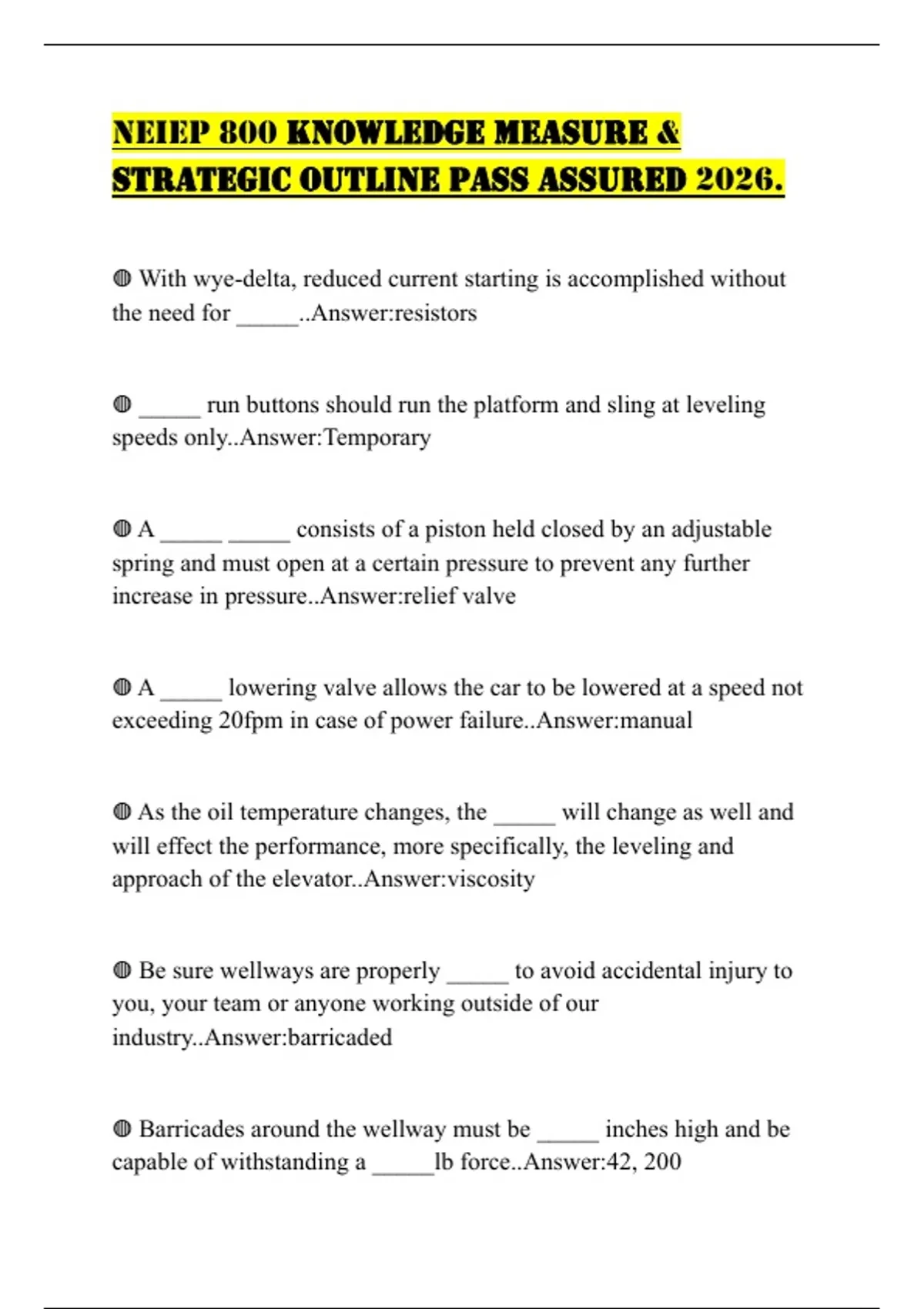

NEIEP 800 KNOWLEDGE MEASURE &
STRATEGIC OUTLINE PASS ASSURED 2026.
◍ With wye-delta, reduced current starting is accomplished without
the need for _____..Answer:resistors
◍ _____ run buttons should run the platform and sling at leveling
speeds only..Answer:Temporary
◍ A _____ _____ consists of a piston held closed by an adjustable
spring and must open at a certain pressure to prevent any further
increase in pressure..Answer:relief valve
◍ A _____ lowering valve allows the car to be lowered at a speed not
exceeding 20fpm in case of power failure..Answer:manual
◍ As the oil temperature changes, the _____ will change as well and
will effect the performance, more specifically, the leveling and
approach of the elevator..Answer:viscosity
◍ Be sure wellways are properly _____ to avoid accidental injury to
you, your team or anyone working outside of our
industry..Answer:barricaded
◍ Barricades around the wellway must be _____ inches high and be
capable of withstanding a _____lb force..Answer:42, 200
, ◍ A _____ protects you if you come in contact with a hot wire or
component and then come in contact with ground. It opens the circuit
and diverts the supplied current to ground..Answer:GFCI
◍ A _____ _____ is useful for horizontal (side-to-side) pulling of the
truss while being lowered into the wellway..Answer:lever hoist
◍ Code specifies the use of anti-slide devices if the outer edge of the
deck is greater than _____ inches from the center line of the
handrail..Answer:12
◍ (True/False) Anti-slide devices must be less than 3/4" in height,
have no sharp corners or edges and fastened to the deck no closer than
4 inches from the handrail and spaced no greater than 6ft
apart..Answer:True
◍ Sometimes referred to as sag switches, _____ _____ switches are
located within the step band of both upper and lower truss assemblies
and function to prevent a step that is sagging by more than _____
inch..Answer:step level, 1/8
◍ Per code, an installed escalator can exceed the 30 degree angle of
inclination by _____ degree..Answer:1
◍ When it comes to moving walks code states that the angle of
inclination of the truss from the horizontal shall not exceed _____
STRATEGIC OUTLINE PASS ASSURED 2026.
◍ With wye-delta, reduced current starting is accomplished without
the need for _____..Answer:resistors
◍ _____ run buttons should run the platform and sling at leveling
speeds only..Answer:Temporary
◍ A _____ _____ consists of a piston held closed by an adjustable
spring and must open at a certain pressure to prevent any further
increase in pressure..Answer:relief valve
◍ A _____ lowering valve allows the car to be lowered at a speed not
exceeding 20fpm in case of power failure..Answer:manual
◍ As the oil temperature changes, the _____ will change as well and
will effect the performance, more specifically, the leveling and
approach of the elevator..Answer:viscosity
◍ Be sure wellways are properly _____ to avoid accidental injury to
you, your team or anyone working outside of our
industry..Answer:barricaded
◍ Barricades around the wellway must be _____ inches high and be
capable of withstanding a _____lb force..Answer:42, 200
, ◍ A _____ protects you if you come in contact with a hot wire or
component and then come in contact with ground. It opens the circuit
and diverts the supplied current to ground..Answer:GFCI
◍ A _____ _____ is useful for horizontal (side-to-side) pulling of the
truss while being lowered into the wellway..Answer:lever hoist
◍ Code specifies the use of anti-slide devices if the outer edge of the
deck is greater than _____ inches from the center line of the
handrail..Answer:12
◍ (True/False) Anti-slide devices must be less than 3/4" in height,
have no sharp corners or edges and fastened to the deck no closer than
4 inches from the handrail and spaced no greater than 6ft
apart..Answer:True
◍ Sometimes referred to as sag switches, _____ _____ switches are
located within the step band of both upper and lower truss assemblies
and function to prevent a step that is sagging by more than _____
inch..Answer:step level, 1/8
◍ Per code, an installed escalator can exceed the 30 degree angle of
inclination by _____ degree..Answer:1
◍ When it comes to moving walks code states that the angle of
inclination of the truss from the horizontal shall not exceed _____
