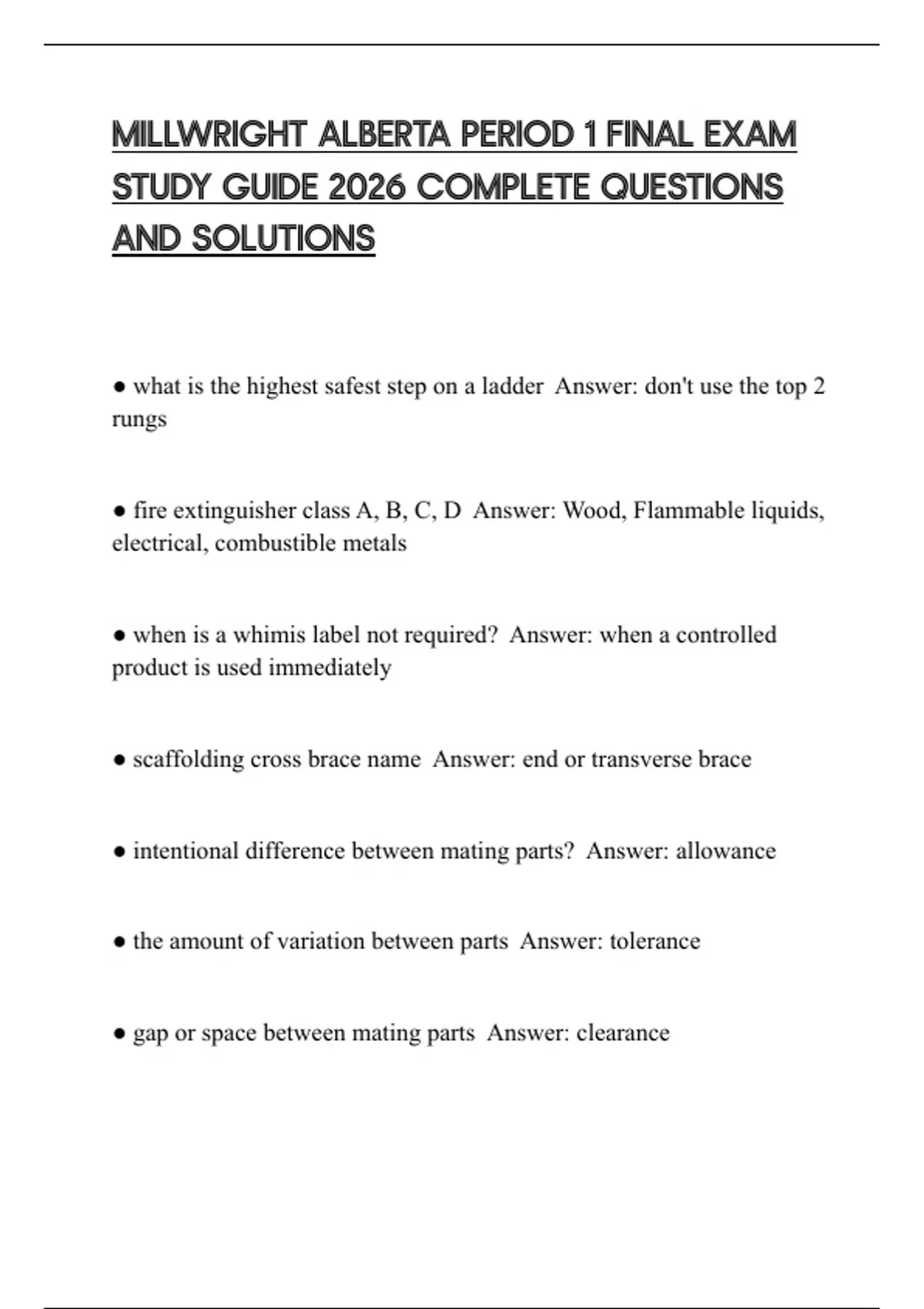

MILLWRIGHT ALBERTA PERIOD 1 FINAL EXAM
STUDY GUIDE 2026 COMPLETE QUESTIONS
AND SOLUTIONS
● what is the highest safest step on a ladder Answer: don't use the top 2
rungs
● fire extinguisher class A, B, C, D Answer: Wood, Flammable liquids,
electrical, combustible metals
● when is a whimis label not required? Answer: when a controlled
product is used immediately
● scaffolding cross brace name Answer: end or transverse brace
● intentional difference between mating parts? Answer: allowance
● the amount of variation between parts Answer: tolerance
● gap or space between mating parts Answer: clearance
,● what is used with an outside caliper to measure a shaft? Answer: a
steel rule
● vernier caliper smallest measurement? Answer: one thou if an inch
0.001" or 0.20mm
● parallel misalignment + angular misalignment Answer: combination
misalignment
● how to measure a small hole? Answer: small hole gauge and outside
micrometer
● Reading a Vernier bevel protractor in what ? Answer: main scale is
degrees and vernier scale is minutes indicates every 5 minutes = 1/12 of
a degree
● What has to be aligned during machine installation Answer:
Centerlines
● what's a datum line Answer: standard of comparison or point of
reference
● most important point prior to a layout is Answer: reference line/datum
line
, ● smallest dimension on a steel rule Answer: 1/64th
● accuracy of a vernier caliper Answer: 0.01mm or 0.001" (one thou)
● What do you use to set the axis of the threading tool at a right angle to
the axis of the workpiece? Answer: thread centre gauge (fishtail)
● sensitive tool that is used to measure the depth of small holes and
bores? Answer: depth micrometer (scale runs opposite to most
micrometers)
● smallest measurement on a vernier metric micrometer Answer: 0.001
mm
● Type of wrench used on a polished or smooth surface? Answer: Strap
Wrench
● Puller used for removing Bearing? Answer: Pressure Screw Puller
● 4 types of Pullers? Answer: pressure screw puller
Hydraulic puller
Slide hammer puller
