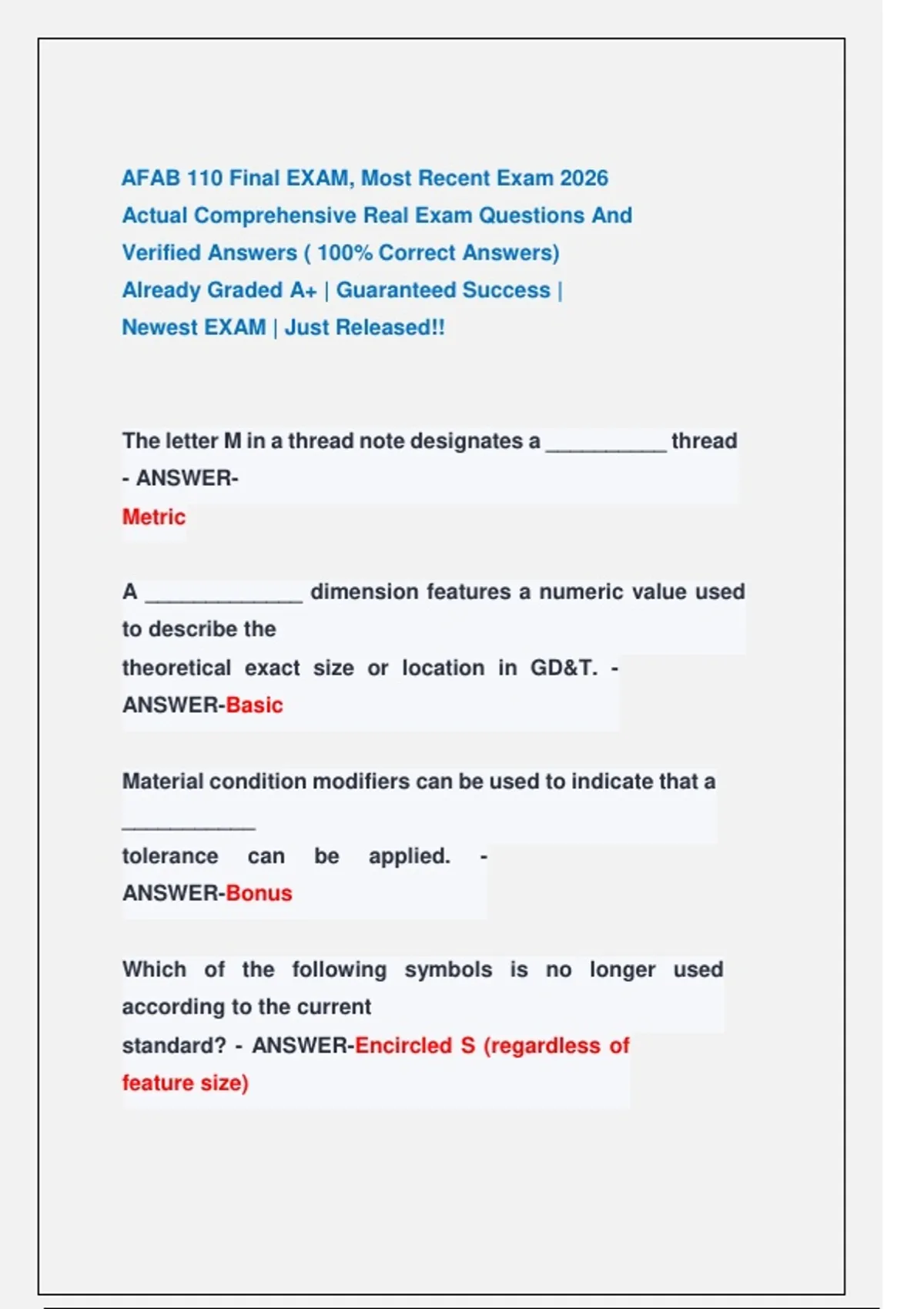

AFAB 110 Final EXAM, Most Recent Exam 2026
Actual Comprehensive Real Exam Questions And
Verified Answers ( 100% Correct Answers)
Already Graded A+ | Guaranteed Success |
Newest EXAM | Just Released!!
The letter M in a thread note designates a __________ thread
- ANSWER-
Metric
A _____________ dimension features a numeric value used
to describe the
theoretical exact size or location in GD&T. -
ANSWER-Basic
Material condition modifiers can be used to indicate that a
___________
tolerance can be applied. -
ANSWER-Bonus
Which of the following symbols is no longer used
according to the current
standard? - ANSWER-Encircled S (regardless of
feature size)
,Specific points, lines, or areas of contact can be specified
with ________. -
ANSWER-Datum
targets
Which of the following GD&T controls is not a form
tolerance? - ANSWER-
Runout
The condition of a surface having all elements in one plane
is _________. -
ANSWER-
Flatness
The condition of a surface, median plane, or axis existing at a
right angle to a
datum plane or axis is known as ______________. -
ANSWER-
Perpendicularity
A geometric tolerance that can be measured with a dial
indicator to determien
the variation of surface points as the part is rotated about
a datum axis is
__________. - ANSWER-
Runout
, It is important to note that a surface could be perfectly
cylindrical, but if it is not
___________ with the datum axis, then runout can occur. -
ANSWER-Coaxial
A double layer feature control frame is used for a
________ tolerance -
ANSWER-
Composite
The standard term for a drawing composed of two or more
parts that, once
assembled, are permandently joined is _____________.
- ANSWER-
Inseparable
assembly
Which of the following is the least likely to be found on
assembly drawings in
the multiveiw format? - ANSWER-Hidden lines
for every part
An assembly drawing that provides the necessary information
to install or rect
a piece of equipment is known as a(n) _________ assembly.
- ANSWER-
Installation
