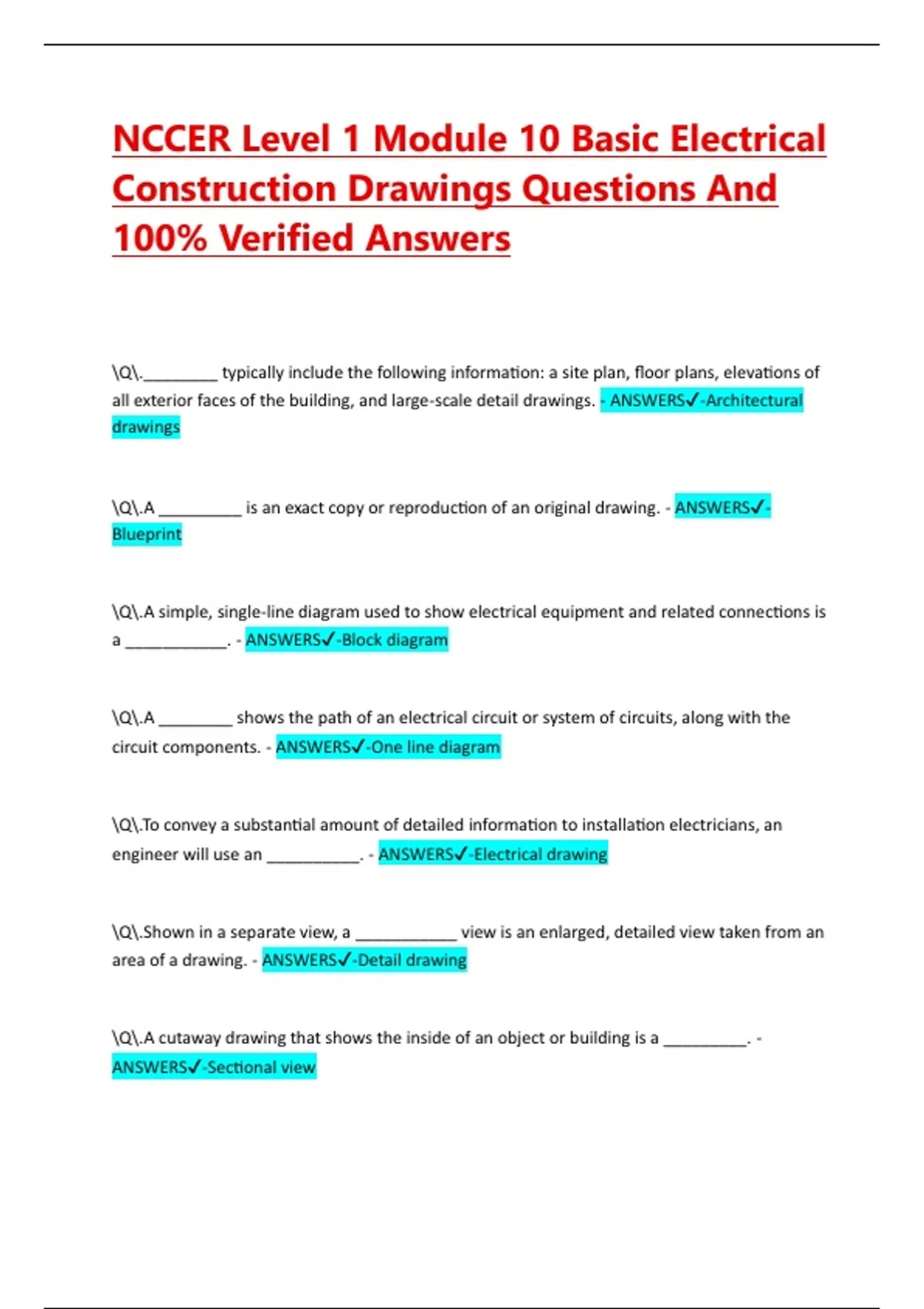

NCCER Level 1 Module 10 Basic Electrical
Construction Drawings Questions And
100% Verified Answers
\Q\.________ typically include the following information: a site plan, floor plans, elevations of
all exterior faces of the building, and large-scale detail drawings. - ANSWERS✔-Architectural
drawings
\Q\.A _________ is an exact copy or reproduction of an original drawing. - ANSWERS✔-
Blueprint
\Q\.A simple, single-line diagram used to show electrical equipment and related connections is
a ___________. - ANSWERS✔-Block diagram
\Q\.A ________ shows the path of an electrical circuit or system of circuits, along with the
circuit components. - ANSWERS✔-One line diagram
\Q\.To convey a substantial amount of detailed information to installation electricians, an
engineer will use an __________. - ANSWERS✔-Electrical drawing
\Q\.Shown in a separate view, a ___________ view is an enlarged, detailed view taken from an
area of a drawing. - ANSWERS✔-Detail drawing
\Q\.A cutaway drawing that shows the inside of an object or building is a _________. -
ANSWERS✔-Sectional view
, \Q\.The sizes or measurements that are printed on a drawing are called ________. -
ANSWERS✔-Dimensions
\Q\.The relationship between an object's size in a drawing and the object's actual size is the
_____. - ANSWERS✔-Scale
\Q\.The height of the front, rear, or sides of a building is shown in an ____________. -
ANSWERS✔-Elevation view
\Q\.A building's location on the site is shown in a _________. - ANSWERS✔-Site plan
\Q\.A drawing that has a top-down view of a building is a _________. - ANSWERS✔-Floor plan
\Q\.A drawing that has a top-down view of a single object is a ____. - ANSWERS✔-Plan
\Q\.A _____ is a single-line block diagram used to indicate the electric service equipment,
service conductors and feeders, and subpanels. ** - ANSWERS✔-Power-riser diagram
\Q\.Owners, architects, and engineers use_________to specify material and workmanship
requirements. - ANSWERS✔-Written specifications
\Q\.A ____ is a systematic way of presenting equipment lists on a drawing in tabular form. -
ANSWERS✔-Schedule
\Q\.Complicated circuits, such as control circuits, are shown in a _______. - ANSWERS✔-
Schematic diagram
Construction Drawings Questions And
100% Verified Answers
\Q\.________ typically include the following information: a site plan, floor plans, elevations of
all exterior faces of the building, and large-scale detail drawings. - ANSWERS✔-Architectural
drawings
\Q\.A _________ is an exact copy or reproduction of an original drawing. - ANSWERS✔-
Blueprint
\Q\.A simple, single-line diagram used to show electrical equipment and related connections is
a ___________. - ANSWERS✔-Block diagram
\Q\.A ________ shows the path of an electrical circuit or system of circuits, along with the
circuit components. - ANSWERS✔-One line diagram
\Q\.To convey a substantial amount of detailed information to installation electricians, an
engineer will use an __________. - ANSWERS✔-Electrical drawing
\Q\.Shown in a separate view, a ___________ view is an enlarged, detailed view taken from an
area of a drawing. - ANSWERS✔-Detail drawing
\Q\.A cutaway drawing that shows the inside of an object or building is a _________. -
ANSWERS✔-Sectional view
, \Q\.The sizes or measurements that are printed on a drawing are called ________. -
ANSWERS✔-Dimensions
\Q\.The relationship between an object's size in a drawing and the object's actual size is the
_____. - ANSWERS✔-Scale
\Q\.The height of the front, rear, or sides of a building is shown in an ____________. -
ANSWERS✔-Elevation view
\Q\.A building's location on the site is shown in a _________. - ANSWERS✔-Site plan
\Q\.A drawing that has a top-down view of a building is a _________. - ANSWERS✔-Floor plan
\Q\.A drawing that has a top-down view of a single object is a ____. - ANSWERS✔-Plan
\Q\.A _____ is a single-line block diagram used to indicate the electric service equipment,
service conductors and feeders, and subpanels. ** - ANSWERS✔-Power-riser diagram
\Q\.Owners, architects, and engineers use_________to specify material and workmanship
requirements. - ANSWERS✔-Written specifications
\Q\.A ____ is a systematic way of presenting equipment lists on a drawing in tabular form. -
ANSWERS✔-Schedule
\Q\.Complicated circuits, such as control circuits, are shown in a _______. - ANSWERS✔-
Schematic diagram
