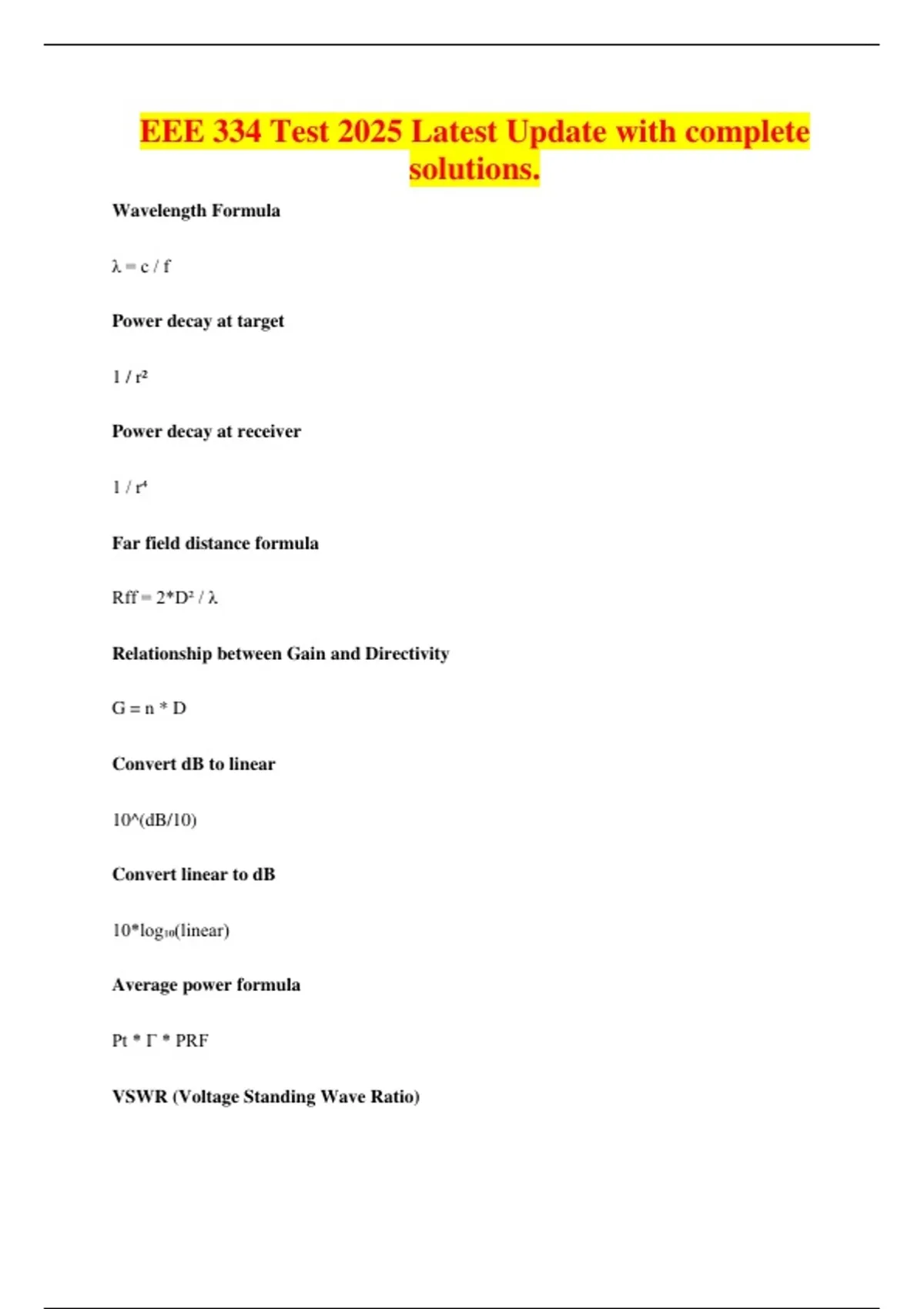

Document preview thumbnail
Preview 2 out of 5 pages
Exam (elaborations)

EEE 334 Test 2025 Latest Update with complete solutions

0,0
(0 reviews)
- sold
5 pages
2025/2026 Written for academic year
Institution EEE 334
Course EEE 334
Document preview thumbnail
Preview 2 out of 5 pages

EEE 334 Test 2025 Latest Update with complete solutions

Content preview

EEE 334 Test 2025 Latest Update with complete
solutions.
Wavelength Formula

λ=c/f

Power decay at target

1 / r²

Power decay at receiver

1 / r⁴

Far field distance formula

Rff = 2*D² / λ

Relationship between Gain and Directivity

G=n*D

Convert dB to linear

10^(dB/10)

Convert linear to dB

10*log₁₀(linear)

Average power formula

Pt * Γ * PRF

VSWR (Voltage Standing Wave Ratio)

, 1 + |Γ| / 1 - |Γ|

Reflection coefficient (Γ)

Γ = Za - Z₀ / Za + Z₀

Aperture efficiency eAP

Effective Area / Physical Area

Radiation from a point source E(r)

E(r) = (1/r) * e^jkr K = 2π/λ

Effective Aperture Ae

(G * λ² / 4π) or (D * λ² / 4π)

Friis Formula

Pr = Pt * Gt * Gr * (λ/4*π*d)²

Doppler Frequency

Fd = 2v / λ₀ * cosθ

Target Range

(c * Γd) / 2

PRF, PRI relationship

PRI * PRF = 1

Array Pattern
