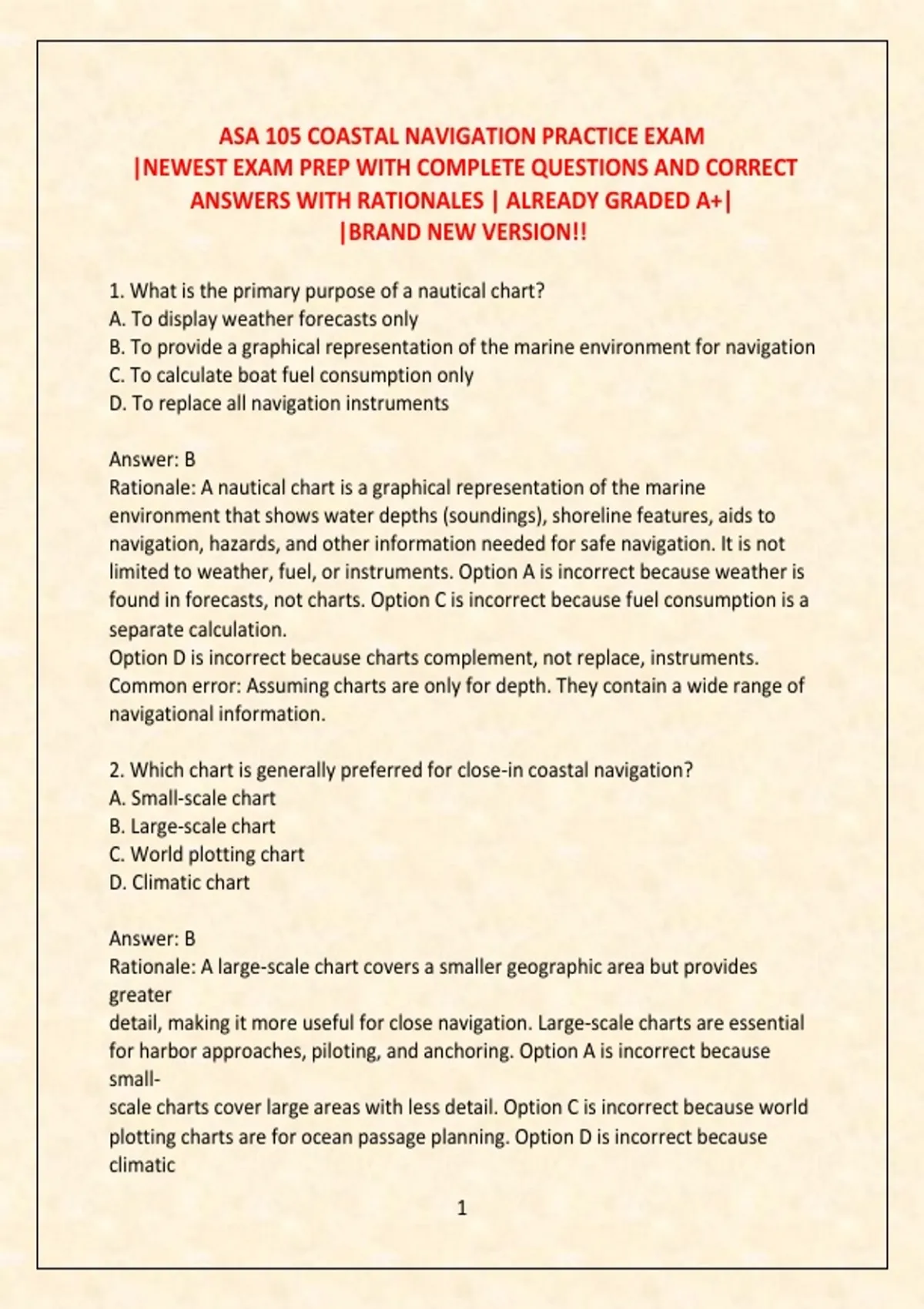

ASA 105 COASTAL NAVIGATION PRACTICE EXAM
|NEWEST EXAM PREP WITH COMPLETE QUESTIONS AND CORRECT
ANSWERS WITH RATIONALES | ALREADY GRADED A+|
|BRAND NEW VERSION!!
1. What is the primary purpose of a nautical chart?
A. To display weather forecasts only
B. To provide a graphical representation of the marine environment for navigation
C. To calculate boat fuel consumption only
D. To replace all navigation instruments
Answer: B
Rationale: A nautical chart is a graphical representation of the marine
environment that shows water depths (soundings), shoreline features, aids to
navigation, hazards, and other information needed for safe navigation. It is not
limited to weather, fuel, or instruments. Option A is incorrect because weather is
found in forecasts, not charts. Option C is incorrect because fuel consumption is a
separate calculation.
Option D is incorrect because charts complement, not replace, instruments.
Common error: Assuming charts are only for depth. They contain a wide range of
navigational information.
2. Which chart is generally preferred for close-in coastal navigation?
A. Small-scale chart
B. Large-scale chart
C. World plotting chart
D. Climatic chart
Answer: B
Rationale: A large-scale chart covers a smaller geographic area but provides
greater
detail, making it more useful for close navigation. Large-scale charts are essential
for harbor approaches, piloting, and anchoring. Option A is incorrect because
small-
scale charts cover large areas with less detail. Option C is incorrect because world
plotting charts are for ocean passage planning. Option D is incorrect because
climatic
1
,charts show weather patterns, not navigation details.
Common error: Confusing large scale with large area. Large scale = small area =
more
detail.
3. Which chart scale provides the greatest detail?
A. 1:500,000
B. 1:250,000
C. 1:100,000
D. 1:20,000
Answer: D
Rationale: The smaller the denominator, the larger the scale and the greater the
chart
detail. A 1:20,000 chart shows a small area with maximum detail, ideal for harbor
navigation. Options A, B, and C have larger denominators, meaning smaller scales
and
less detail. Option A is the smallest scale and least detailed.
Common error: Thinking a larger number means more detail. It is the opposite: a
smaller ratio number means a larger scale.
4. A chart scale of 1:80,000 means:
A. One chart unit represents 80,000 units on Earth.
B. 80,000 chart units equal one Earth unit.
C. One nautical mile equals 80,000 nautical miles.
D. One inch always equals exactly one mile.
Answer: A
Rationale: The scale ratio means one unit measured on the chart represents
80,000 of
the same units on the Earth's surface. For example, 1 inch on the chart equals
80,000
inches on the Earth. Option B reverses the relationship. Option C is nonsensical.
Option D is incorrect because one inch equals a specific distance only at a
particular
scale, not universally.
Common error: Inverting the ratio. Always remember chart unit : Earth units.
2
,5. Why should distance on a Mercator chart normally be measured using the
latitude
scale?
A. Longitude scales are used only for depth
B. One minute of latitude corresponds to approximately one nautical mile
C. Latitude scales never change
D. Longitude is unrelated to distance
Answer: B
Rationale: On a nautical chart, distance is commonly measured from the latitude
scale
because one minute of latitude represents approximately one nautical mile. This
is the
fundamental relationship upon which the nautical mile is based. Option A is false;
longitude scales are not for depth. Option C is false because the latitude scale
expands toward the poles on a Mercator chart. Option D is false because
longitude is
related to distance, but it varies with latitude.
Common error: Measuring distance on the longitude scale. That gives incorrect
results
except at the equator.
6. What is the principal navigational advantage of the Mercator projection?
A. Great circles appear as straight lines
B. Rhumb lines appear as straight lines
C. All distances are exact everywhere
D. The poles occupy no space
Answer: B
Rationale: A constant-bearing rhumb line plots as a straight line on a Mercator
chart,
making traditional course plotting convenient. This allows navigators to draw a
course
with parallel rules and steer a single compass bearing. Option A describes the
gnomonic
projection, not Mercator. Option C is false because Mercator scale expands with
latitude. Option D is false because the poles are infinitely expanded on a Mercator
chart and cannot be shown.
3
, Common error: Confusing Mercator with gnomonic. Mercator = rhumb lines
straight;
gnomonic = great circles straight.
7. A rhumb line is:
A. A route crossing every meridian at a constant angle
B. Always the shortest route on Earth
C. A line of equal depth
D. A line of equal latitude only
Answer: A
Rationale: A rhumb line maintains a constant true bearing. It is not the shortest
route
(that is a great circle), but it is the easiest to steer because the compass heading
remains constant. Option B is false because great circles are shorter. Option C is
false; a line of equal depth is a depth contour. Option D is false; a line of equal
latitude is a parallel, which is a special case of a rhumb line only at 090°/270°.
Common error: Thinking rhumb line is always shortest. It is not, except at the
equator.
8. Which projection is commonly associated with great-circle routes?
A. Mercator
B. Gnomonic
C. Lambert only
D. Cylindrical equal-area
Answer: B
Rationale: Great circles appear as straight or nearly straight lines on a gnomonic
projection, making it useful for great-circle planning. The gnomonic chart is used
to
plan the shortest route, which is then transferred to a Mercator chart for steering.
Option A is incorrect because great circles are curved on a Mercator. Option C is a
conic projection often used for aeronautical charts. Option D is an equal-area
projection not typically used for great-circle plotting.
Common error: Trying to plot a great circle directly on a Mercator chart without
transferring from a gnomonic.
9. What does a chart's compass rose provide?
4
