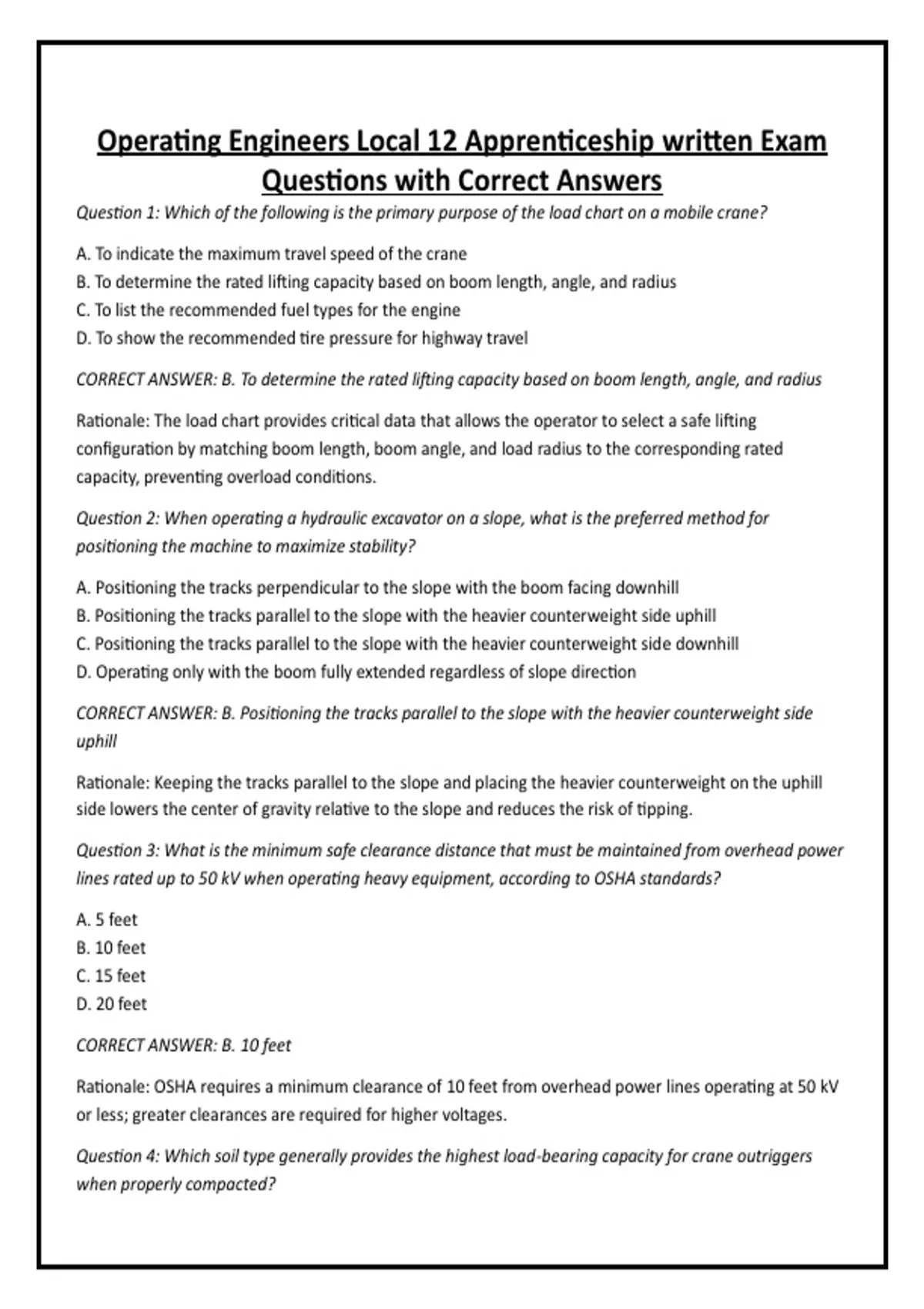

Operating Engineers Local 12 Apprenticeship written Exam
Questions with Correct Answers
Question 1: Which of the following is the primary purpose of the load chart on a mobile crane?
A. To indicate the maximum travel speed of the crane
B. To determine the rated lifting capacity based on boom length, angle, and radius
C. To list the recommended fuel types for the engine
D. To show the recommended tire pressure for highway travel
CORRECT ANSWER: B. To determine the rated lifting capacity based on boom length, angle, and radius
Rationale: The load chart provides critical data that allows the operator to select a safe lifting
configuration by matching boom length, boom angle, and load radius to the corresponding rated
capacity, preventing overload conditions.
Question 2: When operating a hydraulic excavator on a slope, what is the preferred method for
positioning the machine to maximize stability?
A. Positioning the tracks perpendicular to the slope with the boom facing downhill
B. Positioning the tracks parallel to the slope with the heavier counterweight side uphill
C. Positioning the tracks parallel to the slope with the heavier counterweight side downhill
D. Operating only with the boom fully extended regardless of slope direction
CORRECT ANSWER: B. Positioning the tracks parallel to the slope with the heavier counterweight side
uphill
Rationale: Keeping the tracks parallel to the slope and placing the heavier counterweight on the uphill
side lowers the center of gravity relative to the slope and reduces the risk of tipping.
Question 3: What is the minimum safe clearance distance that must be maintained from overhead power
lines rated up to 50 kV when operating heavy equipment, according to OSHA standards?
A. 5 feet
B. 10 feet
C. 15 feet
D. 20 feet
CORRECT ANSWER: B. 10 feet
Rationale: OSHA requires a minimum clearance of 10 feet from overhead power lines operating at 50 kV
or less; greater clearances are required for higher voltages.
Question 4: Which soil type generally provides the highest load-bearing capacity for crane outriggers
when properly compacted?
,A. Loose sand
B. Soft clay
C. Well-graded gravel or crushed rock
D. Organic topsoil
CORRECT ANSWER: C. Well-graded gravel or crushed rock
Rationale: Well-graded gravel and crushed rock exhibit high internal friction and low compressibility,
resulting in superior bearing capacity compared with cohesive or organic soils.
Question 5: In a hydraulic system, what component converts hydraulic pressure into linear mechanical
force?
A. Hydraulic pump
B. Hydraulic motor
C. Hydraulic cylinder
D. Relief valve
CORRECT ANSWER: C. Hydraulic cylinder
Rationale: A hydraulic cylinder uses pressurized fluid acting on a piston to produce linear motion and
force, distinguishing it from rotary actuators such as hydraulic motors.
Question 6: When signaling a crane operator, which hand signal indicates “emergency stop”?
A. Arm extended horizontally with palm down, moving arm back and forth
B. Both arms extended horizontally with palms down, moving arms back and forth
C. One arm raised vertically with open hand
D. Both arms raised vertically with clenched fists
CORRECT ANSWER: B. Both arms extended horizontally with palms down, moving arms back and forth
Rationale: The standard ASME/OSHA emergency-stop signal requires both arms extended horizontally,
palms down, with a rapid back-and-forth motion to immediately halt all crane movement.
Question 7: What is the primary function of the turbocharger on a modern diesel engine used in heavy
equipment?
A. To cool the intake air
B. To force additional air into the combustion chamber, increasing power output
C. To filter exhaust gases
D. To regulate fuel injection timing
CORRECT ANSWER: B. To force additional air into the combustion chamber, increasing power output
,Rationale: A turbocharger uses exhaust energy to drive a compressor that increases the density of intake
air, allowing more fuel to be burned and thereby raising engine power and efficiency.
Question 8: Which of the following is the correct sequence for starting a cold diesel engine equipped with
glow plugs?
A. Engage starter immediately, then activate glow plugs
B. Activate glow plugs for the recommended time, then engage the starter
C. Activate glow plugs only after the engine is running
D. Bypass glow plugs and use ether starting fluid exclusively
CORRECT ANSWER: B. Activate glow plugs for the recommended time, then engage the starter
Rationale: Glow plugs preheat the combustion chambers; activating them for the manufacturer-specified
interval before cranking ensures reliable ignition in cold conditions.
Question 9: When setting up a crane on outriggers, what is the recommended practice regarding
outrigger pads?
A. Use the smallest pads available to concentrate the load
B. Use pads large enough to keep ground bearing pressure within the soil’s capacity
C. Never use pads on soft ground
D. Place pads only under the front outriggers
CORRECT ANSWER: B. Use pads large enough to keep ground bearing pressure within the soil’s capacity
Rationale: Properly sized outrigger pads distribute the load over a larger area, reducing ground bearing
pressure and preventing outrigger penetration or tipping.
Question 10: What does the term “swing radius” refer to on a crawler or mobile crane?
A. The maximum distance the boom can be extended
B. The radius of the circle described by the rear of the rotating upper structure
C. The length of the boom from the boom foot pins to the tip
D. The distance from the center of rotation to the load hook
CORRECT ANSWER: B. The radius of the circle described by the rear of the rotating upper structure
Rationale: Swing radius is the clearance required behind the crane’s rotating upper works; operators
must ensure this area remains free of personnel and obstacles.
Question 11: Which of the following is the most accurate method for determining the weight of a load
prior to a critical lift?
A. Estimating based on visual appearance
B. Using a certified load cell or scale, or obtaining documented shipping weights
, C. Asking the truck driver for an approximate weight
D. Calculating volume and assuming a uniform density of 100 lb/ft³
CORRECT ANSWER: B. Using a certified load cell or scale, or obtaining documented shipping weights
Rationale: Accurate load weight is essential for safe crane operation; certified weighing devices or
manufacturer documentation provide the reliability required for critical lifts.
Question 12: In blueprint reading, what does a heavy solid line typically represent?
A. Hidden edges
B. Object or visible edges
C. Centerlines
D. Dimension lines
CORRECT ANSWER: B. Object or visible edges
Rationale: Standard drafting conventions use heavy solid lines to depict the visible outlines and edges of
an object.
Question 13: What is the primary purpose of a pressure-relief valve in a hydraulic system?
A. To increase system pressure beyond design limits
B. To protect the system from excessive pressure by diverting fluid when a preset limit is reached
C. To filter contaminants from the hydraulic fluid
D. To control the direction of fluid flow
CORRECT ANSWER: B. To protect the system from excessive pressure by diverting fluid when a preset limit
is reached
Rationale: The relief valve acts as a safety device, opening at a predetermined pressure to prevent
damage to pumps, cylinders, hoses, and other components.
Question 14: When operating a bulldozer for finish grading, which blade position is generally most
effective?
A. Blade fully raised and angled
B. Blade set at a slight cutting angle with the cutting edge level to the grade
C. Blade fully tilted to one side
D. Blade in the float position with no down-pressure
CORRECT ANSWER: B. Blade set at a slight cutting angle with the cutting edge level to the grade
Rationale: A slight cutting angle combined with a level cutting edge allows precise material removal while
maintaining a smooth finished surface.
