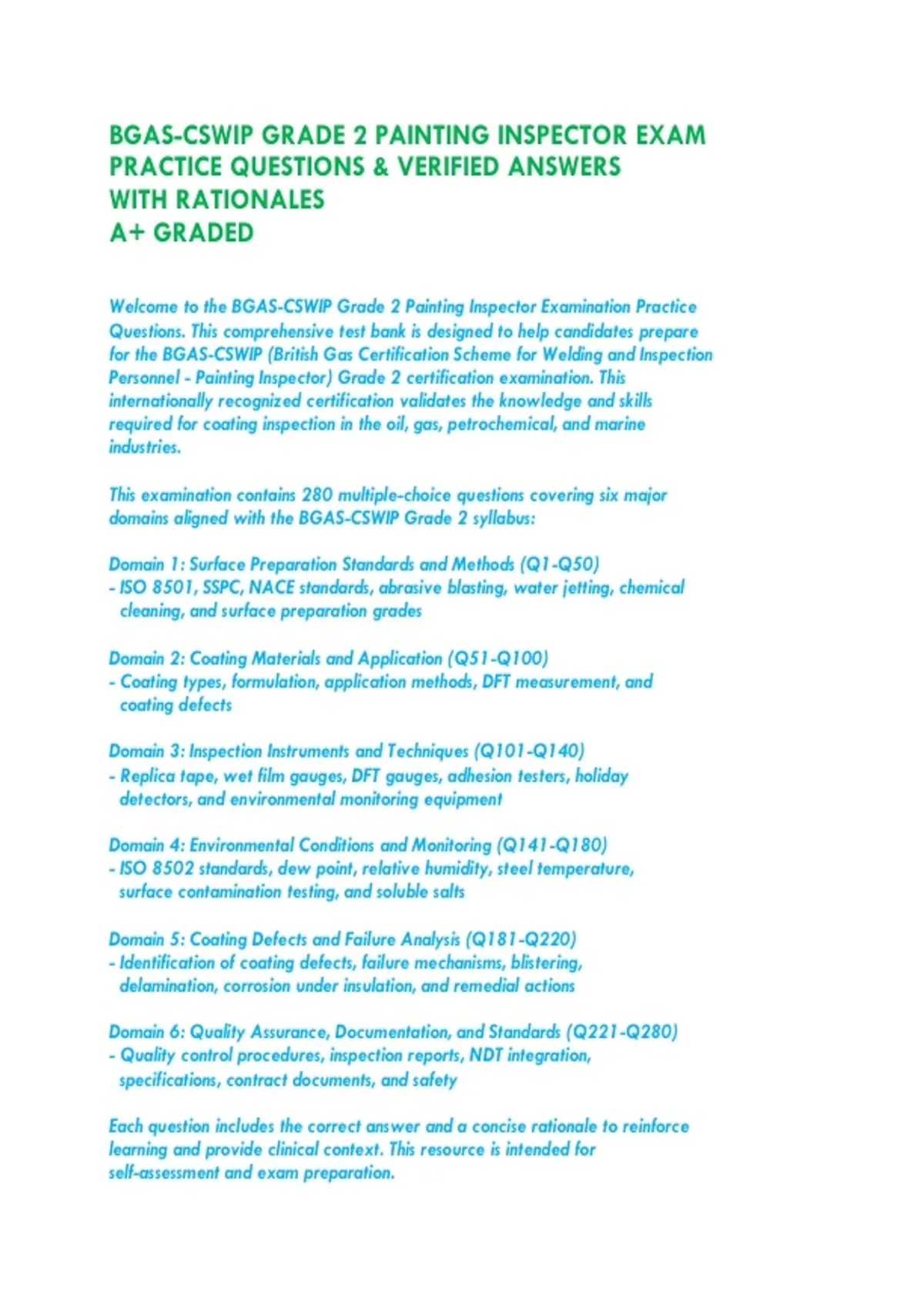

BGAS-CSWIP GRADE 2 PAINTING INSPECTOR EXAM
PRACTICE QUESTIONS & VERIFIED ANSWERS
WITH RATIONALES
A+ GRADED
Welcome to the BGAS-CSWIP Grade 2 Painting Inspector Examination Practice
Questions. This comprehensive test bank is designed to help candidates prepare
for the BGAS-CSWIP (British Gas Certification Scheme for Welding and Inspection
Personnel - Painting Inspector) Grade 2 certification examination. This
internationally recognized certification validates the knowledge and skills
required for coating inspection in the oil, gas, petrochemical, and marine
industries.
This examination contains 280 multiple-choice questions covering six major
domains aligned with the BGAS-CSWIP Grade 2 syllabus:
Domain 1: Surface Preparation Standards and Methods (Q1-Q50)
- ISO 8501, SSPC, NACE standards, abrasive blasting, water jetting, chemical
cleaning, and surface preparation grades
Domain 2: Coating Materials and Application (Q51-Q100)
- Coating types, formulation, application methods, DFT measurement, and
coating defects
Domain 3: Inspection Instruments and Techniques (Q101-Q140)
- Replica tape, wet film gauges, DFT gauges, adhesion testers, holiday
detectors, and environmental monitoring equipment
Domain 4: Environmental Conditions and Monitoring (Q141-Q180)
- ISO 8502 standards, dew point, relative humidity, steel temperature,
surface contamination testing, and soluble salts
Domain 5: Coating Defects and Failure Analysis (Q181-Q220)
- Identification of coating defects, failure mechanisms, blistering,
delamination, corrosion under insulation, and remedial actions
Domain 6: Quality Assurance, Documentation, and Standards (Q221-Q280)
- Quality control procedures, inspection reports, NDT integration,
specifications, contract documents, and safety
Each question includes the correct answer and a concise rationale to reinforce
learning and provide clinical context. This resource is intended for
self-assessment and exam preparation.
,DOMAIN 1: SURFACE PREPARATION STANDARDS AND METHODS (Q1-Q50)
Q1. During a pre-blast inspection, you discover that the steel surface has a
heavy layer of chloride contamination. The specification requires Sa 2.5 with
a surface chloride level below 5 µg/cm². Which sequence of operations would
most effectively achieve the specified cleanliness without causing flash
rusting?
A. Dry abrasive blasting to Sa 2.5, followed by high-pressure fresh water
washing and then a second dry blast to remove flash rust.
B. High-pressure fresh water washing to remove chlorides, then dry abrasive
blasting to Sa 2.5, and finally a sweep blast if flash rust appears.
C. Dry abrasive blasting to Sa 2.5, then apply a holding primer to prevent
flash rust, and later remove the primer before coating.
D. Wet abrasive blasting with fresh water to Sa 2.5, followed by a fresh water
rinse and immediate application of the coating.
Correct Answer: B
Rationale: High-pressure water washing first removes soluble salts, preventing
them from being driven deeper by blasting. Subsequent dry blasting to Sa 2.5
removes rust and creates the profile, while a sweep blast can address any flash
rust. Option A is less effective as chlorides may remain beneath the surface.
Option C leaves chlorides in place, and option D risks flash rusting before
coating.
Q2. A coating inspector is evaluating a newly blasted steel surface with a
surface profile depth of 75 µm. The specified profile range is 40-70 µm. The
inspector uses a replica tape and a digital micrometer. Which action is most
appropriate?
A. Accept the profile as within tolerance because replica tape measurements
have an accuracy of ±5 µm.
B. Reject the profile and require re-blasting to achieve a depth within the
specified range.
C. Record the measurement as 70 µm to meet specification, assuming the extra
5 µm is measurement error.
D. Accept the profile if the coating manufacturer approves a higher DFT to
cover the deeper profile.
,Correct Answer: B
Rationale: The measured profile exceeds the maximum specified by 5 µm, which is
outside the tolerance. Replica tape is accurate, but the reading is valid.
Accepting it or adjusting the reading violates inspection integrity. The
specification must be met, so re-blasting is required. Option D is not
acceptable unless the specification allows it, which is not stated.
Q3. In a coastal environment, you are inspecting a coating system that has
experienced premature blistering. The blisters contain a clear liquid with a
high chloride concentration. Which mechanism is the most likely cause of this
failure?
A. Osmotic blistering due to soluble salts left on the substrate before
coating.
B. Cathodic delamination caused by a damaged coating exposing the steel to
seawater.
C. Solvent entrapment due to rapid evaporation of solvent from a thick film.
D. Hydrostatic pressure from moisture permeating through the coating from the
external surface.
Correct Answer: A
Rationale: Osmotic blistering occurs when soluble salts on the substrate draw
water through the coating by osmosis, creating blisters with concentrated salt
solution. The high chloride content in the blister fluid supports this.
Cathodic delamination typically occurs at holidays and involves alkaline
products. Solvent entrapment causes solvent blisters, not chloride-rich liquid.
Hydrostatic pressure would cause blisters without high salt concentration.
Q4. During a coating application, the ambient temperature is 12°C, and the dew
point is 8°C. The relative humidity is 80%. The steel temperature is 10°C.
According to ISO 8502-4, what is the correct assessment of these conditions?
A. Conditions are acceptable because the steel temperature is above the dew
point, but the relative humidity is too high.
B. Conditions are not acceptable because the steel temperature is less than
3°C above the dew point.
C. Conditions are acceptable because the difference between steel temperature
and dew point is exactly 2°C, which is sufficient.
D. Conditions are not acceptable because the ambient temperature is below 15°C,
, the minimum for coating application.
Correct Answer: B
Rationale: ISO 8502-4 requires that the steel temperature be at least 3°C above
the dew point to prevent condensation. Here, the difference is only 2°C (10°C -
8°C), so condensation is likely. The relative humidity is not the primary
criterion, and there is no universal 15°C minimum. Thus, conditions are not
acceptable.
Q5. According to ISO 8501-1, which standard describes the visual assessment of
surface cleanliness after abrasive blast cleaning?
A. ISO 8501-1
B. ISO 8502-2
C. ISO 8503-1
D. ISO 8504-2
Correct Answer: A
Rationale: ISO 8501-1 provides pictorial standards for assessing surface
cleanliness after abrasive blast cleaning. ISO 8502 covers testing for
contaminants; ISO 8503 covers surface profile; ISO 8504 covers methods of
surface preparation.
Q6. What is the minimum surface preparation grade required for immersion
service according to most coating specifications?
A. Sa 1
B. Sa 2
C. Sa 2.5
D. Sa 3
Correct Answer: C
Rationale: Sa 2.5 (very thorough blast cleaning) is the minimum standard for
immersion service in most specifications. Sa 3 (white metal) is reserved for
the most demanding environments. Sa 1 and Sa 2 are insufficient for immersion.
PRACTICE QUESTIONS & VERIFIED ANSWERS
WITH RATIONALES
A+ GRADED
Welcome to the BGAS-CSWIP Grade 2 Painting Inspector Examination Practice
Questions. This comprehensive test bank is designed to help candidates prepare
for the BGAS-CSWIP (British Gas Certification Scheme for Welding and Inspection
Personnel - Painting Inspector) Grade 2 certification examination. This
internationally recognized certification validates the knowledge and skills
required for coating inspection in the oil, gas, petrochemical, and marine
industries.
This examination contains 280 multiple-choice questions covering six major
domains aligned with the BGAS-CSWIP Grade 2 syllabus:
Domain 1: Surface Preparation Standards and Methods (Q1-Q50)
- ISO 8501, SSPC, NACE standards, abrasive blasting, water jetting, chemical
cleaning, and surface preparation grades
Domain 2: Coating Materials and Application (Q51-Q100)
- Coating types, formulation, application methods, DFT measurement, and
coating defects
Domain 3: Inspection Instruments and Techniques (Q101-Q140)
- Replica tape, wet film gauges, DFT gauges, adhesion testers, holiday
detectors, and environmental monitoring equipment
Domain 4: Environmental Conditions and Monitoring (Q141-Q180)
- ISO 8502 standards, dew point, relative humidity, steel temperature,
surface contamination testing, and soluble salts
Domain 5: Coating Defects and Failure Analysis (Q181-Q220)
- Identification of coating defects, failure mechanisms, blistering,
delamination, corrosion under insulation, and remedial actions
Domain 6: Quality Assurance, Documentation, and Standards (Q221-Q280)
- Quality control procedures, inspection reports, NDT integration,
specifications, contract documents, and safety
Each question includes the correct answer and a concise rationale to reinforce
learning and provide clinical context. This resource is intended for
self-assessment and exam preparation.
,DOMAIN 1: SURFACE PREPARATION STANDARDS AND METHODS (Q1-Q50)
Q1. During a pre-blast inspection, you discover that the steel surface has a
heavy layer of chloride contamination. The specification requires Sa 2.5 with
a surface chloride level below 5 µg/cm². Which sequence of operations would
most effectively achieve the specified cleanliness without causing flash
rusting?
A. Dry abrasive blasting to Sa 2.5, followed by high-pressure fresh water
washing and then a second dry blast to remove flash rust.
B. High-pressure fresh water washing to remove chlorides, then dry abrasive
blasting to Sa 2.5, and finally a sweep blast if flash rust appears.
C. Dry abrasive blasting to Sa 2.5, then apply a holding primer to prevent
flash rust, and later remove the primer before coating.
D. Wet abrasive blasting with fresh water to Sa 2.5, followed by a fresh water
rinse and immediate application of the coating.
Correct Answer: B
Rationale: High-pressure water washing first removes soluble salts, preventing
them from being driven deeper by blasting. Subsequent dry blasting to Sa 2.5
removes rust and creates the profile, while a sweep blast can address any flash
rust. Option A is less effective as chlorides may remain beneath the surface.
Option C leaves chlorides in place, and option D risks flash rusting before
coating.
Q2. A coating inspector is evaluating a newly blasted steel surface with a
surface profile depth of 75 µm. The specified profile range is 40-70 µm. The
inspector uses a replica tape and a digital micrometer. Which action is most
appropriate?
A. Accept the profile as within tolerance because replica tape measurements
have an accuracy of ±5 µm.
B. Reject the profile and require re-blasting to achieve a depth within the
specified range.
C. Record the measurement as 70 µm to meet specification, assuming the extra
5 µm is measurement error.
D. Accept the profile if the coating manufacturer approves a higher DFT to
cover the deeper profile.
,Correct Answer: B
Rationale: The measured profile exceeds the maximum specified by 5 µm, which is
outside the tolerance. Replica tape is accurate, but the reading is valid.
Accepting it or adjusting the reading violates inspection integrity. The
specification must be met, so re-blasting is required. Option D is not
acceptable unless the specification allows it, which is not stated.
Q3. In a coastal environment, you are inspecting a coating system that has
experienced premature blistering. The blisters contain a clear liquid with a
high chloride concentration. Which mechanism is the most likely cause of this
failure?
A. Osmotic blistering due to soluble salts left on the substrate before
coating.
B. Cathodic delamination caused by a damaged coating exposing the steel to
seawater.
C. Solvent entrapment due to rapid evaporation of solvent from a thick film.
D. Hydrostatic pressure from moisture permeating through the coating from the
external surface.
Correct Answer: A
Rationale: Osmotic blistering occurs when soluble salts on the substrate draw
water through the coating by osmosis, creating blisters with concentrated salt
solution. The high chloride content in the blister fluid supports this.
Cathodic delamination typically occurs at holidays and involves alkaline
products. Solvent entrapment causes solvent blisters, not chloride-rich liquid.
Hydrostatic pressure would cause blisters without high salt concentration.
Q4. During a coating application, the ambient temperature is 12°C, and the dew
point is 8°C. The relative humidity is 80%. The steel temperature is 10°C.
According to ISO 8502-4, what is the correct assessment of these conditions?
A. Conditions are acceptable because the steel temperature is above the dew
point, but the relative humidity is too high.
B. Conditions are not acceptable because the steel temperature is less than
3°C above the dew point.
C. Conditions are acceptable because the difference between steel temperature
and dew point is exactly 2°C, which is sufficient.
D. Conditions are not acceptable because the ambient temperature is below 15°C,
, the minimum for coating application.
Correct Answer: B
Rationale: ISO 8502-4 requires that the steel temperature be at least 3°C above
the dew point to prevent condensation. Here, the difference is only 2°C (10°C -
8°C), so condensation is likely. The relative humidity is not the primary
criterion, and there is no universal 15°C minimum. Thus, conditions are not
acceptable.
Q5. According to ISO 8501-1, which standard describes the visual assessment of
surface cleanliness after abrasive blast cleaning?
A. ISO 8501-1
B. ISO 8502-2
C. ISO 8503-1
D. ISO 8504-2
Correct Answer: A
Rationale: ISO 8501-1 provides pictorial standards for assessing surface
cleanliness after abrasive blast cleaning. ISO 8502 covers testing for
contaminants; ISO 8503 covers surface profile; ISO 8504 covers methods of
surface preparation.
Q6. What is the minimum surface preparation grade required for immersion
service according to most coating specifications?
A. Sa 1
B. Sa 2
C. Sa 2.5
D. Sa 3
Correct Answer: C
Rationale: Sa 2.5 (very thorough blast cleaning) is the minimum standard for
immersion service in most specifications. Sa 3 (white metal) is reserved for
the most demanding environments. Sa 1 and Sa 2 are insufficient for immersion.
