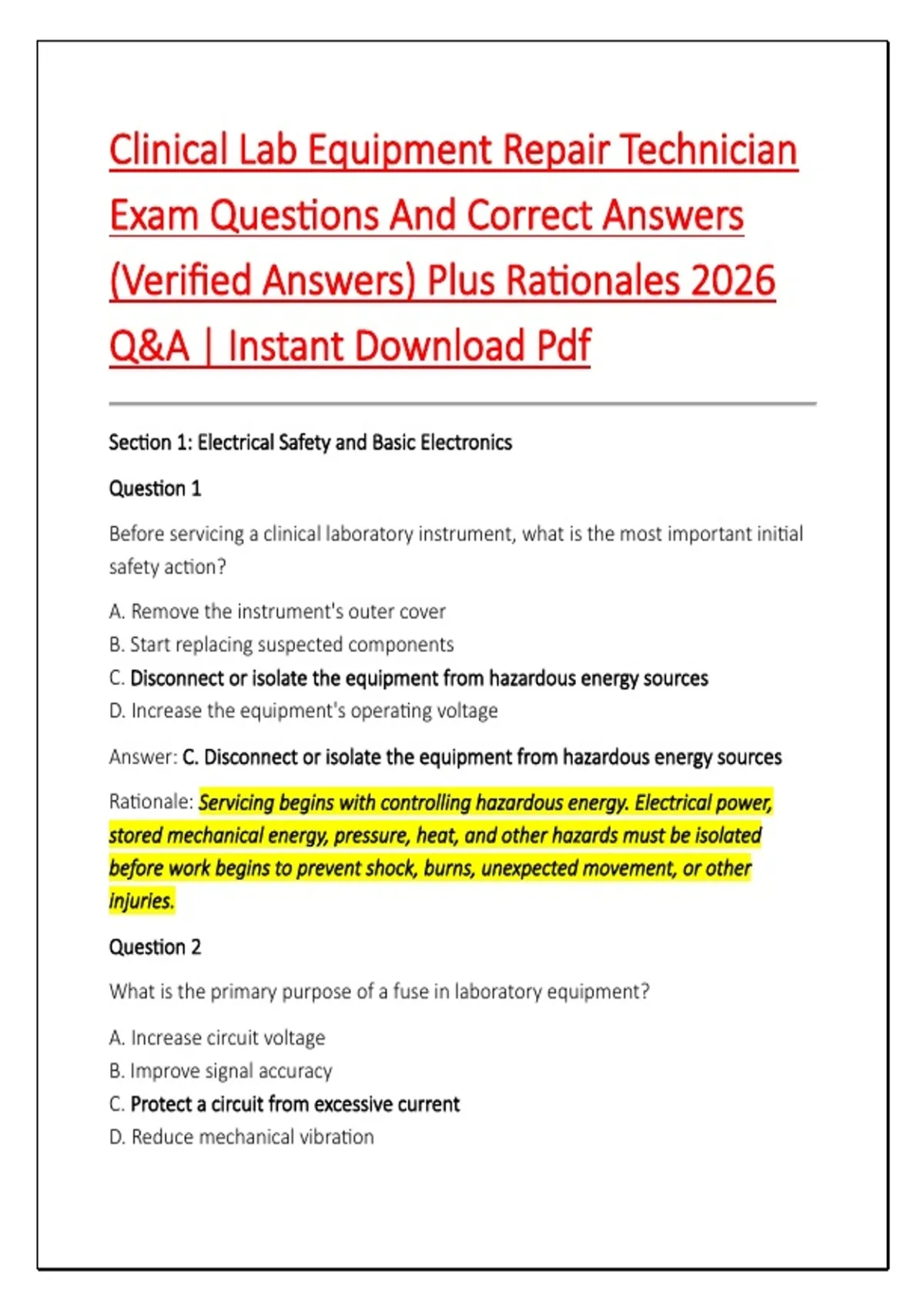

Clinical Lab Equipment Repair Technician
Exam Questions And Correct Answers
(Verified Answers) Plus Rationales 2026
Q&A | Instant Download Pdf
Section 1: Electrical Safety and Basic Electronics
Question 1
Before servicing a clinical laboratory instrument, what is the most important initial
safety action?
A. Remove the instrument's outer cover
B. Start replacing suspected components
C. Disconnect or isolate the equipment from hazardous energy sources
D. Increase the equipment's operating voltage
Answer: C. Disconnect or isolate the equipment from hazardous energy sources
Rationale: Servicing begins with controlling hazardous energy. Electrical power,
stored mechanical energy, pressure, heat, and other hazards must be isolated
before work begins to prevent shock, burns, unexpected movement, or other
injuries.
Question 2
What is the primary purpose of a fuse in laboratory equipment?
A. Increase circuit voltage
B. Improve signal accuracy
C. Protect a circuit from excessive current
D. Reduce mechanical vibration
,Answer: C. Protect a circuit from excessive current
Rationale: A fuse opens the circuit when current exceeds its rated value for a
sufficient period. This helps protect wiring, components, and the equipment from
overheating and fire.
Question 3
A multimeter is set to measure resistance. Which condition is generally required for
accurate resistance measurement?
A. The circuit must be energized
B. The circuit must contain high-frequency signals
C. Power should normally be removed from the circuit
D. The circuit must be connected to earth ground
Answer: C. Power should normally be removed from the circuit
Rationale: A resistance measurement applies a small test current from the meter.
External voltage can produce incorrect readings and may damage the meter or
circuit.
Question 4
What does an AC voltage measurement primarily determine?
A. Mechanical torque
B. Fluid viscosity
C. The voltage difference between two points in an alternating-current circuit
D. Optical wavelength
Answer: C. The voltage difference between two points in an alternating-current
circuit
Rationale: An AC voltage measurement evaluates the electrical potential difference
between two points in an alternating-current circuit and is commonly used to
troubleshoot power supplies and distribution circuits.
Question 5
,What is the purpose of protective earth grounding on laboratory equipment?
A. Increase instrument speed
B. Improve reagent stability
C. Provide a low-impedance path for fault current
D. Increase motor temperature
Answer: C. Provide a low-impedance path for fault current
Rationale: Protective grounding helps direct fault current away from personnel and
toward the protective device so that the fault can be cleared safely.
Question 6
A technician measures continuity across a normally closed switch while the switch
is in its normal state. What should generally be observed?
A. Infinite resistance
B. Very low resistance or continuity
C. High AC voltage
D. An optical signal
Answer: B. Very low resistance or continuity
Rationale: A normally closed switch provides a conductive path when it is in its
normal, unactuated condition.
Question 7
Which component is commonly used to convert AC voltage into DC voltage in an
electronic power supply?
A. Thermistor
B. Relay coil
C. Rectifier
D. Photodiode
Answer: C. Rectifier
, Rationale: Rectifiers use semiconductor devices such as diodes to convert
alternating current into pulsating direct current, which can then be filtered and
regulated.
Question 8
What is the primary function of a capacitor in a DC power supply?
A. Create mechanical pressure
B. Store electrical energy and help smooth voltage fluctuations
C. Measure temperature directly
D. Increase sample volume
Answer: B. Store electrical energy and help smooth voltage fluctuations
Rationale: Capacitors store electrical charge and can reduce ripple after
rectification, contributing to a more stable DC supply.
Question 9
A diode is generally designed to conduct current primarily in which direction?
A. Equally in both directions
B. Only through an open circuit
C. One direction
D. Only when mechanically rotated
Answer: C. One direction
Rationale: A conventional semiconductor diode has asymmetric current flow
characteristics and is commonly used for rectification, protection, switching, and
signal processing.
Question 10
What is the purpose of a relay in laboratory equipment?
A. Measure optical absorbance
B. Measure reagent pH directly
