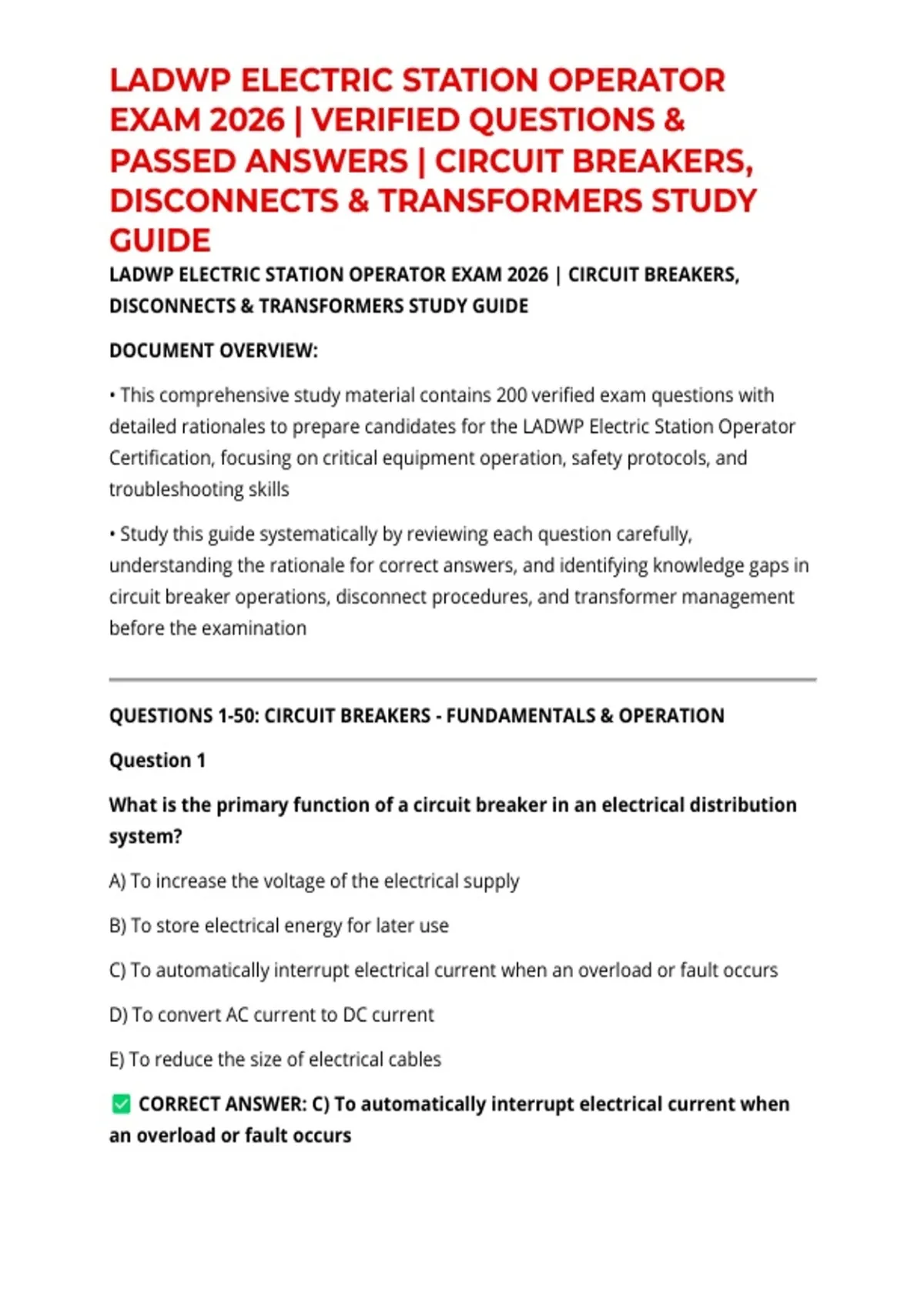

LADWP ELECTRIC STATION OPERATOR EXAM 2026 | VERIFIED QUESTIONS & PASSED ANSWERS | CIRCUIT BREAKERS, DISCONNECTS & TRANSFORMERS STUDY GUIDE

LADWP ELECTRIC STATION OPERATOR
EXAM 2026 | VERIFIED QUESTIONS &
PASSED ANSWERS | CIRCUIT BREAKERS,
DISCONNECTS & TRANSFORMERS STUDY
GUIDE
LADWP ELECTRIC STATION OPERATOR EXAM 2026 | CIRCUIT BREAKERS,
DISCONNECTS & TRANSFORMERS STUDY GUIDE

DOCUMENT OVERVIEW:

• This comprehensive study material contains 200 verified exam questions with
detailed rationales to prepare candidates for the LADWP Electric Station Operator
Certification, focusing on critical equipment operation, safety protocols, and
troubleshooting skills

• Study this guide systematically by reviewing each question carefully,
understanding the rationale for correct answers, and identifying knowledge gaps in
circuit breaker operations, disconnect procedures, and transformer management
before the examination



QUESTIONS 1-50: CIRCUIT BREAKERS - FUNDAMENTALS & OPERATION

Question 1

What is the primary function of a circuit breaker in an electrical distribution
system?

A) To increase the voltage of the electrical supply

B) To store electrical energy for later use

C) To automatically interrupt electrical current when an overload or fault occurs

D) To convert AC current to DC current

E) To reduce the size of electrical cables

CORRECT ANSWER: C) To automatically interrupt electrical current when
an overload or fault occurs

,RATIONALE: Circuit breakers are safety devices designed to protect electrical
circuits from damage caused by excess current flow. When an overload or fault
condition occurs, the circuit breaker detects this abnormal condition and
automatically trips (opens) the circuit to prevent damage to equipment and protect
personnel. This is their primary protective function in electrical distribution
systems. Options A, B, D, and E describe functions of other electrical components
(voltage regulators, capacitors, rectifiers, and cable sizing respectively), not circuit
breakers.



Question 2

Which of the following is NOT a type of circuit breaker mechanism?

A) Thermal mechanism

B) Magnetic mechanism

C) Harmonic mechanism

D) Thermal-magnetic combination

E) Electronic mechanism

CORRECT ANSWER: C) Harmonic mechanism

RATIONALE: Circuit breakers use thermal, magnetic, thermal-magnetic
combinations, and electronic mechanisms to detect faults and overloads. A thermal
mechanism responds to sustained overloads through heat, a magnetic mechanism
responds quickly to short circuits through electromagnetic force, and electronic
mechanisms use microprocessor technology. Harmonic mechanisms do not exist
as a standard circuit breaker protection method. Harmonics are electrical
phenomena that are monitored by protective devices, but they are not themselves
a circuit breaker mechanism type.



Question 3

At what current level does a thermal circuit breaker typically begin to trip?

,A) At exactly 100% of the rated current

B) Between 100-150% of the rated current for long-term exposure

C) Immediately at any current increase

D) Only at 500% of rated current

E) At randomly determined levels

CORRECT ANSWER: B) Between 100-150% of the rated current for long-term
exposure

RATIONALE: Thermal circuit breakers have an inverse time-current characteristic,
meaning they trip faster at higher currents but require more time at lower
overcurrents. Typically, a thermal breaker will tolerate 100% rated current
indefinitely, but will trip within a specified time (usually 1-2 hours) at 150% of rated
current. This characteristic prevents nuisance trips from harmless temporary
overloads while still protecting the circuit from sustained overcurrent conditions
that could damage equipment or create fire hazards.



Question 4

What is the primary advantage of a magnetic circuit breaker over a thermal
breaker?

A) Magnetic breakers are cheaper to manufacture

B) Magnetic breakers respond instantaneously to short circuits without
temperature delay

C) Magnetic breakers work at higher voltages only

D) Magnetic breakers require no maintenance

E) Magnetic breakers cannot be reset

CORRECT ANSWER: B) Magnetic breakers respond instantaneously to short
circuits without temperature delay

, RATIONALE: Magnetic circuit breakers use an electromagnet that reacts
immediately to high current spikes characteristic of short circuits. When a short
circuit occurs, the sudden increase in current creates a strong magnetic field that
instantly trips the breaker, typically within milliseconds. This is much faster than
thermal breakers, which must first generate heat and cause bimetallic strip
warping. The combination of thermal and magnetic protection (thermal-magnetic
breakers) provides both overload and short-circuit protection with appropriate
response times for each condition.



Question 5

In a thermal-magnetic circuit breaker, what does the thermal element
protect against?

A) Short circuits only

B) Sustained overload conditions

C) Voltage fluctuations

D) Frequency variations

E) Lightning strikes

CORRECT ANSWER: B) Sustained overload conditions

RATIONALE: The thermal element in a thermal-magnetic breaker is specifically
designed to provide overload protection. It responds to prolonged overcurrents
that exceed the circuit's rated capacity but do not constitute an immediate short
circuit. The thermal mechanism uses a bimetallic strip that bends when heated by
sustained overcurrent, eventually triggering the tripping mechanism. The magnetic
element, by contrast, protects against short circuits by responding instantly to the
very high currents associated with faults. Together, they provide comprehensive
circuit protection.
