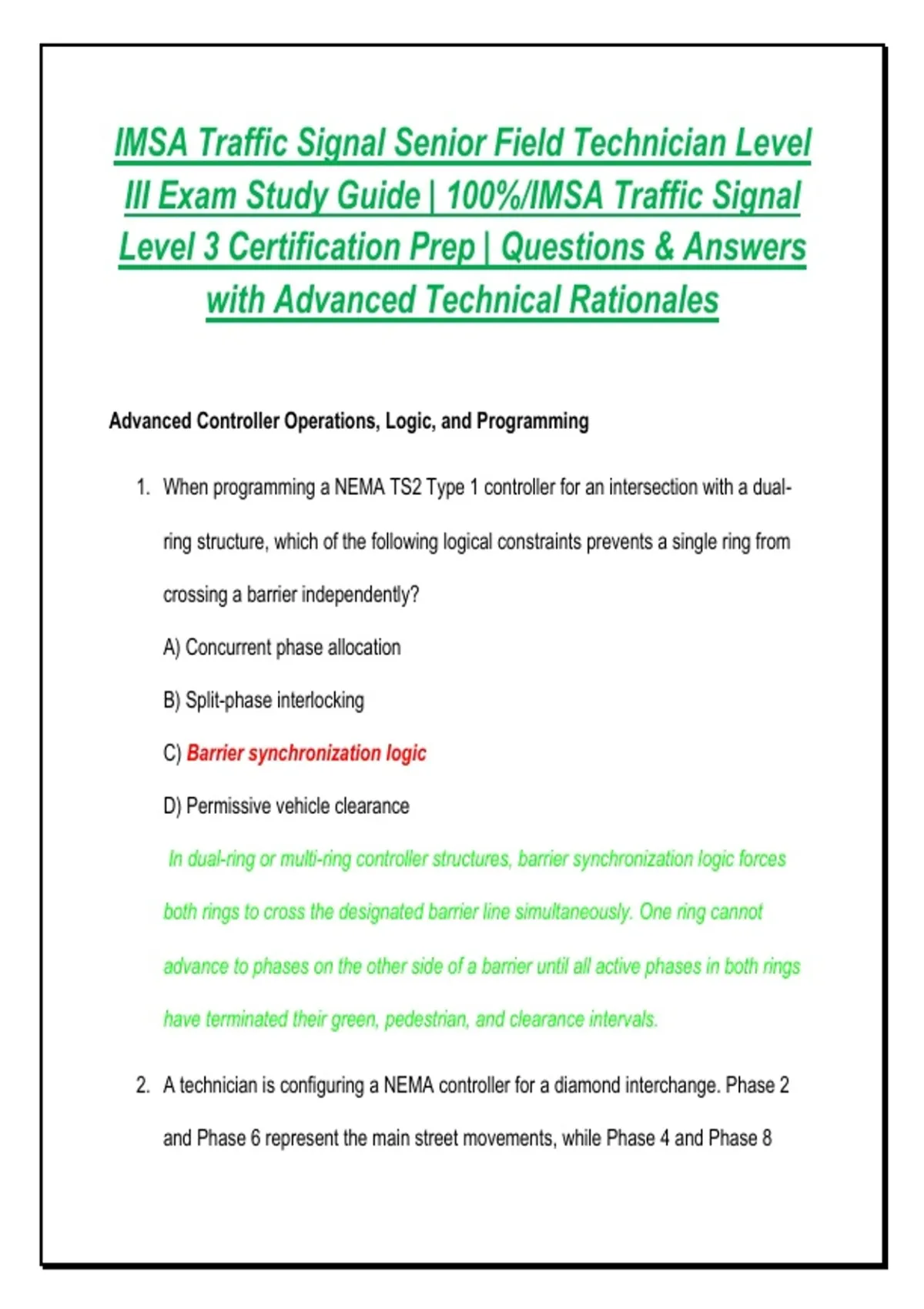

IMSA Traffic Signal Senior Field Technician Level
III Exam Study Guide | 100%/IMSA Traffic Signal
Level 3 Certification Prep | Questions & Answers
with Advanced Technical Rationales
Advanced Controller Operations, Logic, and Programming
1. When programming a NEMA TS2 Type 1 controller for an intersection with a dual-
ring structure, which of the following logical constraints prevents a single ring from
crossing a barrier independently?
A) Concurrent phase allocation
B) Split-phase interlocking
C) Barrier synchronization logic
D) Permissive vehicle clearance
In dual-ring or multi-ring controller structures, barrier synchronization logic forces
both rings to cross the designated barrier line simultaneously. One ring cannot
advance to phases on the other side of a barrier until all active phases in both rings
have terminated their green, pedestrian, and clearance intervals.
2. A technician is configuring a NEMA controller for a diamond interchange. Phase 2
and Phase 6 represent the main street movements, while Phase 4 and Phase 8
, represent the ramp movements. To prevent geometric trap conflicts, which
programming tool must be rigorously verified?
A) Overlap green extensions
B) Phase coordination and hardwired cabinet interlocks
C) Dynamic max-out intervals
D) Soft-recall parameters
Diamond interchanges require strict coordination between intersection nodes to
prevent vehicular queuing from trapping motorists between the ramps. Cabinet
interlocks and programmatic conflict grids (such as MMU programming) must mirror
this to ensure conflicting paths can never display green concurrently.
3. Under NEMA TS2 standards, what is the precise functionality of the Malfunction
Management Unit (MMU) when it detects a 24VDC failure in the cabinet power
supply?
A) It resets the controller unit and returns to normal operations after 5 seconds.
B) It drops the intersection into an immediate, non-coordinated "All-Red" rest phase.
C) It triggers the flash transfer relays, placing the intersection into local
cabinet flash.
D) It re-routes power via the SDLC bus to maintain signal displays.
The MMU constantly monitors critical voltages, including the 24VDC cabinet supply.
If this voltage drops below a safe operating threshold, the MMU drops its output
, relay, de-energizing the flash transfer relays and instantly throwing the intersection
into cabinet flash to protect the public.
4. A Model 2070 controller unit running ATC software is deployed in an Advanced
Traffic Management System (ATMS). When configuring peer-to-peer logic for
emergency vehicle preemption (EVP), which protocol is primarily used for controller-
to-controller communication?
A) RS-232 serial logic
B) NTCIP 1202 over Ethernet (TCP/IP or UDP)
C) NEMA TS1 A-B-C harness protocols
D) Standard FSK telemetry
Modern Advanced Transportation Controllers (ATC) like the 2070 communicate via
Ethernet networks using National Transportation Communications for ITS Protocol
(NTCIP) standards. NTCIP 1202 explicitly governs object definitions for actuated
traffic signal controllers, enabling standardized communication for coordination and
preemption.
5. When assessing a timing plan, what occurs programmatically when a phase is
configured with "Max II Recall" during peak traffic periods?
A) The phase will only appear if a physical loop vehicle call is registered.
B) The phase automatically extends to its maximum green timing limit 2,
regardless of actual vehicle detection calls.
, C) The phase skips its yellow clearance interval to maximize throughput.
D) The controller locks the phase into a permanent flashing amber state.
Max Recall forces the controller to place a continuous call on a phase, causing it to
time its maximum green interval. Specifying "Max II Recall" tells the controller to use
the Maximum Green 2 timing parameter, which is typically programmed for heavy
peak-hour traffic volumes.
Cabinet Electronics, Circuitry, and Electrical Diagnostics
6. A technician measures a voltage drop across a solid-state load switch output
terminal. The input control signal from the controller is active (24VDC), but the signal
head field terminal reads only 85VAC instead of 120VAC. What is the most likely
cause of this symptom?
A) A short circuit inside the MMU diagnostic card.
B) A degraded triac within the load switch causing internal high resistance.
C) An open neutral wire at the master controller.
D) A blown 24VDC logic fuse.
Solid-state load switches utilize triacs (alternating current switches) to route 120VAC
to the signal heads. If a triac is partially degraded or damaged, it can exhibit high
