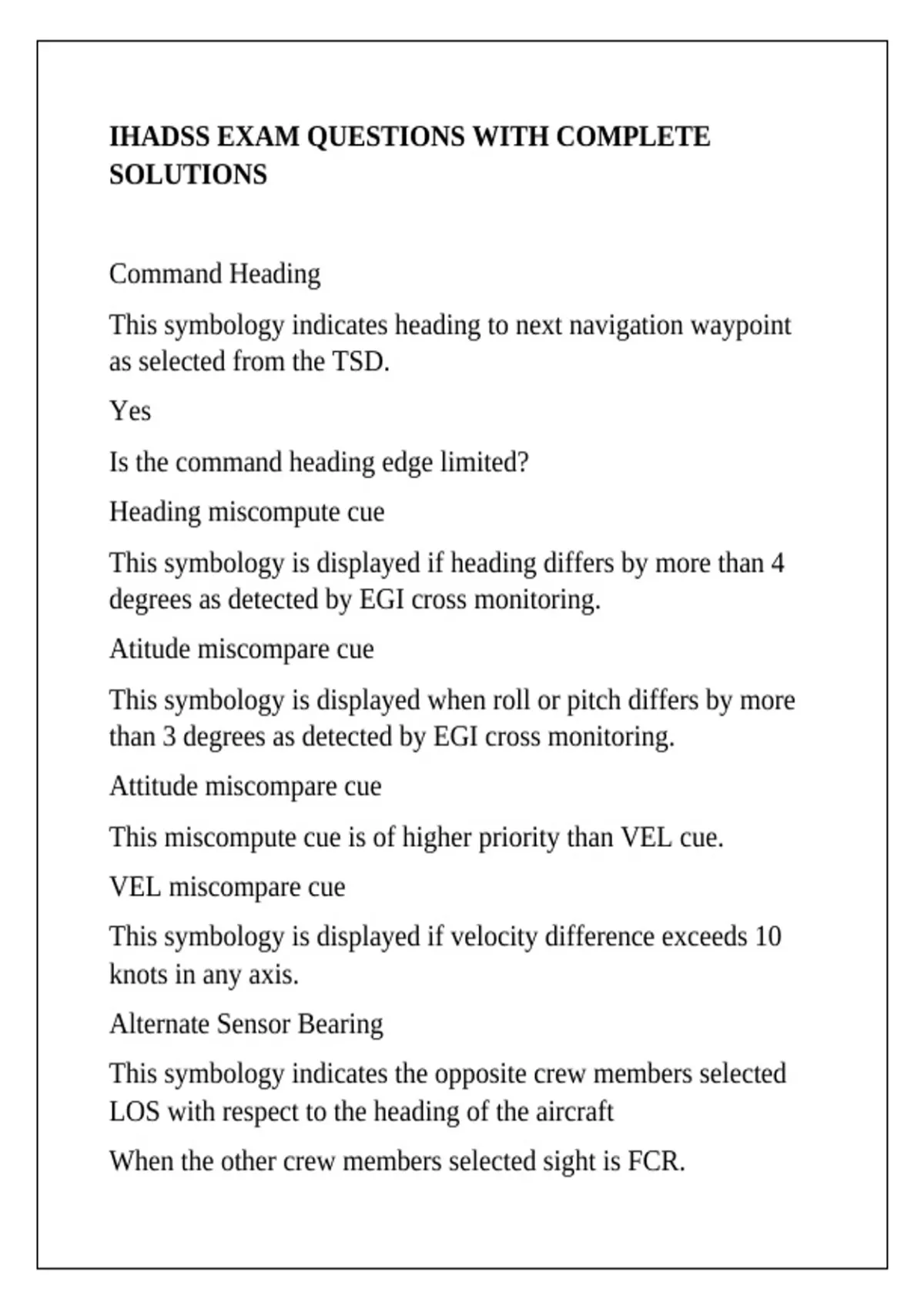

IHADSS EXAM QUESTIONS WITH COMPLETE
SOLUTIONS
Command Heading
This symbology indicates heading to next navigation waypoint
as selected from the TSD.
Yes
Is the command heading edge limited?
Heading miscompute cue
This symbology is displayed if heading differs by more than 4
degrees as detected by EGI cross monitoring.
Atitude miscompare cue
This symbology is displayed when roll or pitch differs by more
than 3 degrees as detected by EGI cross monitoring.
Attitude miscompare cue
This miscompute cue is of higher priority than VEL cue.
VEL miscompare cue
This symbology is displayed if velocity difference exceeds 10
knots in any axis.
Alternate Sensor Bearing
This symbology indicates the opposite crew members selected
LOS with respect to the heading of the aircraft
When the other crew members selected sight is FCR.
,When is the alternate sensor bearing not presented?
Automatic Direction Finder
This symbol is an inverted lollipop representing the current
bearing to the tuned NDB
1. Altitude is 10% below the LO set altitude and between 11 and
999 ft AGL
2. Altitude is 100 ft. below the LO set altitude above 999 ft
When is the LO AUDIO played?
100 FPM rate of ascent/descent
What does each tick mark on the VSI indicate?
1 ft increments
Radar altitude is displayed in what increments from 0 to 50 ft
AGL?
10 ft increments
Radar altitude is displayed in what increments from 50 to 1420
ft AGL?
Data is not valid
AGL exceeds 1428 feet
Altimeter is not powered on
Digital readout on the radar altitude will not be present if:
Negative Altitude
Only _________________ is displayed on the HMD (Rate of
climb/descent)
, 1000 FPM
If rate of descent exceeds __________ readout is displayed
600 FPM
If rate of descent decreases to less than _________ readout will
not be displayed.
Altitude Hold
Altitude hold is a __________ symbol and is placed at the zero
rate of climb position
Flashes 3 seconds
Home plate symbol removed
Advisory tone
What happens if altitude hold fails or I disengaged?
200 FPM
Radar altitude hold must be less than __________.
400 FPM
Barometric hold must be less than _________.
VNE
What does it mean if the airspeed is boxed?
less than 5 kts ground
Position hold occurs at what speed?
5-40 knots, deceleration 30 knots
Velocity hold occurs at what speed?
