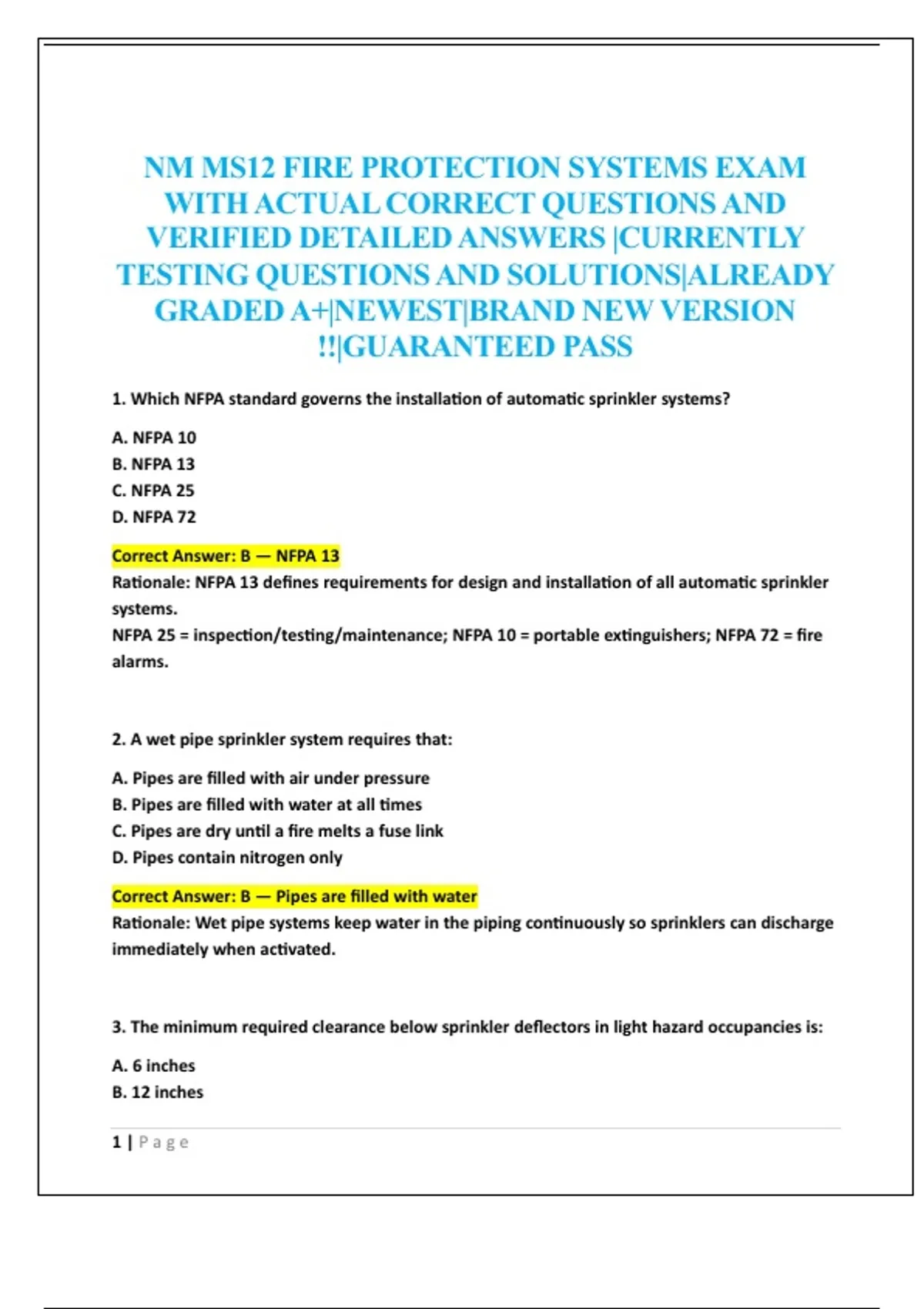

NM MS12 FIRE PROTECTION SYSTEMS EXAM
WITH ACTUAL CORRECT QUESTIONS AND
VERIFIED DETAILED ANSWERS |CURRENTLY
TESTING QUESTIONS AND SOLUTIONS|ALREADY
GRADED A+|NEWEST|BRAND NEW VERSION
!!|GUARANTEED PASS
1. Which NFPA standard governs the installation of automatic sprinkler systems?
A. NFPA 10
B. NFPA 13
C. NFPA 25
D. NFPA 72
Correct Answer: B — NFPA 13
Rationale: NFPA 13 defines requirements for design and installation of all automatic sprinkler
systems.
NFPA 25 = inspection/testing/maintenance; NFPA 10 = portable extinguishers; NFPA 72 = fire
alarms.
2. A wet pipe sprinkler system requires that:
A. Pipes are filled with air under pressure
B. Pipes are filled with water at all times
C. Pipes are dry until a fire melts a fuse link
D. Pipes contain nitrogen only
Correct Answer: B — Pipes are filled with water
Rationale: Wet pipe systems keep water in the piping continuously so sprinklers can discharge
immediately when activated.
3. The minimum required clearance below sprinkler deflectors in light hazard occupancies is:
A. 6 inches
B. 12 inches
1|Page
,C. 18 inches
D. 24 inches
Correct Answer: C — 18 inches
Rationale: NFPA 13 requires 18 in. minimum clearance below sprinklers to avoid obstructed
discharge patterns.
4. A fire pump controller must be capable of starting the pump by:
A. Manual start only
B. Automatic start only
C. Both automatic and manual start
D. Test header flow only
Correct Answer: C — Both automatic and manual
Rationale: NFPA 20 requires fire pumps to start automatically on pressure drop AND manually
5. A deluge sprinkler system is typically used where:
A. Freezing temperatures occur
B. High temperature storage exists
C. Fast fire spread is expected
D. Corrosion is a concern
Correct Answer: C — Fast fire spread
Rationale: Deluge systems have open sprinklers and a deluge valve, ideal for hazards requiring
rapid, large-volume water discharge (e.g., aircraft hangars, flammable liquids).
6. Water flow from a test valve must activate the waterflow alarm within:
A. 5 seconds
B. 30–90 seconds
C. 3 minutes
D. 10 minutes
Correct Answer: B — 30–90 seconds
Rationale: Per NFPA 72 / NFPA 13, alarm devices must activate within 90 seconds of sustained
water flow.
2|Page
,7. Which pipe material is not permitted in a dry system according to NFPA 13?
A. Schedule 40 steel
B. CPVC
C. Black steel
D. Galvanized steel
Correct Answer: B — CPVC
Rationale: CPVC cannot be used in dry systems because trapped air accelerates degradation
and creates brittle pipe failure.
8. The purpose of a backflow preventer in fire protection piping is to:
A. Increase system pressure
B. Prevent water hammer
C. Stop contaminated water from re-entering the public supply
D. Allow drainage during testing
Correct Answer: C
Rationale: Backflow devices protect potable water supplies from cross-contamination.
9. A fire pump acceptance test must include:
A. Visual inspection only
B. Electric continuity testing
C. Pump curve performance test
D. Alarm verification only
Correct Answer: C
Rationale: NFPA 20 requires testing the pump at 0%, 100%, and 150% rated flow to verify
compliance with its certified performance curve.
10. Which sprinkler type activates at the lowest temperature?
A. Ordinary temperature
B. Intermediate temperature
3|Page
, C. High temperature
D. Extra-high temperature
Correct Answer: A — Ordinary
Rationale: Ordinary sprinklers activate at 135–170°F, the lowest among standard sprinkler
classifications.
11. The K-factor of a sprinkler determines:
A. Activation temperature
B. Orifice size and flow rate
C. Hazard classification
D. Deflector style
Correct Answer: B
Rationale: The K-factor (K = GPM/√PSI) indicates how much water flows through a sprinkler at
a given pressure.
12. Fire alarm system installation is governed by:
A. NFPA 10
B. NFPA 25
C. NFPA 72
D. NFPA 17A
Correct Answer: C — NFPA 72
Rationale: NFPA 72 defines requirements for design, installation, testing, and performance of
fire alarm systems.
13. A dry sprinkler system requires an air compressor to:
A. Supply purge gas
B. Maintain supervisory air pressure
C. Pressurize the fire pump room
D. Operate the alarm valve
Correct Answer: B
Rationale: The compressor maintains pressure to hold the dry valve closed until a sprinkler
opens.
4|Page
