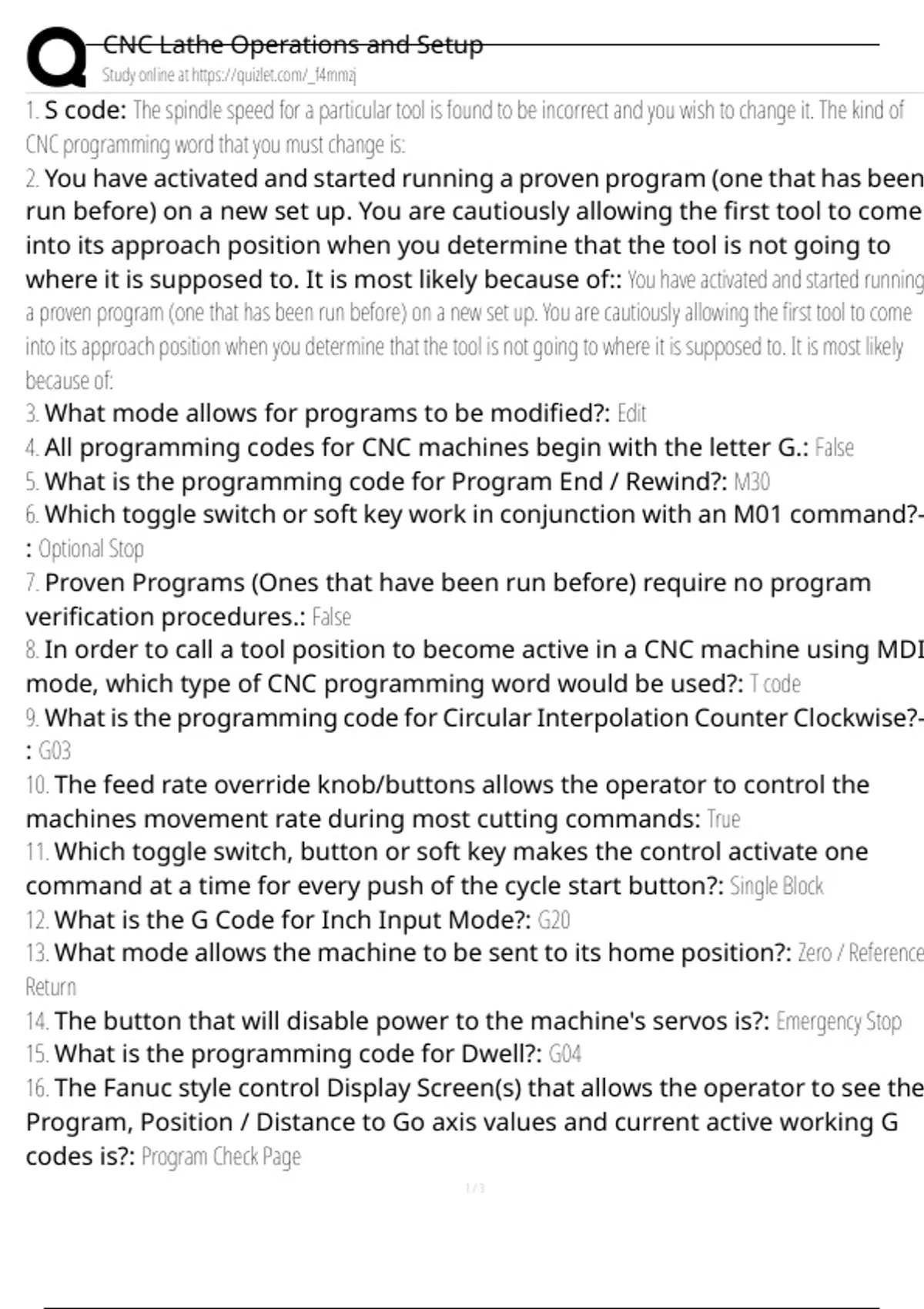

CNC Lathe Operations and Setup
Study online at https://quizlet.com/_f4mmzj
1. S code: The spindle speed for a particular tool is found to be incorrect and you wish to change it. The kind of
CNC programming word that you must change is:
2. You have activated and started running a proven program (one that has been
run before) on a new set up. You are cautiously allowing the �rst tool to come
into its approach position when you determine that the tool is not going to
where it is supposed to. It is most likely because of:: You have activated and started running
a proven program (one that has been run before) on a new set up. You are cautiously allowing the �rst tool to come
into its approach position when you determine that the tool is not going to where it is supposed to. It is most likely
because of:
3. What mode allows for programs to be modi�ed?: Edit
4. All programming codes for CNC machines begin with the letter G.: False
5. What is the programming code for Program End / Rewind?: M30
6. Which toggle switch or soft key work in conjunction with an M01 command?-
: Optional Stop
7. Proven Programs (Ones that have been run before) require no program
veri�cation procedures.: False
8. In order to call a tool position to become active in a CNC machine using MDI
mode, which type of CNC programming word would be used?: T code
9. What is the programming code for Circular Interpolation Counter Clockwise?-
: G03
10. The feed rate override knob/buttons allows the operator to control the
machines movement rate during most cutting commands: True
11. Which toggle switch, button or soft key makes the control activate one
command at a time for every push of the cycle start button?: Single Block
12. What is the G Code for Inch Input Mode?: G20
13. What mode allows the machine to be sent to its home position?: Zero / Reference
Return
14. The button that will disable power to the machine's servos is?: Emergency Stop
15. What is the programming code for Dwell?: G04
16. The Fanuc style control Display Screen(s) that allows the operator to see the
Program, Position / Distance to Go axis values and current active working G
codes is?: Program Check Page
1/3
