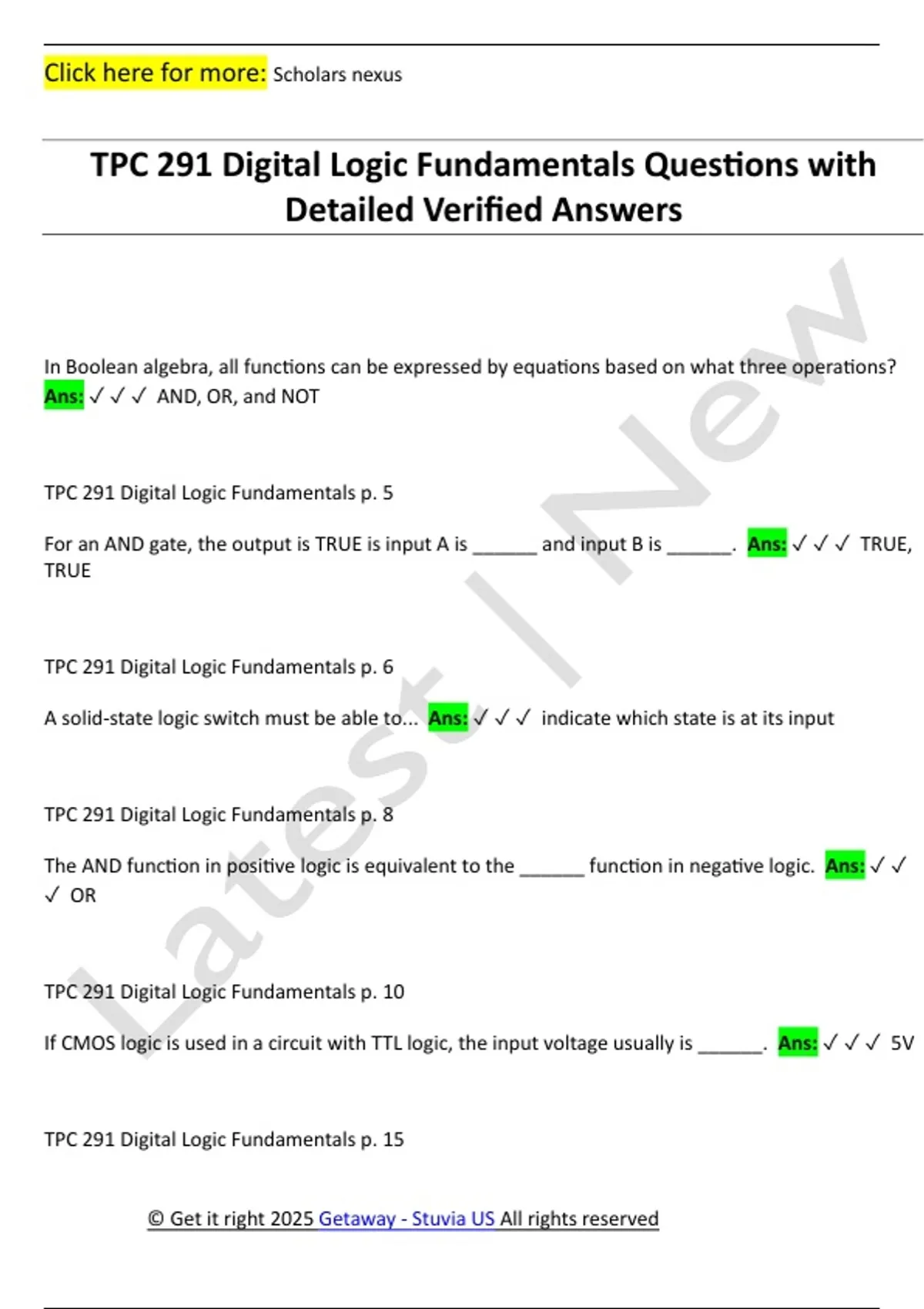

TPC 291 Digital Logic Fundamentals Questions with
Detailed Verified Answers
In Boolean algebra, all functions can be expressed by equations based on what three operations?
Ans: ✓ ✓ ✓ AND, OR, and NOT
TPC 291 Digital Logic Fundamentals p. 5
For an AND gate, the output is TRUE is input A is ______ and input B is ______. Ans: ✓ ✓ ✓ TRUE,
TRUE
TPC 291 Digital Logic Fundamentals p. 6
A solid-state logic switch must be able to... Ans: ✓ ✓ ✓ indicate which state is at its input
TPC 291 Digital Logic Fundamentals p. 8
The AND function in positive logic is equivalent to the ______ function in negative logic. Ans: ✓ ✓
✓ OR
TPC 291 Digital Logic Fundamentals p. 10
If CMOS logic is used in a circuit with TTL logic, the input voltage usually is ______. Ans: ✓ ✓ ✓ 5V
TPC 291 Digital Logic Fundamentals p. 15
