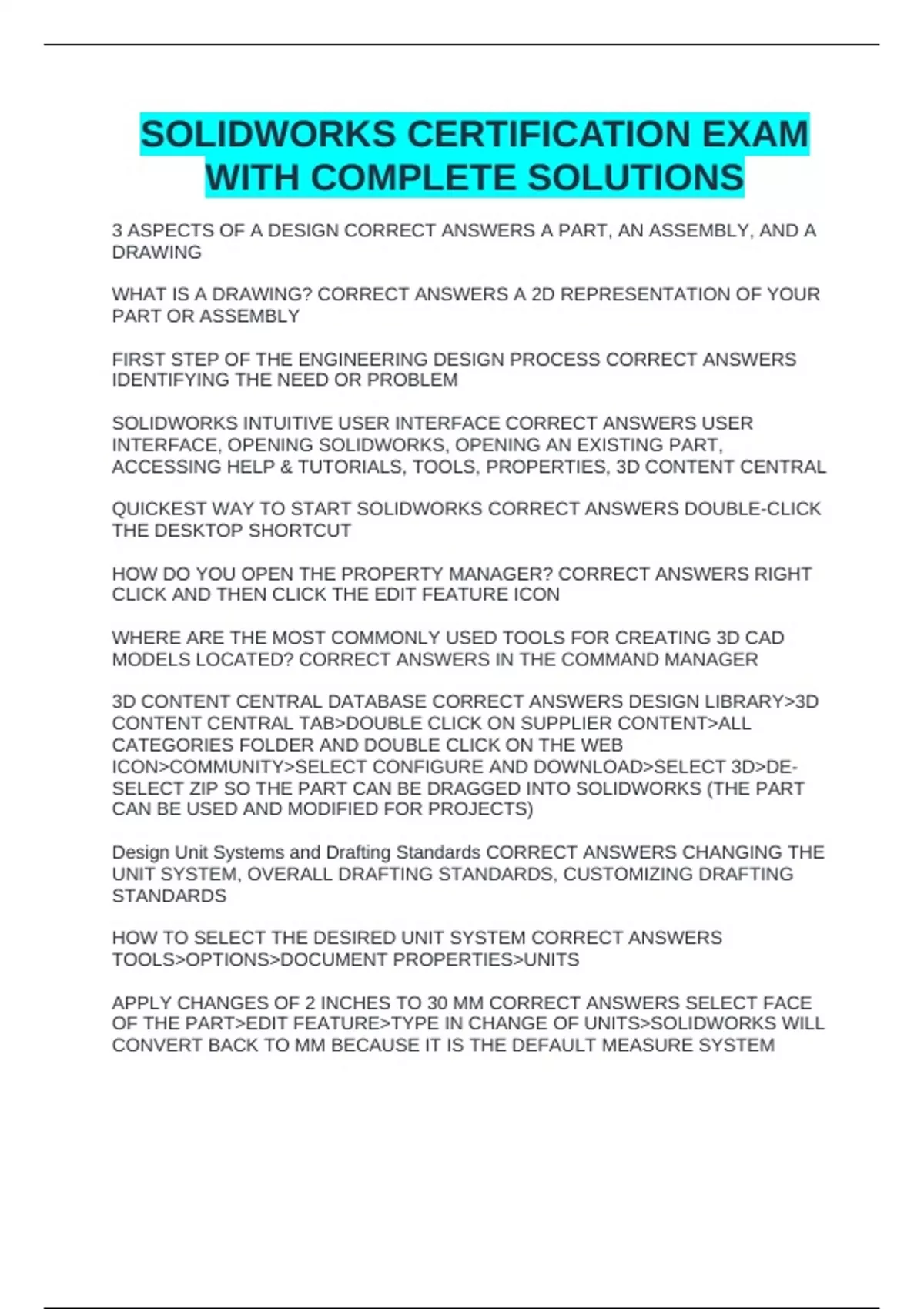

SOLIDWORKS CERTIFICATION EXAM WITH COMPLETE SOLUTIONS

SOLIDWORKS CERTIFICATION EXAM
WITH COMPLETE SOLUTIONS
3 ASPECTS OF A DESIGN CORRECT ANSWERS A PART, AN ASSEMBLY, AND A
DRAWING

WHAT IS A DRAWING? CORRECT ANSWERS A 2D REPRESENTATION OF YOUR
PART OR ASSEMBLY

FIRST STEP OF THE ENGINEERING DESIGN PROCESS CORRECT ANSWERS
IDENTIFYING THE NEED OR PROBLEM

SOLIDWORKS INTUITIVE USER INTERFACE CORRECT ANSWERS USER
INTERFACE, OPENING SOLIDWORKS, OPENING AN EXISTING PART,
ACCESSING HELP & TUTORIALS, TOOLS, PROPERTIES, 3D CONTENT CENTRAL

QUICKEST WAY TO START SOLIDWORKS CORRECT ANSWERS DOUBLE-CLICK
THE DESKTOP SHORTCUT

HOW DO YOU OPEN THE PROPERTY MANAGER? CORRECT ANSWERS RIGHT
CLICK AND THEN CLICK THE EDIT FEATURE ICON

WHERE ARE THE MOST COMMONLY USED TOOLS FOR CREATING 3D CAD
MODELS LOCATED? CORRECT ANSWERS IN THE COMMAND MANAGER

3D CONTENT CENTRAL DATABASE CORRECT ANSWERS DESIGN LIBRARY>3D
CONTENT CENTRAL TAB>DOUBLE CLICK ON SUPPLIER CONTENT>ALL
CATEGORIES FOLDER AND DOUBLE CLICK ON THE WEB
ICON>COMMUNITY>SELECT CONFIGURE AND DOWNLOAD>SELECT 3D>DE-
SELECT ZIP SO THE PART CAN BE DRAGGED INTO SOLIDWORKS (THE PART
CAN BE USED AND MODIFIED FOR PROJECTS)

Design Unit Systems and Drafting Standards CORRECT ANSWERS CHANGING THE
UNIT SYSTEM, OVERALL DRAFTING STANDARDS, CUSTOMIZING DRAFTING
STANDARDS

HOW TO SELECT THE DESIRED UNIT SYSTEM CORRECT ANSWERS
TOOLS>OPTIONS>DOCUMENT PROPERTIES>UNITS

APPLY CHANGES OF 2 INCHES TO 30 MM CORRECT ANSWERS SELECT FACE
OF THE PART>EDIT FEATURE>TYPE IN CHANGE OF UNITS>SOLIDWORKS WILL
CONVERT BACK TO MM BECAUSE IT IS THE DEFAULT MEASURE SYSTEM
