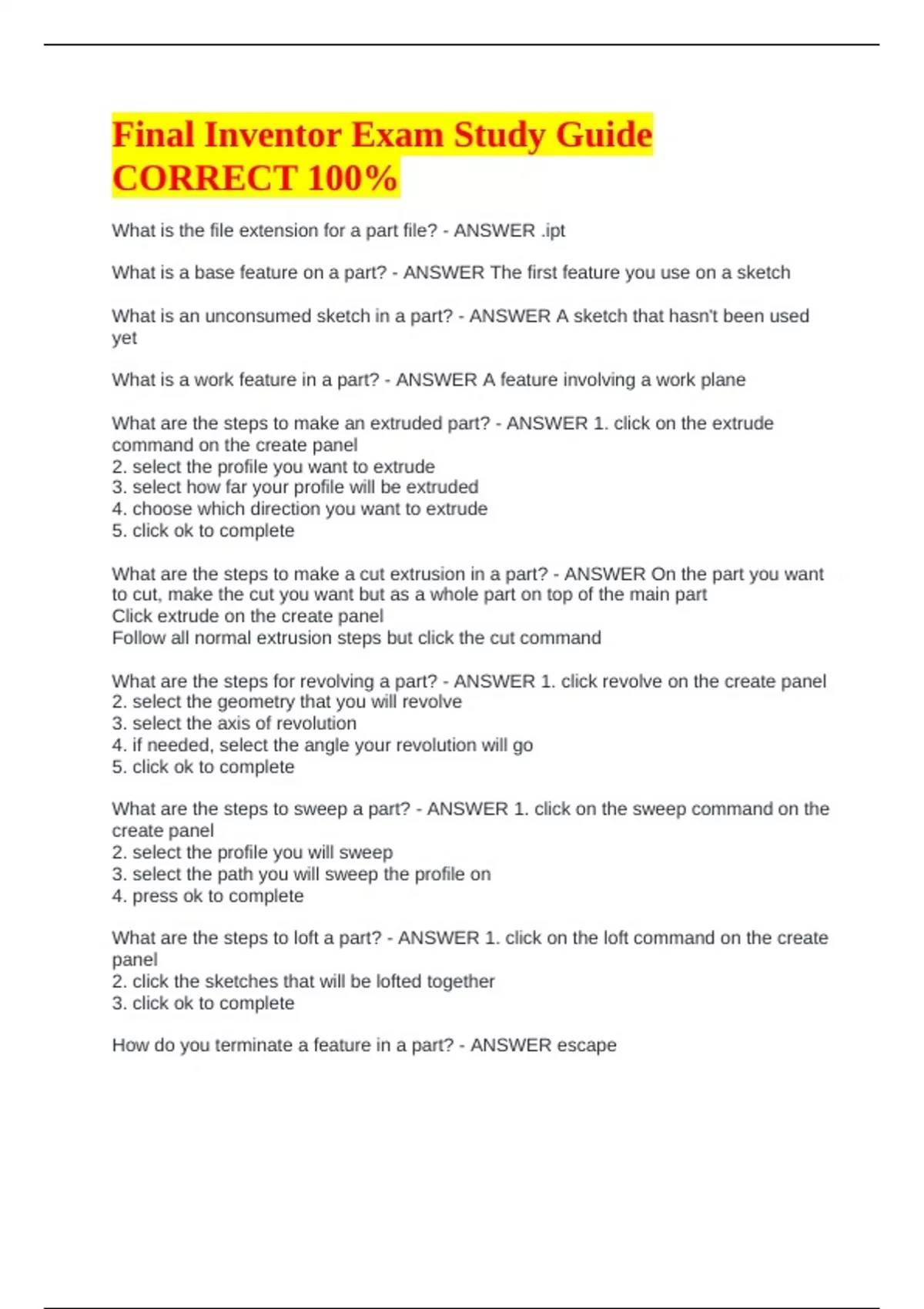

Final Inventor Exam Study Guide
CORRECT 100%
What is the file extension for a part file? - ANSWER .ipt
What is a base feature on a part? - ANSWER The first feature you use on a sketch
What is an unconsumed sketch in a part? - ANSWER A sketch that hasn't been used
yet
What is a work feature in a part? - ANSWER A feature involving a work plane
What are the steps to make an extruded part? - ANSWER 1. click on the extrude
command on the create panel
2. select the profile you want to extrude
3. select how far your profile will be extruded
4. choose which direction you want to extrude
5. click ok to complete
What are the steps to make a cut extrusion in a part? - ANSWER On the part you want
to cut, make the cut you want but as a whole part on top of the main part
Click extrude on the create panel
Follow all normal extrusion steps but click the cut command
What are the steps for revolving a part? - ANSWER 1. click revolve on the create panel
2. select the geometry that you will revolve
3. select the axis of revolution
4. if needed, select the angle your revolution will go
5. click ok to complete
What are the steps to sweep a part? - ANSWER 1. click on the sweep command on the
create panel
2. select the profile you will sweep
3. select the path you will sweep the profile on
4. press ok to complete
What are the steps to loft a part? - ANSWER 1. click on the loft command on the create
panel
2. click the sketches that will be lofted together
3. click ok to complete
How do you terminate a feature in a part? - ANSWER escape
, What are the steps to create a hole in a part? - ANSWER 1. click on the hole command
on the modify panel
2. choose which point the hole will be on
3. click what kind of hole you want
4. choose the diameter and depth of the hole or more dimensions depending on the
type of hole
5. click ok to complete
What are the 4 types of holes in a part? - ANSWER Drilled holes
Counterbore holes
Spotface holes
Countersink holes
What are the steps to fillet a feature in a part? - ANSWER 1. click on the fillet command
on the modify panel
2. click on which edge or edges you would like to fillet
3. select the radius of the fillet
4. click ok to complete
What are the steps to chamfer a feature in a part? - ANSWER Click on the chamfer
command on the modify panel
Click on the chamfer option you want
Select which edges you would like to chamfer (or faces depending on the option)
Add necessary dimensions depending on which chamfer option you want
Click ok to complete
What are the 3 chamfer options in a part? - ANSWER Distance
Distance and angle
Two distances
What are the steps to shell a feature in a part? - ANSWER 1. click on the shell
command on the modify panel
2. Specify the dimension of the wall if necessary
3. Select which face you would like to remove
4. click ok to complete
What are the steps to thread a feature in a part? - ANSWER 1. Click on the Thread
command located on the modify panel
2. select the face that the thread will be applied to
3. offset or dimension the thread if necessary
4. click ok to complete
What is the use of a work plane in part creation work flow? - ANSWER It lets you make
a work plane when one is not available on the part.
CORRECT 100%
What is the file extension for a part file? - ANSWER .ipt
What is a base feature on a part? - ANSWER The first feature you use on a sketch
What is an unconsumed sketch in a part? - ANSWER A sketch that hasn't been used
yet
What is a work feature in a part? - ANSWER A feature involving a work plane
What are the steps to make an extruded part? - ANSWER 1. click on the extrude
command on the create panel
2. select the profile you want to extrude
3. select how far your profile will be extruded
4. choose which direction you want to extrude
5. click ok to complete
What are the steps to make a cut extrusion in a part? - ANSWER On the part you want
to cut, make the cut you want but as a whole part on top of the main part
Click extrude on the create panel
Follow all normal extrusion steps but click the cut command
What are the steps for revolving a part? - ANSWER 1. click revolve on the create panel
2. select the geometry that you will revolve
3. select the axis of revolution
4. if needed, select the angle your revolution will go
5. click ok to complete
What are the steps to sweep a part? - ANSWER 1. click on the sweep command on the
create panel
2. select the profile you will sweep
3. select the path you will sweep the profile on
4. press ok to complete
What are the steps to loft a part? - ANSWER 1. click on the loft command on the create
panel
2. click the sketches that will be lofted together
3. click ok to complete
How do you terminate a feature in a part? - ANSWER escape
, What are the steps to create a hole in a part? - ANSWER 1. click on the hole command
on the modify panel
2. choose which point the hole will be on
3. click what kind of hole you want
4. choose the diameter and depth of the hole or more dimensions depending on the
type of hole
5. click ok to complete
What are the 4 types of holes in a part? - ANSWER Drilled holes
Counterbore holes
Spotface holes
Countersink holes
What are the steps to fillet a feature in a part? - ANSWER 1. click on the fillet command
on the modify panel
2. click on which edge or edges you would like to fillet
3. select the radius of the fillet
4. click ok to complete
What are the steps to chamfer a feature in a part? - ANSWER Click on the chamfer
command on the modify panel
Click on the chamfer option you want
Select which edges you would like to chamfer (or faces depending on the option)
Add necessary dimensions depending on which chamfer option you want
Click ok to complete
What are the 3 chamfer options in a part? - ANSWER Distance
Distance and angle
Two distances
What are the steps to shell a feature in a part? - ANSWER 1. click on the shell
command on the modify panel
2. Specify the dimension of the wall if necessary
3. Select which face you would like to remove
4. click ok to complete
What are the steps to thread a feature in a part? - ANSWER 1. Click on the Thread
command located on the modify panel
2. select the face that the thread will be applied to
3. offset or dimension the thread if necessary
4. click ok to complete
What is the use of a work plane in part creation work flow? - ANSWER It lets you make
a work plane when one is not available on the part.
