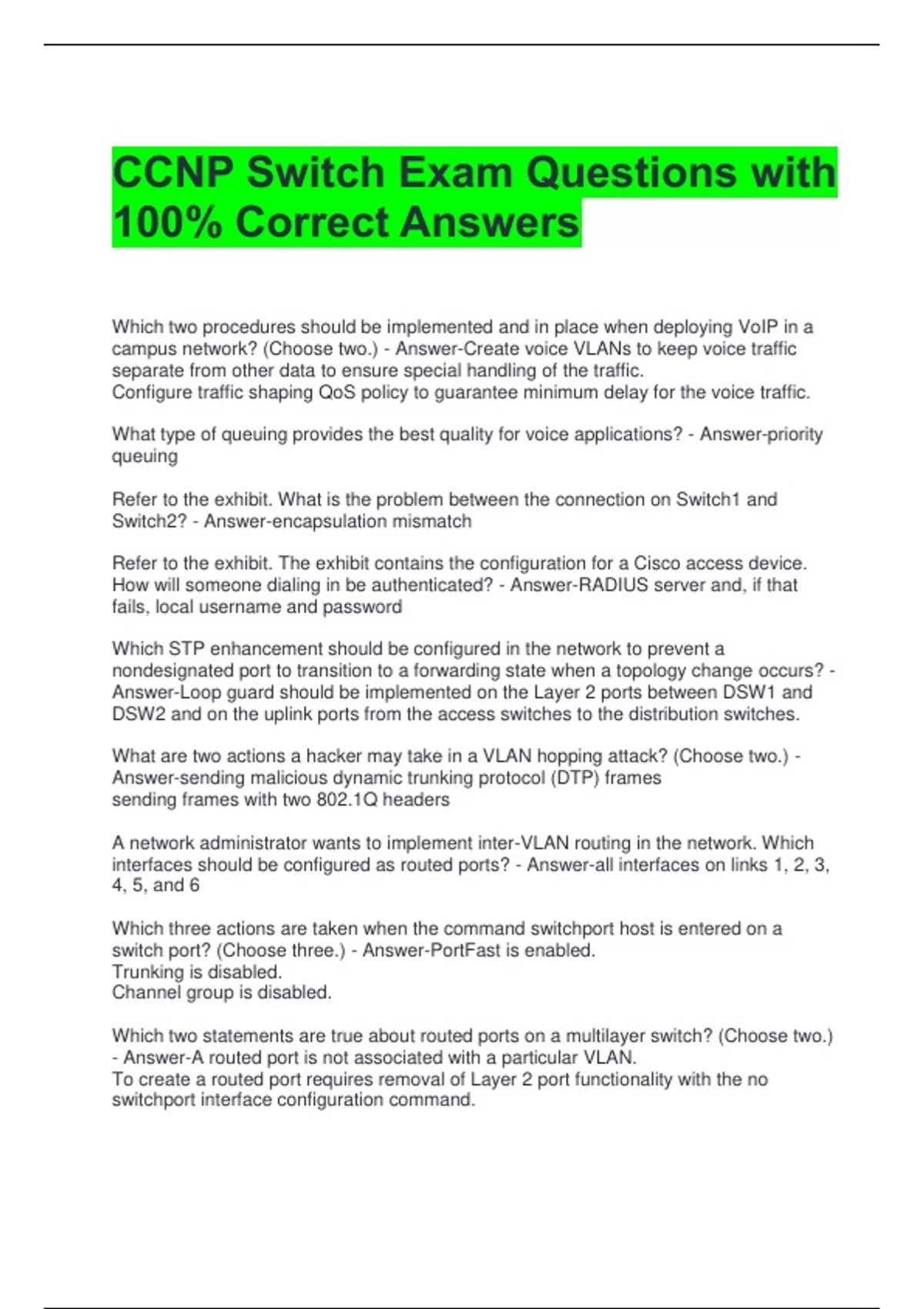

CCNP Switch Exam Questions with
100% Correct Answers
Which two procedures should be implemented and in place when deploying VoIP in a
campus network? (Choose two.) - Answer-Create voice VLANs to keep voice traffic
separate from other data to ensure special handling of the traffic.
Configure traffic shaping QoS policy to guarantee minimum delay for the voice traffic.
What type of queuing provides the best quality for voice applications? - Answer-priority
queuing
Refer to the exhibit. What is the problem between the connection on Switch1 and
Switch2? - Answer-encapsulation mismatch
Refer to the exhibit. The exhibit contains the configuration for a Cisco access device.
How will someone dialing in be authenticated? - Answer-RADIUS server and, if that
fails, local username and password
Which STP enhancement should be configured in the network to prevent a
nondesignated port to transition to a forwarding state when a topology change occurs? -
Answer-Loop guard should be implemented on the Layer 2 ports between DSW1 and
DSW2 and on the uplink ports from the access switches to the distribution switches.
What are two actions a hacker may take in a VLAN hopping attack? (Choose two.) -
Answer-sending malicious dynamic trunking protocol (DTP) frames
sending frames with two 802.1Q headers
A network administrator wants to implement inter-VLAN routing in the network. Which
interfaces should be configured as routed ports? - Answer-all interfaces on links 1, 2, 3,
4, 5, and 6
Which three actions are taken when the command switchport host is entered on a
switch port? (Choose three.) - Answer-PortFast is enabled.
Trunking is disabled.
Channel group is disabled.
Which two statements are true about routed ports on a multilayer switch? (Choose two.)
- Answer-A routed port is not associated with a particular VLAN.
To create a routed port requires removal of Layer 2 port functionality with the no
switchport interface configuration command.
, Refer to the exhibit. Assuming that the switch is running Multiple Spanning Tree (MST),
which conclusion can be made based on the output? - Answer-MST will require fewer
resources than PVST+ or PVRST+.
Refer to the exhibit. Switches DSw1 and DSw2 are configured with the HSRP virtual IP
address 10.10.10.1, and standby priority is set to 100. Assume both switches finish
booting at the same time and HSRP is operating as expected. On the basis of this
information, which three HSRP statements are true? (Choose three.) - Answer-If the
DSw1 and DSw2 switches have been configured to preempt, then DSw2 will be the
active router.
The HSRP group number in this HSRP configuration is HSRP group number 50.
The standby track command is useful for tracking interfaces that are not configured for
HSRP.
What is the recommended maximum one-way jitter when implementing video over IP for
real-time video applications? - Answer-10ms
Which two items in the TCAM table are referenced in the process of forwarding a
packet? (Choose two.) - Answer-ACL information
QoS information
Refer to the exhibit. Based on the provided show ip dhcp snooping command, which
statement is true? - Answer-Only port Fa0/24 can send and receive all DHCP
messages.
Catalyst Catalyst 6500 switches support which three Supervisor Engine redundancy
features? (Choose three.) - Answer-Route Processor Redundancy+ (RPR+)
Stateful Switchover (SSO)
Nonstop Forwarding (NSF)
Which two statements are true about the default operation of STP in a Layer 2 switched
environment that has redundant connections between switches? (Choose two.) -
Answer-Decisions on which port to block when two ports have equal cost depend on the
port priority and index.
Nonroot switches each have only one root port.
Which benefit is provided by centralizing servers in a data center server farm? -
Answer-It is easier to filter and prioritize traffic to and from the data center.
What are three possible misconfigurations or indicators of misconfigurations on a Layer
3 interface? (Choose three.) - Answer-wrong IP address or subnet mask
downed SVI
ACL on wrong interface
